Graphtec Plotter

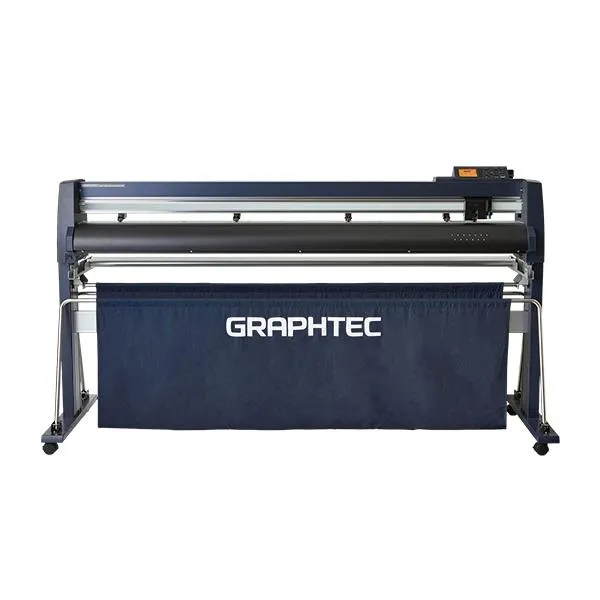

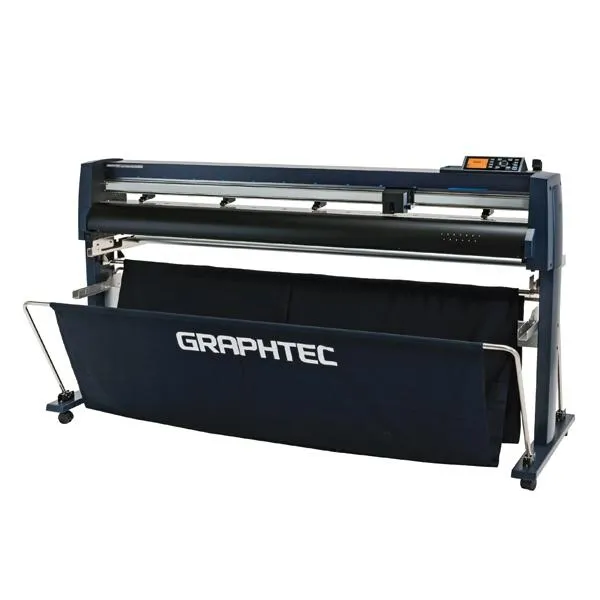

Graphtec Chennai, FC9000 Chennai, 160 Chennai, Cutting Chennai, Plotter Chennai, 140 Chennai, 100 Chennai, 75 Chennai, , Brand: GraphtecModel No: FC9000 160 Cutting PlotterConfiguration: Grit rolling typeDrive method: Digital servo driveMax. cutting area (W x L) (*1): 1626mm × 50mCutting area of guaranteed accuracy (*1): 1607mm × 10m 894mm × 15mMountable media width (*2): Min. 50mmMountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)Mountable roll media mass: 24kgMaximum cross cut width : 1626mmMax. cutting speed: 1485mm/s at 45° directionAxial acceleration: Max. 39.2m/s2 at 45° directionCutting force: Max. 5.88N (600gf)Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)Mechanical resolution: 0.005mmRepeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)Number of push rollers: 4 rollersMountable number of tools: 1 tool (mountable 2 tools (option))Blade types: SupersteelPen types: Oil-based ballpoint pen, Water-based fiber-tip penDisplay: Graphic type LCD with back-light (240dots × 128dots), supports 10 languagesInterface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TXBuffer memory: 2MBPower source: 100 V to 240 V AC, 50 / 60 HzPower consumption: Max. 120 WOperating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)External dimensions (W × D × H): 2224?1151?1232 mmWeight: 70 kgBrand: GraphtecModel No: FC9000 140 Cutting PlotterConfiguration: Grit rolling typeDrive method: Digital servo driveMax. cutting area (W x L) (*1): 1372mm × 50mCutting area of guaranteed accuracy (*1): 1352mm × 10m 894mm × 15mMountable media width (*2): Min. 50mmMountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)Mountable roll media mass: 20kgMaximum cross cut width : 1372mmMax. cutting speed: 1485mm/s at 45° directionAxial acceleration: Max. 39.2m/s2 at 45° directionCutting force: Max. 5.88N (600gf)Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)Mechanical resolution: 0.005mmRepeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)Number of push rollers: 4 rollersMountable number of tools: 1 tool (mountable 2 tools (option))Blade types: SupersteelPen types: Oil-based ballpoint pen, Water-based fiber-tip penDisplay: Graphic type LCD with back-light (240dots × 128dots), supports 10 languagesInterface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TXBuffer memory: 2MBPower source: 100 V to 240 V AC, 50 / 60 HzPower consumption: Max. 120 WOperating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)External dimensions (W × D × H): 1970?1151?1232 mmWeight: 64 kgBrand: GraphtecModel No: FC9000 100 Cutting PlotterConfiguration: Grit rolling typeDrive method: Digital servo driveMax. cutting area (W x L) (*1): 1067mm × 50mCutting area of guaranteed accuracy (*1): 1047mm × 10m 762mm × 15mMountable media width (*2): Min. 50mmMountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)Mountable roll media mass: 16kgMaximum cross cut width : 1067mmMax. cutting speed: 1485mm/s at 45° directionAxial acceleration: Max. 39.2m/s2 at 45° directionCutting force: Max. 5.88N (600gf)Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)Mechanical resolution: 0.005mmRepeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)Number of push rollers: 3 rollersMountable number of tools: 1 tool (mountable 2 tools (option))Blade types: SupersteelPen types: Oil-based ballpoint pen, Water-based fiber-tip penDisplay: Graphic type LCD with back-light (240dots × 128dots), supports 10 languagesInterface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TXBuffer memory: 2MBPower source: 100 V to 240 V AC, 50 / 60 HzPower consumption: Max. 120 WOperating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)External dimensions (W × D × H): 1665?1151?1232 mmWeight: 56 kgBrand: GraphtecModel No: FC9000 75 Cutting PlotterConfiguration: Grit rolling typeDrive method: Digital servo driveMax. cutting area (W x L) (*1): 762mm × 50mCutting area of guaranteed accuracy (*1): 742mm × 15mMountable media width (*2): Min. 50mmMountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)Mountable roll media mass: 12kgMaximum cross cut width : 762mmMax. cutting speed: 1485mm/s at 45° directionAxial acceleration: Max. 39.2m/s2 at 45° directionCutting force: Max. 5.88N (600gf)Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)Mechanical resolution: 0.005mmRepeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)Number of push rollers: 2 rollersMountable number of tools: 1 tool (mountable 2 tools (option))Blade types: SupersteelPen types: Oil-based ballpoint pen, Water-based fiber-tip penDisplay: Graphic type LCD with back-light (240dots × 128dots), supports 10 languagesInterface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TXBuffer memory: 2MBPower source: 100 V to 240 V AC, 50 / 60 HzPower consumption: Max. 120 WOperating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)External dimensions (W × D × H): 1360?1151?1232 mmWeight: 49 kg Chennai
