Brand: Graphtec

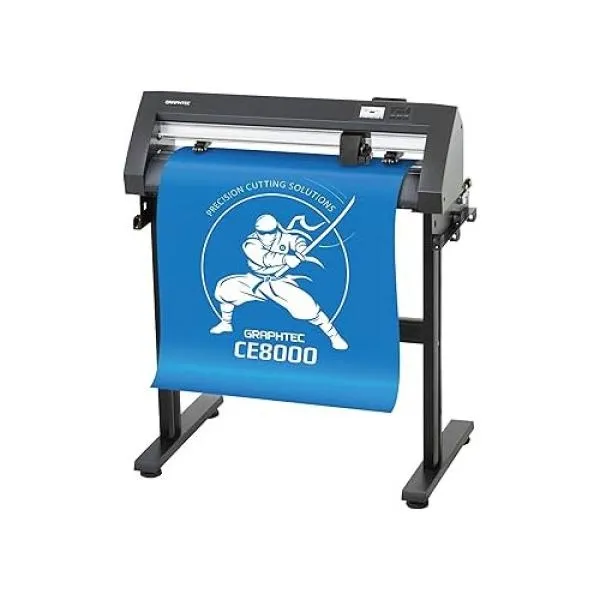

Model No: Graphtec CE8000 60 Cutting Plotter
Cutter type: Grit rolling type
Drive system: Digital servo drive
Max. cutting area (W x L) (*1): 603mm × 50m
Accuracy guaranteed cutting area (W x L)when using basket: 583mm × 2m(583mm × 5m)
Mountable media width: Min-50mm, Max-712mm (28inch)
Mountable roll media weight: 9kg
Number of push rollers: 2
Max. cutting speed: 90cm/s (45°direction)
Max. acceleration: 21.2m/s2 (45°direction)
Cutting force: 4.41N (450gf)
Min. Character size: Alphanumeric: approx. 5mm (varies depending on font and media)
Mechanical step size: 0.005mm
Programmable step size: GP-GL: 0.1 / 0.05 / 0.025 / 0.01mm, HP-GLTM (*2): 0.025mm
Repeatability: Max. 0.1mm in plot up to 2m (Excluding media expansion and contraction)
Installable number of tools: 1
Blade types: Supersteel
Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
Media types: Max. 0.25mm thickness Marking film (PVC / fluorescent / reflective), *High intensity reflective sheet is not supported
Interface: USB2.0 (Full Speed), Wireless LAN IEEE 802.11b/g/n, Ethernet 10 BASE-T/100BASE-TX (*3)
Buffer memory: 2MB
Command sets: GP-GL / HP-GL™ (Set by command or auto-detect)
LCD display: Touch panel (240-dot × 128-dot)
Power source: AC100-120V, AC200-240V, 50/60Hz (auto-switchover)
Power consumption: Max. 140W
Operating environment: 10 – 35? , 35 – 75? R.H. (non-condensing)
Accuracy guaranteed environment: 16 – 32? , 35 – 70? R.H. (non-condensing)
External dimensions(W x D x H)including stand: 903 × 582 × 1076mm
