Lenovo ThinkSystem SD665N V3 Full Wide 1U Tray Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD665N V3 Server
• Form Factor: Full-wide 1U tray; 1 node+GPUs per tray
• Chassis: DW612S Enclosure (6U)
• Processor Structure: 1x or 2x 4th Generation AMD EPYC Processors per node
• RAM : Up to 3.0TB using 24x 128GB 4800 MHz TruDDR5 RDIMM slots per tray
• I/O Expansion: NVIDIA ConnectX-7 4-chip VPI PCIe Gen5 Mezz Board for GPUdirect I/O
• Acceleration: NVIDIA HGX H100 4-GPU with 4x NVLink connected SXM5 GPUs
• Storage: Up to 2x 2.5 NVMe SSDs (7mm height) or 1x 2.5 NVMe SSDs (15mm height) per node, Up to 1x liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
• RAID Support: OS Software RAID
• Network Interfaces: Two onboard Ethernet interfaces: 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) and 1x 1GbE RJ45 (supports NC-SI)
• Power Management: Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
• Systems Management: Systems management using Lenovo HPC&AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure, supports daisy chaining to reduce cabling requirements
• Front access: All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
• Rear access: 2x RJ45 on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
• Power Supply: Up to 9x hot-swap air-cooled power supplies (2400W Platinum, 2600W Titanium), or Up to 3x hot-swap direct-water-cooled power supplies (7200W Titanium) Supports up to N+1 redundancy
• Cooling Design: Direct Water Cooling at the heat source with up to 45C inlet water temperature
• OS Support: Red Hat, SUSE, Rocky Linux (with LeSI support); Visit lenovopress.com/osig for more information.
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SD650N V3 Full Wide 1U Tray Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD650N V3 Server
• Form Factor: Full-wide 1U tray; 1 node+GPUs per tray
• Chassis: DW612S Enclosure (6U)
• Processor Structure: Two 5th Gen Intel Xeon Scalable processors per tray, or 2x Intel Xeon CPU Max Series processors per tray
• RAM: Up to 2TB using 16x 128GB 5600MHz TruDDR5 RDIMM slots per tray
• I/O Expansion: NVIDIA ConnectX-7 4-chip VPI PCIe Gen5 Mezz Board for GPUdirect I/O
• Acceleration: NVIDIA HGX H100 4-GPU with 4x NVLink connected SXM5 GPUs
• Storage: Up to 2x 2.5 NVMe SSDs (7mm height) or 1x 2.5 NVMe SSDs (15mm height) per node, Up to 1x liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
• RAID Support: OS Software RAID
• Network Interfaces: Two onboard Ethernet interfaces: 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) and 1x 1GbE RJ45 (supports NC-SI)
• Power Management: Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
• Systems Management: Systems management using Lenovo HPC&AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure, supports daisy chaining to reduce cabling requirements
• Front Access: All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
• Rear Access: 2x RJ45 on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
• Power Supply: Up to 9x hot-swap air-cooled power supplies (2400W Platinum, 2600W Titanium), or Up to 3x hot-swap direct-water-cooled power supplies (7200W Titanium) Supports up to N+1 redundancy
• Cooling Design: Direct Water Cooling at the heat source with up to 45C inlet water temperature
• OS Support: Red Hat, SUSE, Rocky Linux (with LeSI support); Visit: lenovopress.com/osig for more information.
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SD665 V3 Full Wide 1U Tray Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD665 V3 Server
• Form Factor: Full-wide 1U tray; 2 nodes per tray
• Chassis: DW612S Enclosure (6U)
• Processors Structure: 2x 4th Generation AMD EPYC Processors per node
• RAM: Up to 3.0TB using 24x 128GB 4800 MHz TruDDR5 RDIMM slots per tray
• I/O Expansion: Up to 2x PCIe Gen5 x16 low-profile adapter slots (2x supported without internal storage) per node for NDR InfiniBand. Shared I/O and SocketDirect supported.
• Internal Storage: Up to 4x 2.5-inch NVMe SSDs (7mm height) or 2x 2.5-inch NVMe SSDs (15mm height) per node; up to 1x liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
• RAID Support: OS Software RAID
• Network Interfaces: Two onboard Ethernet interfaces: 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) and 1x 1GbE RJ45 (supports NC-SI)
• Power Management: Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
• Systems Management: Systems management using Lenovo HPC&AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure, supports daisy chaining to reduce cabling requirements
• Front Access: All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
• Rear Access: 2x RJ45 on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
• Power Supply: Up to 9x hot-swap air-cooled power supplies (2400W Platinum, 2600W Titanium), or Up to 3x hot-swap direct-water-cooled power supplies (7200W Titanium)Supports up to N+1 redundancy
• Cooling Design: Direct Water Cooling at the heat source with up to 50C inlet water temperature
• OS Support: Red Hat, SUSE, Rocky Linux (with LeSI support); Visit lenovopress.com/osig for more information.
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SD650I V3 6U Rack Mount Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD650I V3 High Density Server
• Form Factor/Height: 6U rack-mount with 6 trays
• Processor Structure: 2x 4th Gen Intel Xeon Scalable processors per tray or 2x Intel Xeon CPU Max processors per tray
• Ram: Up to 2.0TB using 16x 128GB 4800 MHz TruDDR5 RDIMMs per tray
• Storage: Up to 4x 7mm or 2x 15mm U.2/SATA, no drive/backplane choice and 1 x liquid cooled M.2 NVMe SSD, providing both the boot drive and storage function SW RAID and Intel VROC for Intel drives only
• NIC: 2 x SFP28 25Gb LOM, NCSI (10Gb capable); 1x RJ45 1GbE, NCSI
• PCIe: 2x x16 PCIe Gen5 LP per tray
• Power Supply: Up to 9x air CFF v4 (2400W PT, 2600W TT); Up to 3x Direct Water Cooled Power Supply (7200W) 80+ Titanium
• Cooling System: Direct Water Cooling with up to 50C inlet water temperature
• Management: Lenovo XClarity Controller (XCC) and Lenovo Intelligent Computing Orchestration (LiCO)
• OS Support: Red Hat Enterprise Linux, SUSE Linux Enterprise Server
• Acceleration: Four Intel Data Center GPU Max <=600W TDP
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SD650 V3 Full Wide 1U Tray Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD650 V3 High-Density Server
• Form Factor: Full Wide 1U Tray (two SD650 V3 nodes per tray, six per DW612S Enclosure)
• Chassis: DW612S Enclosure (6U)
• Processors Structure: Two 4th Gen Intel Xeon Scalable processors per node, or 2x 4th Gen Intel Xeon CPU Max series processors with HBM per node; 2x nodes per 1U tray
• RAM : Up to 2.0TB using 16x 128GB 4800 MHz per node
• I/O Expansion: Up to 2x PCIe Gen5 x16 low-profile adapter slots (2x supported without internal storage) per node for NDR InfiniBand. Shared I/O and SocketDirect supported.
• Internal Storage: Up to 4x 2.5 SATA/NVMe SSDs (7mm height) or 2x 2.5 NVMe SSDs (15mm height) per node; up to 1x liquid cooled M.2 NVMe SSD for both operating system boot and storage functions
• RAID Support: Onboard SATA controller with SW RAID or Intel VROC
• Network Interface: Two onboard Ethernet interfaces: 2x 25GbE SFP28 LOM (1Gb, 10Gb or 25Gb capable; supports NC-SI) and 1x 1GbE RJ45 (supports NC-SI)
• Power Management: Rack-level power capping and management via open-source management software Confluent and application-level energy optimization through Energy Aware Runtime (EAR)
• Systems Management: Systems management using Lenovo HPC&AI Software stack with Lenovo Intelligent Computing Orchestration (LiCO) portal and XClarity Controller (XCC). Supports TPM 2.0 for advanced cryptographic functionality. SMM management module in the enclosure, supports daisy chaining to reduce cabling requirements
• Front access: All adapters and drives are accessible from the front of the server. Front ports include KVM breakout connector and External Diagnostics Handset port for local management.
• Rear access: 2x RJ45 on the SMM management module in the enclosure for XCC with daisy chain support; USB 2.0 for SMM FFDC log collection
• Power Supply: Up to 9x air CFF v4 (2400W PT, 2600W TT) ; Up to 3x Direct Water Cooled Power Supply (7200W) 80+ Titanium; N+1 redundancy (only air-cooled / without acceleration on DWC)
• Cooling Design: Direct Water Cooling at the heat source with up to 45C inlet water temperature
• OS Support: Red Hat, SUSE, Rocky Linux (with LeSI support); Visit  lenovopress.com/osig for more information.
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SD650N V2 6U Rack Mount Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SD650N V2 High Density Server
• Form Factor/Height: 6U rack Mount With 6 trays
• Processor Structure: 2x 3rd Gen Intel Xeon Scalable processors per node
• Memory: Up to 2.0TB using 16x 128GB 3200MHz TruDDR4 RDIMMs per tray
• Storage: 2x 2.5-inch slim SATA / NVMe U.2 SSD and 2x M.2 SATA SSD SW RAID and Intel VROC for Intel drives only
• NIC: 1x SFP28 25Gb LOM, NCSI 1x RJ45 1GbE, NCSI
• PCIe: 2x x16 PCIe Gen4 LP per tray
• Power Supply: 6/9 N+1 redundant hot-swap PSUs (up to 2400W Platinum)
• Cooling System: Direct Water Cooling with up to 50C inlet water temperature
• Management: Lenovo XClarity Controller (XCC) and Lenovo Intelligent Computing Orchestration (LiCO)
• OS Support: Red Hat Enterprise Linux, SUSE Linux Enterprise Server Tested on CentOS
• Acceleration: NVIDIA HGX A100 4-GPU with 4x NVLink connected SXM4 GPUs
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SR860 V3 4th Gen Intel Xeon 4U Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SR860 V3 Mission Critical Server
• Form Factor: 4U Rack
• Processor Structure: Two or four 4th Gen Intel Xeon Scalable processors, up to 350W Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators
• GPU Support: Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs
• Memory: Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz.
• Drive Bays: Up to 48x 2.5 drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
• Expansion: Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots
• Front: VGA, 1x USB 3.1, 1x USB 2.0
• Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
• Network Interface: 2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE
• HBA/RAID Support: Support for ThinkSystem PCIe RAID/HBA cards
• Power Supply: Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
• High Availability: PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
• Security: Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
• System Management: Lenovo XClarity Controller; Redfish support
• OS Support: Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SR850 V3 4th Gen Intel Xeon 2U Server

• Sever Brand: Lenovo
• Server Product: ThinkSystem SR850 V3 Mission Critical Server
• Form Factor: 2U Rack
• Processor Structure: Two or four 4th Gen Intel Xeon Scalable processors, up to 350W Mesh topology with 3x UPI links With Up to 4x QAT, DLB, IAA and DSA Accelerators
• GPU Support: Up to 2x double-width 350W GPUs or 4x single-width 75W GPUs
• Memory: Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz
• Drive Bays: Up to 24x 2.5 drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot
• Expansion Slots: Up to 12x (8x Gen5 + 4x Gen4) or 7x (6x Gen5 + 1x Gen4) or 12x Gen4 or 9x Gen4 expansion slots
• Front: VGA, 1x USB 3.1, 1x USB 2.0
• Rear: 2x USB 3.1, optional Serial port, VGA port, 1GbE dedicated management port
• Network Interface: 2 Dedicated OCP 3.0 slots supporting 1GbE, 10GbE, 25GbE or 100GbE
• HBA/RAID Support: Support for ThinkSystem PCIe RAID/HBA cards
• Power: 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
• High Availability: PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional External Diagnostics Panel Handset with LCD display
• Security: Root of Trust (RoT) module includes Platform Firmware Resiliency (PFR), Trusted Platform Module (TPM) 2.0 or TCM for PRC and optional Chassis Intrusion Switch. Secures and authenticates the system to prevent unauthorized intrusion.
• System Management: Lenovo XClarity Controller; Redfish support
• OS Support: OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE360 V2 2U2N Enclosure Sever

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE360 V2 2U2N Enclosure
• Form Factor: 2U Rack Enclosure
• Variants: 2U2N Enclosure for Pure AC or Direct DC power.
• Rail Kits: 600mm Ball Bearing Rail Kit, 1000mm Friction Rail Kit, Friction 2-post Screw-in Rail Kit
• Optional Components: Shipping Bracket, Rack Dust Filter
• SE360 V2 mounted Range of ways: Desktop mount, Wall mount, Ceiling mount, DIN mount
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE350 V2 1U2N Enclosure Sever

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE350 V2 1U2N Enclosure
• Form Factor: 1U Rack Enclosure
• Variants: 1U2N Enclosure for AC with Internal PSU, 1U2N Enclosure for DC or AC with External PSU
• Rail Kits: Slide Rail Kit, Universal Short Rail Kit, Friction 2-post Screw-in Rail Kit
• Optional Components: Cable Management Arm for Slide Rail Kit, Shipping Bracket, Rack Dust Filter
• SE350 V2 mounted Range of ways: 2U2N Enclosure (short depth enclosure), Desktop mount, Wall mount, Ceiling mount, DIN mount
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE455 V3 AMD EPYCTM 8004 Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE455 V3 Server
• Form Factor: 2U height, short depth (440mm)
• Processor: 1x AMD EPYCTM 8004 Series Processor
• GPU Support: Up to 6 GPUs
• Memory: Up to 576GB in 6x slots using 96GB DIMMs
• Drive Bays: Up to 8x SATA/NVMe 2.5 15mm drives
• Expansion Slots: Up to 2x PCIe G5 x16 FHFL + 2x PCIe x8 FHFL + 2x PCIe G4 x8 FHHL + 1x PCIe G5 x16 OCP 3.0
• Systems Management: Lenovo XClarity Controller
• HBA/RAID Support: Optional HW RAID or HBA
• OS Support: Alma Linux, Citrix, Microsoft, Red Hat, Rocky Linux, SLES, Ubuntu, VMware Support levels vary: Visit lenovopress.com/osig for details.
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE350 E2 Enclosure Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE350 E2 Enclosure
• Form Factor: 1U or 2U Rack Enclosure
• Variants: 2U2N Enclosure with AC with External PSU, 1U2N Enclosure with -48V DC power
• Rail Kits: Universal Short Rail Kit, Friction 2-post Screw-in Rail Kit
• Optional Components: Shipping Bracket Rack Dust Filter
• SE350 mounted Range of ways: E1 Enclosure (short depth enclosure) , Desktop mount, Wall mount, Ceiling mount, DIN mount, Stacked mount, Bookshelf mount
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE350 E1 Enclosure Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE350 E1 Enclosure
• Form Factor: 1U Rack Enclosure
• Variants: E1 Enclosure for AC with External PSU
• Rail Kits: Slide Rail Kit
• Optional Components: Cable Management Arm for Slide Rail Kit, Shipping Bracket, Rack Dust Filter
• SE350 mounted Range of ways: E2 Enclosure (short depth enclosure) , Desktop mount, Wall mount, Ceiling mount, DIN mount, Stacked mount, Bookshelf mount
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE350 V2 2U2N Enclosure Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE350 V2 2U2N Enclosure
• Form Factor: 2U Rack Enclosure
• Variants: 2U2N Enclosure for AC with External PSU
• Rail Kits: Universal Short Rail Kit, Friction 2-post Screw-in Rail Kit
• Optional Components: Shipping Bracket, Rack Dust Filter
• SE350 V2 mounted Range of ways: 1U2N Enclosure (dense enclosure), Desktop mount, Wall mount, Ceiling mount, DIN mount
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE450 Edge 3rd Gen Intel Xeon Platinum 2U Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE450 Edge Server
• Form Factor: 2U Rack Server
• Processor: 1x 3rd Gen Intel Xeon Platinum processor, up to 36 cores, up to 225W TDP
• Drive Bays: Up to 6x 2.5-inch 7mm drives; Up to 6x NVMe drives supported; 2x M.2 boot drives (RAID 1)
• Memory: 10x DDR4 memory slots; Maximum 1TB using 8x 128GB 3DS RDIMMs; Supports up to 2x Intel Optane Persistent Memory 200 Series modules (PMem)
• Expansion Slots: Up to 4x PCIe 4.0 slots, 1x OCP 3.0 slot
• GPU Support: Up to 4x single-width GPUs or 2x double-width GPUs
• Network Interface: LOM adapter installed in the OCP 3.0 slot; PCIe adapters
• Ports: Front: 1x Power Button, 1x system locator, health with LED, 1x VGA, 2x USB 3.1, 1x Serial Port (optional), 1x RJ-45 1Gb for dedicated management, 1x system locator LED; Optional Wi-Fi (management)
• HBA/RAID Support: SW RAID standard; optional HW RAID or SAS HBA
• Power Supply:Dual redundant power supplies AC (up to 1800W Platinum) or Dual redundant power supplies -48V DC 1100W
• Systems Management: Lenovo XClarity Controller
• OS Support: Microsoft, Red Hat,Ubuntu, CentOS, VMware. Visit lenovopress.com/osig for details.
• Dimension: 300mm (11.8in) depth with 4x FHHL adapters; or 2U rack server 360mm (14.2in) depth with 4x FHFL adapters
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkEdge SE350 V2 Edge Intel Xeon 1U Server

• Sever Brand: Lenovo
• Server Product: ThinkEdge SE350 V2 Edge Server
• Form Factor: 1U height, half-width, and short-depth
• Processor: 1x Intel Xeon D-2700
• GPU Support: No
• Memory: up to 256GB in 4x slots using 64GB DIMMs
• Drive Bays: 4x 7mm 2.5 / 2x 15mm 2.5 hot-swappable
• Expansion Slots: No
• RAID Support: RAID 0,1 for boot drives ; RAID 0, 1, 5, 10 for data drives
• Operating Systems: Microsoft Windows Server, SLES, Ubuntu, RHEL, VMware ESXi, vSAN. Visit lenovopress.lenovo.com/osig for details.
• Warranty:  3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem SE350 Intel Xeon D2123IT Server

• Sever Brand: Lenovo
• Server Product: Think Systems Edge Server SE350
• Processor Structure :Intel Xeon D-2123IT 4C 60W 2.20 GHzRAM :1 X 16GB Processor
• Hard Disk : Open Bay 2.5INCH Hot Swap  SAS/ SATA
• Raid  :ThinkSystem M.2 480GB Industrial A600i SATA SSD ThinkSystem SE350 M.2
• SATA/NVMe 4-bay Data Drive Enablement Kit Intel RSTe SATA controller embedded in the processor
• Management :Lenovo XClarity Enterprise
• Others: ThinkSystem SE350 10GbE SFP+ 2-Port 10/100/1GbE RJ45 2-Port Intel i350 2x240W AC adaptor
• Warranty : 3 years 24x7 4Hr Response + KYD

Lenovo ThinkEdge SE360 V2 Intel Xeon D2700 2U Server

• Sever Brand: Lenovo
• Server Product: Lenovo ThinkEdge SE360 V2 server
• Shape Factor: 2U height, half-width, and short-depth
• Processor Structure: 1x Intel Xeon D-2700
• GPU Support: up to 2 GPUs
• RAM : up to 256GB in 4x slots using 64GB DIMMs
• Drive Bays: Up to 2x SATA/NVMe 2.5 7mm drives HS
• Expansion Slots: 1x PCIe G4 x16 HHHL + 1x PCIe G4 x16 FHHL
• RAID Support: RAID 0,1 for boot drives ; RAID 0, 1, 5, 10 for data drives
• Operating Systems Support: Operating Systems Microsoft Windows Server, SLES, Ubuntu*, RHEL, VMware ESXi, vSAN. Visit lenovopress.lenovo.com/osig for details.
• Warranty:  year CRU & Onsite 9x5 Next Business Day (NBD)

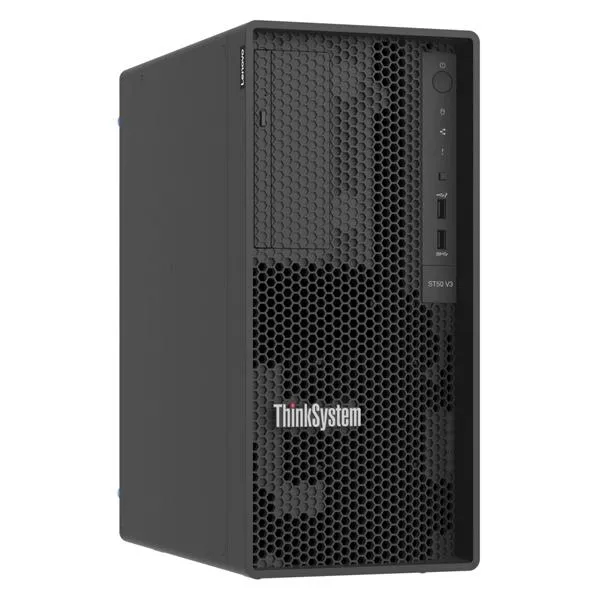

Lenovo ThinkSystem ST50 V3 SFF Tower Server

• Server Brand: Lenovo
• Server Product: : ThinkSystem ST50 V3 Tower Server
• Form Factor: Small Form Factor(SFF)
• Processor Structure: Intel Xeon E-2400 processor or Intel Pentium processor, up to 8 cores at 95W
• RAM: Up to 128GB in 4x DIMM slots using 32GB UDIMMs 4400MHz TruDDR5
• Drive Bays:  3 x 3.5 HDDs or SSDs, 2.5 SSD, 2 x M.2 SATA SSDs (PCIe adapter), Slim optical drive bay
• Expansion Slots: PCIe x16 slot with Gen5 x16 lanes, 2 x PCIe x4 slot with Gen4 x4 lanes
• HBA/RAID Support: Intel VROC software RAID support; additional hardware RAID configurations also supported
• Network Interface: 2x 1GbE Embedded (Broadcom BCM5720), 1GbE Dedicated Management port
• Front Port : USB-A (USB 5Gbps) port, USB 2.0 port (Support XCC management)
• Back Port: 4 x USB-A (5Gbps) ports , 2 x LAN 1 ports , Dedicated Management port , Serial port, VGA port , NMI button
• Systems Management & Security: Lenovo XClarity Controller 2 (XCC2), Root of Trust (RoT) module with integrated Platform Firmware Resiliency , Discrete Trusted Platform Module (dTPM) 2.0 chip support, Optional: Chassis intrusion switch
• Power Supply: Fixed power supply unit up to 500W with Platinum-level power efficiency
• Operating Systems Supported: Microsoft, SUSE , Red Hat, VMware vSphere, CentOS
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

Lenovo ThinkSystem ST650 V3 4U Tower Server

• Server Brand: Lenovo
• Server Product: : ThinkSystem ST650 V3 4U Tower Server
• Form Factor: 4U Tower Server
• Processors Structure: Up to 2x 5th Gen Intel Xeon Scalable processors, up to 250W
• Drive Bays: Up to 32x 2.5 bays (including 24 NVMe bays) or 16x 3.5 bays (including 16 NVMe bays)
• RAM: Up to 4TB in 32x DIMM slots using 128GB DIMMs; 5600MHz TruDDR5
• Expansion Slots: Up to 9x PCIe Slots (5x Gen 5 and 4x Gen 4)
• Network Interface: 2x 10GbE ports; 1x 1GbE dedicated management port
• Front Ports : 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support
• Rear Ports : 4 x USB; 1 x VGA, 1x COM port (Optional), 1x External LCD Diagnostics Handset Port (Optional)
• HBA/RAID Support: Onboard SATA and NVMe support with VROC RAID , PCIe Gen 3, Gen 4 and Gen 5 (when available) RAID/HBA adapters, Wide range of 8, 16 and 32 port RAID adapters, 8 and 16 port HBAs, NVMe Retimer adapters for additional 12x NVMe
• Power: Dual redundant AC power supplies up to 2600W Titanium. Energy Star 3.0 compliant, Systems Management: XClarity Controller with upgrades, Full XClarity software suite including XClarity Administrator, Optional intrusion switch and lockable door, Support for External Diagnostics Handset, Pluggable RoT Module
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
• Security: Lenovo ThinkShield, lockable security bezel, chassis intrusion switch, TPM 2.0
• Reliability: Reliability Predictive Failure Analysis, hot-swap/redundant drives, fans and power supplies
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

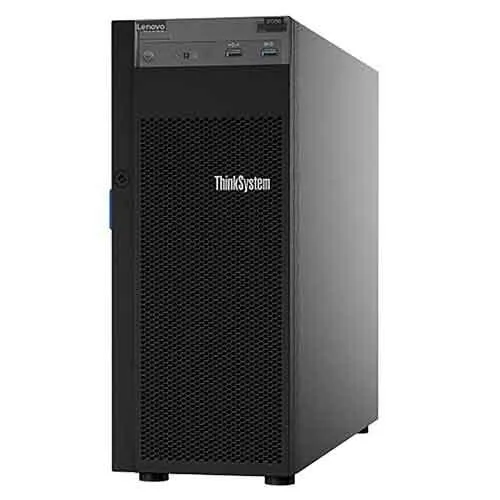

Lenovo ThinkSystem ST250 V2 4U 8Bays Tower Server

• Server Brand: Lenovo
• Server Product: : ThinkSystem ST250 V2 Tower Server
• Shape Factor: Height: 4U Tower Server
• Processor Structue: 1x Intel Xeon E-2300 Processor or 1x Intel Pentium processor, up to 8 cores at 95W
• RAM: Up to 128GB in 4x DIMM slots using 32GB UDIMMs 3200MHz TruDDR4
• Drive Bay: 8x 3.5-inch simple-swap SATA drives 7x 3.5-inch simple-swap SATA drives plus 1x 3.5-inch simple-swap NVMe drive 8x 3.5-inch hot-swap SAS/SATA drives 16x 2.5-inch hot-swap SAS/SATA drives Hybrid 4x 3.5-inch hot-swap + 8x 2.5-inch hot-swap SAS/SATA drives 2x 5.25-inch media bays (for optical drive or backup media) Optional M.2 mirroring kit (supports 2x SATA M.2 drives; installs in PCIe slot)
• Expansion Slots: Slot 1: PCIe x4 slot with PCIe Gen3 x4 lanes Slot 2: PCIe x16 slot with PCIe Gen4 x16 lanes Slot 3: PCIe x4 slot with PCIe Gen3 x4 lanes Slot 4: PCIe x8 slot with PCIe Gen3 x4 lanes
• HBA/RAID Support: Intel VROC Software RAID support with both simple-swap and hot-swap configuration; multiple hardware RAID configurations supported
• Network Interface: 2x GbE on-board ports (Broadcom BCM5720); 1x GbE port dedicated for XCC management
• Ports: Front: 1x USB 3.2 G2 (10Gb) port, 1x USB 2.0 port for local management using the XCC Mobile app Rear: 4x USB 3.2 G2 (10Gb) ports, 2x RJ45 Gigabit Ethernet ports, 1x 1GbE dedicated XCC port for remote management, 1x Serial port and 1x VGA port
• Systems Management and Security: Lenovo XClarity Controller; Embedded TPM 2.0; Optional front lockable bezel, chassis intrusion switch
• Power Supplies: Supports a single fixed power supply or a redundant pair of hot-swap power supplies
• Operating Systems Supported: Microsoft Windows Server 2022, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information. Microsoft Windows 10/11 tested
• Dimensions: Height: 430mm (16.9 inches), width: 175mm (6.9 inches), depth: 566mm (22.3 inches)
• Warranty: 3 year CRU & Onsite 9x5 Next Business Day (NBD)

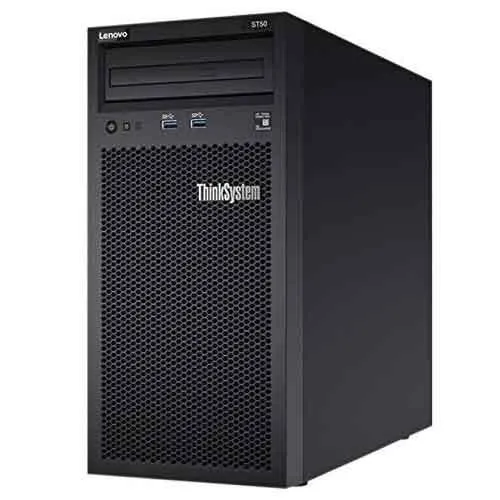

Lenovo ThinkSystem ST50 V2 4U Tower Server

• Server Brand: Lenovo
• Server Product: : ThinkSystem ST50 V2 Tower Server
• Shape Factor : 4U Tower Server
• Processor Structure: 1xIntel Pentium G6405 2C 58W 4.1GHz 58W
• Number of Processors : 1/1
• RAM : 8GB/128GB/TruDDR4
• Internal Hard Disk (Max) : 16TB
• Drive Bays : Up to 3 x 3.5 or 2.5
• Total Available Bays : 3 Bays
• Expansion Slots : Up to 3
• RAM Description : 1x8GB 1Rx8
• Supported Hard Disk : 3.5 or 2.5 SATA
• Slots x Bays Total (Avail) : 3(3) x 3(3)
• Processor Cache : 4.0MB
• Warranty : 3 year CRU & Onsite 9x5 Next Business Day (NBD)

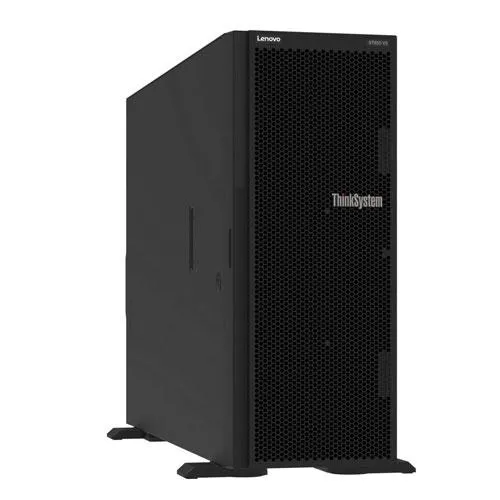

Lenovo ThinkSystem ST650 V2 4U 16 Bays Tower Server

• Server Brand: Lenovo
• Server Product: ThinkSystem ST650 V2 Tower Server
• Shape Factor: 4U Tower Server
• Processors Structure: Up to 2x 3rd generation Intel Xeon Scalable processors, up to 250W
• Drive Bays: Up to 32x 2.5 bays (including 16 NVMe bays) or 16x 3.5 bays (including 8 NVMe bays)
• RAM : Up to 4TB in 32x DIMM slots using 128GB DIMMs; 3200MHz TruDDR4; Up to 16x Intel Optane Persistent Memory 200 Series module (PMem), installed in combination with system memory DIMMs
• Expansion Slots: Up to 8x PCIe 4.0 slots plus 1x PCIe 3.1 slot (with 2x processors)
• Network Interface: 2x 10GBASE-T ports; 1x 1GbE dedicated management port
• Front Ports: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support
• Rear Ports: 4x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x external diagnostics handset port, 1x serial port
• HBA/RAID Support: SW RAID standard; optional HW RAID up to 32 ports, or SAS HBAs up to 16 ports
• Power Supply: Dual redundant AC power supplies (750W, 1100W, 1800W, 2400W) Platinum and Titanium. Energy Star 3.0 compliant.
• Systems Management: Lenovo XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, XClarity Energy Manager centralized server power management
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details.
• Security: Lenovo ThinkShield, lockable security bezel, chassis intrusion switch, TPM 1.2/2.0
• Reliability: Predictive Failure Analysis, hot-swap/redundant drives, fans and power supplies
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR655 V3 4th Gen AMD EPYC 2U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR655 V3 Rack Server
• Shape Factor: 2U Rack Server
• Processor Structure : Choice of one 4th Generation AMD EPYC Processor
• RAM : 12x TruDDR5 DIMM slots
• Maximum 3TB using 256GB 3DS RDIMMs
• Drive Bays: Up to 20x 3.5 or 40x 2.5 drives; hot-swap drive bay
• Combinations of SAS/SATA, NVMe, or AnyBay
• Graphics Processing Unit (GPU): Up to 3x double width 350W GPU; Up to 8x single width 75W GPU
• RAID Support: Hardware RAID flash cache; HBAs
• Power Supply: Dual redundant PSUs Titanium/Platinum to meet ErP Lot 9 standard
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Slots: Up to 10x total PCIe slots (either 10x rear, or 6x rear + 2x front); 1x OCP 3.0 adapter slot, Support for PCIe Gen4/Gen5 and CXL
• Front: 1x USB 3.0; 1x USB 2.0; 1x VGA (optional)
• Rear: 1x VGA l; 3x USB 3.1 G1; 1x Serial port ; 1x Ethernet management
• Systems Management: ASPEED 2600, XClarity support
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server , Red Hat Enterprise Linux VMware vSphere
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR645 V3 4th Gen AMD EPYC 1U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR645 V3 Rack Server
• Shape Factor: 1U Rack Server
• Processors Structure: Up to 2x 4th Generation AMD EPYC Processors
• RAM : Up to 24x TruDDR5 memory slots Maximum 6TB with support for 3DS RDIMMs; up to 1DPC at 4800MHz
• Drive Bays: Up to 4x 3.5, 12x 2.5 drives, or 16x EDSFF drives
• Expansion Slots: Up to 3x PCIe 4.0, 2x PCIe 5.0 slots ; 1x OCP 3.0 adapter slot
• GPU: Up to 4x single-width GPUs
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Power: Dual Redundant AC & DC Supplies with Titanium/Platinum for ErP Lot9 Compliance
• Ports: Front: 1x USB 3.1 G1, 1x USB 2.0 with XCC connection for mobile device, 1x VGA (optional), Optional external Diagnostic Port
• Rear: 3x USB 3.1 G1, 1x VGA Port, 1x Serial port (optional), System ID LED, Error LED, NMI Button
• Systems Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
• Warranty: 3 year customer replaceable unit and onsite services

Lenovo ThinkSystem SR250 V2 Intel Xeon E2300 1U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR250 V2 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure: 1x Intel Xeon E-2300 Processor or 1x Intel Pentium processor, up to 8 cores at 95W
• RAM: Up to 128GB in 4x DIMM slots using 32GB UDIMMs 3200MHz TruDDR4
• Disk Bay: 4x 3.5-inch simple-swap SATA drives 3x 3.5-inch simple-swap SATA drives plus 1x 3.5-inch simple-swap NVMe drive 4x 3.5-inch hot-swap SATA/SAS drives 8x 2.5-inch hot-swap SATA/SAS drives 10x 2.5-inch hot-swap SATA/SAS drives Optional SATA Mirrored M.2 boot drive kit; installs in a PCIe slot
• Expansion Slots : 2x PCIe Gen4 x8 slots or 1x PCIe Gen4 x16 slot 1x PCIe Gen4 x8 (x4 interface) internal RAID slot
• RAID Support: Intel VROC Software RAID supports simple swap and hot swap Multiple RAID configurations (common with other ThinkSystem servers)
• Network Interface: 2x GbE on-board ports (Broadcom BCM5720); 1x GbE port dedicated for XCC management
• Ports: Front: 1x USB 3.2 Gen 1 (5Gbps), 1x USB 2.0 port for local management using the XCC Mobile app Rear: 2x USB 3.2 G2 (10Gb) ports, 2x RJ45 Gigabit Ethernet ports, 1x 1GbE dedicated XCC port for remote management, 1x Serial port and 1x VGA port
• Systems Management and Security: Lenovo XClarity Controller; Embedded TPM 2.0; Optional front security bezel
• Power Supply : Supports a single fixed power supply or a redundant pair of hot-swap power supplies
• Operating Systems Supported: Microsoft Windows Server 2022, Red Hat, SUSE, and VMware ESXi. Visit lenovopress.com/osig for more information.
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR665 AMD EPYC 7002 2U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR665 Rack Server
• Shape Factor: 2U Rack Server
• Processors Structure : Up to two (2) AMD EPYC 7002 Generation Processors, up to 64C, 225W
• RAM : 32x DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at 2933MHz
• Drive Bays: Up to 20x 3.5or 40x 2.5 drives; Maximum of 32x NVMe drives with 1:1 connection
• Expansion Slots: Up to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot
• Graphics Processing Unit (GPU): Up to 8x single-width GPUs or 3x double-width GPUs
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Power: Dual redundant PSUs (up to 1800W Platinum), 240V HVDC support
• Ports Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)
• Rear: 3x USB 3.1, 1x Serial port, 1x RJ-45 (management)
• Systems Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
• Limited Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR650 V2 3rd Gen Intel Xeon 2U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR650 V2 Rack Server
• Shape Factor: 2U Rack Server
• Processors Structure : 2x 3rd generation Intel Xeon Scalable processors, up to 40 cores, up to 270W TDP
• Drive Bays: 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)
• RAM : 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel Optane Persistent Memory 200 Series modules (PMem)
• Expansion Slots : 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
• Graphics Processing Unit (GPU): 8x single-width GPUs or 3x double-width GPUs
• Network Interface:LOM adapter installed in the OCP 3.0 slot; PCIe adapters
• Ports Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
• RAID Support: SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
• Power Supply: Dual redundant power supplies (up to 1800W Platinum)
• Systems Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem HS350X V3 5th Gen Intel Xeon 2U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem HS350X V3 Rack Server
• Shape Factor: 2U Rack Server
• Processor Structure: 1x 4th or 5th Gen Intel Xeon Scalable processor, up to 350W TDP
• Drive Bays: Front- 24x 3.5 HDD drives (support via 24 port SAS RAID/HBA card), Rear- 2x 2.5 NVMe SSDs
• Internal: 2x NVMe M.2 boot drives, VROC support
• RAM : 16x TruDDR5 RDIMMs, up to 1TB 1DPC @4800MHz; 2DPC@4400MHz
• Networking: LOM via OCP & PCIe Adapters
• Front I/O:Power Button with Power Status LED, UID Button with UID LED, Network Activity LED, System Health LED, HDD warning LED, 1x USB 3.2 Gen1 (5 Gbps)
• Rear I/O: Riser 1: x8 FHHL+ x16 FHHL PCIe Gen4, Riser 2: x16 HHHL PCIe Gen4, 1x OCP 3.0 PCIe Gen5 slot
• Power Supply: 2x 1300W/1600W CRPS PT Power Supply Unit (PSU), 2x 1300W CRPS TT Power Supply Unit (PSU)
• Cooling System: Redundant Hot Swap Fans (N+1)
• Management: Vertical DC-SCM 1.0, 1x Management Network Port, 2x USB 3.2 Gen1 (5 Gbps), VGA, Power Button with Power Status LED, System Health LED, UID Button with UID LED
• Operating Systems Supported: Ubuntu 22.04.3 GA, RHEL 9.2, Rocky Linux 8.8, 9.2
• Warranty: Standard 3-year base warranty, extendable to 5 years

Lenovo ThinkSystem SR680a V3 5th Gen Intel Xeon 8U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR680a V3 Rack Server
• Form Factor: 8U Rack Server
• Processor Structure: 2x 5th Gen Intel Xeon Scalable processors, up to 350W
• RAM : Up to 4TB using 32x DDR5 DIMMs with maximum frequency at 5600MHz
• Graphics Processing Unit (GPU) Support: Supports 8x high-performance GPUs:8x NVIDIA H100/H200/B100 GPUs with NVLink interconnects at 900 GB/s 8x AMD Instinct MI300X GPUs with Infinity Fabric interconnects at 896 GB/s
• I/O Expansion: Up to 10x PCIe Gen5 x16 FHHL adapters 8x in front connected to PCIe switch for GPU connectivity 2x in rear connected to CPU for CPU connectivity
• Storage: Up to 16x 2.5 hot-swap NVMe SSDs, Up to 2x non-hot swap M.2 for boot (RAID via VROC)
• Power Supply: Up to 8x hot-swap power supplies, allowing full N+N redundancy
• Cooling System: Air-cooled with N+1 hot-swap fan solution
• Management: XClarity Controller2 (XCC2), which provides advanced Service-processor control, monitoring, and alerting functions. The XCC2 consolidates the service processor functionality, super I/O, video controller, and remote presence capabilities into a single chip on the server system board.
• Operating Systems Supported: RHEL, Ubuntu, Alma Linux, Rocky Linux, ESXi
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR635 V3 4th Gen AMD EPYC 1U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR635 V3 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure : One 4th Generation AMD EPYC Processor
• RAM : 12x TruDDR5 DIMM slots at 1DPC ; Maximum 3TB using 256GB 3DS RDIMMs Up to 1 DPC at 4800MHz
• Drive Bays: Up to 12x 2.5 hot-swap drive bays (Combinations of SAS/SATA, NVMe, or AnyBay) ; Up to 16 EDSFF; Boot Drives: Two 7mm drives at the rear; Internal M.2 module supporting up to two M.2 drives
• Graphics Processing Unit (GPU) Support: Up to 4x single-width GPUs
• RAID Support: Hardware RAID; HBAs
• Power Supply: Dual Redundant AC & DC supplies with Titanium/Platinum for ErP Lot9 Compliance
• Network Interface: OCP 3.0 mezz adapter; 1GbE Dedicated Management, optional 2nd port using OCP slot
• Slots: Up to 5x PCIe 4.0 slots, up to 2x PCIe 5.0 slots; Up to 64x lanes via onboard NVMe connectors
• Front: Front Operator Panel or Integrated diagnostic panel ; 1x USB 3.1 and 1x USB 2.0 with XCC connection for mobile device; Optional VGA port; External diagnostic port for optional External Diagnostic Handset
• Rear: 3x USB 3.1 ports ; 1x VGA port; Optional Serial (COM) port; System ID LED, Error LED, NMI button
• Systems Management: ThinkSystem XClarity Controller based on AST2600
• Pluggable hardware root of trust (RoT) module with TPM 2.0 (Optional)
• Operating Systems Supported: Microsoft Windows Server,SUSE Linux Enterprise Server, Red Hat Enterprise Linux,VMware vSphere
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR685a V3 4th Gen AMD EPYC 8U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR685a V3 Rack Server
• Shape Factor: 8U Rack Server
• Processor Structure: 2x 4th Generation AMD EPYC Processors, up to 400W
• RAM: Up to 3TB using 24x DDR5 DIMMs at max frequency
• Graphics Processing Unit (GPU) Support: Supports 8x high-performance GPUs:8x AMD Instinct MI300X GPUs with Infinity Fabric interconnects at 896 GB/s, 8x NVIDIA H100/H200/B100 GPUs with NVLink interconnects at 900 GB/s
• I/O Expansion: Up to 10x PCIe Gen5 x16 FHHL adapters (8 front, 2 rear): 8x in front connected to PCIe switch for GPU connectivity, 2x PCIe or 1x PCIe + 1x OCP3.0 in the rear connected to CPU for CPU connectivity
• Storage : Up to 16x 2.5 hot-swap NVMe SSDs, Up to 2x M.2 for boot (RAID support)
• Power Supply: Up to 8x hot-swap power supplies, allowing full N+N redundancy
• Cooling System: Air-cooled with N+1 hot-swap fan solution
• Management: XClarity Controller2 (XCC2), which provides advanced service-processor control, monitoring, and alerting functions. The XCC2 consolidates the service processor functionality, super I/O, video controller, and remote presence capabilities into a single chip on the server system board.
• Operating Systems Supported: RHEL, Ubuntu, Alma Linux, Rocky Linux, ESXi
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR650 V3 4th Gen Intel Xeon 2U Server

• Server Brand: Lenovo
• Server Product: Lenovo ThinkSystem SR650 V3 Rack Server
• Shape Factor: 2U Rack Server
• Processor Structure: Up to 2x 4th Gen Intel Xeon Scalable processors, up to 60 cores and 350W TDP
• Graphics Processing Unit (GPU) Support: Up to 8x single-width GPUs or 3x double-width GPUs
• RAM : Supports up to 32x TruDDR5 3DS/RDIMMs
• Drive Bays: Up to 20x 3.5 or 40x 2.5 drives; Up to 36x NVMe drives supported with PCIe retimer adapters: Rear: 2x 2.5; 7mm SATA/NVMe hot-swap boot drives, support RAID
• Internal 2x M.2 SATA/NVMe boot drives, support RAID; Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
• Expansion Slots: Up to 12x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
• Network Interface:LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
• Ports Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port (optional); Rear: 3x USB 3.1 G1, 1x VGA, 1x 1GbE RJ-45 (management), 2nd 1GbE management port (optional in OCP slot location), 1x Serial port (optional)
• RAID Support: SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
• Power: Dual Redundant AC & DC (multiple wattages); Platinum & Titanium; 750W PT/TT, 1100W PT/TT, 1800W PT/TT, 2400W PT, 2600W TT and 1100W -48V DC PT
• System Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR250 V3 Intel Xeon E2400 1U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR250 V3 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure: 1x Intel Xeon E-2400 processor, up to 8 cores at 95W
• RAM : Up to 128GB in 4x UDIMM slots, max 128GB TruDDR5 memory 4400MHz ECC (16GB/32GB)
• Disk Bay : 4x 3.5 simple/hot-swap SATA; 2x 3.5 simple-swap SATA + 2x 3.5 simple-swap NVMe (Gen4); 8x 2.5 hot-swap SAS/SATA SSDs ; 10x 2.5 hot-swap SAS/SATA SSDs; 1 x Internal USB Port (Type A); Optional 2x M.2 kit (SATA, installs in a PCIe slot)
• Expansion Slots: 1x PCIe Gen5 x16 slot or 2x PCIe Gen4 x8 slots ; 1x PCIe Gen4 x8 connector to support internal (CFF) RAID or 2x simple-swap NVMe SSDs
• Graphics Processing Unit (GPU) Support: Optional NVIDIA Quadro T1000 or NVIDIA Quadro T400 GPU
• RAID Support: Supports HW RAID adapter or HBA
• Network Interface: 2x 1GbE Embedded LOM; 1x 1GbE Dedicated Management
• Ports: Front: 1x USB 2.0, support XCC mobile; 1x USB 3.2 Gen1 (5Gb), Optional front VGA port ; Rear: 2x USB 3.2 Gen1 ports (5Gb); 1x Serial port; 1x VGA port
• Systems Management and Security: ThinkSystem XClarity Controller 2, Root of Trust module with integrated Platform Firmware Resiliency, TPM 2.0
• Power Supply: Support fixed PSU 300W; Dual Redundant CRPS Titanium PSU (ErP lot 9)
• Operating Systems Supported: Microsoft Windows Server, Red Hat, SUSE, and VMware ESXi. Visit lenovopress.com/osig for more information.
• Warranty: 3 year warranty with the option to upgrade to years 4 & 5

Lenovo ThinkSystem SR675 V3 4th Gen AMD EPYC 3U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR675 V3 Rack Server
• Shape Factor: 3U Rack Server
• Processor Structure: 1x or 2x 4th Generation AMD EPYC Processors per node
• RAM : Up to 3TB using 24x DDR5 DIMMs with max frequency 4800 MHz 12 channels per CPU with 1DPC Capacities: Up to 128GB
• Base Module: Up to 4x double-wide, full-height, full-length; FHFL GPUs; PCIe Gen5 x16 ; Up to 8x 2.5 Hot Swap SAS/SATA/NVMe
• Dense Module: Up to 8x double-wide, full-height, full-length GPUs each PCIe Gen5 x16 on PCIe switch ; Up to 6x EDSFF E1.S NVMe SSDs or up to 4x EDSFF E3.S 1T NVMe HS SSDs
• HGX Module: NVIDIA HGX H100 4-GPU with 4x NVLink connected SXM5 GPUs ; Up to 4x 2.5 Hot Swap NVMe SSDs or up to 4x EDSFF E3.S 1T NVMe HS SSDs
• RAID Support: Software RAID is not supported. Only RAID Controllers and HBA
• I/O Expansion: Up to 6x PCIe Gen5 x16 adapters (2 front, 4 rear) and 1x OCP NIC 3.0 (x16/x8/x4) (rear) depending on the configuration
• Power and Cooling: Four N+N redundant hot-swap PSUs (up to 2600W Titanium); Full ASHRAE A2 support with internal fans and Lenovo Neptune liquid-to-air hybrid cooling on NVIDIA HGX H100
• Management: Lenovo XClarity Controller 2 (XCC2), Confluent and Lenovo HPC & AI Software Stack
• Operating Systems Supported: Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESXi, Alma Linux, Rocky Linux Tested on Canonical Ubuntu
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR665 V3 4th Gen AMD EPYC 2U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR665 V3 Rack Server
• Shape Factor: 2U rack server
• Processor Structure: Up to 2x 4th Generation AMD EPYC Processors
• RAM : Up to 24x TruDDR5 memory slots Maximum 6TB using 256GB 3DS RDIMMs; up to 1DPC at 4400MHz
• Drive Bays: Up to 20x 3.5 or 40x 2.5 drives
• Expansion Slots : Up to 12x PCIe slots (9x PCIe 5.0) 1x OCP 3.0 adapter slot
• Graphics Processing Unit (GPU) Support: Up to 8x single-width LP GPUs or 3x double-width GPUs
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Power: Dual redundant PSUs Titanium/Platinum to meet ErP Lot 9 standard
• Power and Cooling: Ports: Front: 1x USB 3.0 G1 ; 1x USB 2.0 ; 1x VGA (optional):Rear:3x USB 3.1 G1 ; 1x Ethernet Management port ; 1x Serial COM Port(Option)+1x VGA Port
• System Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR630 V3 4th Gen Intel Xeon 1U Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR630 V3 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure: Up to 2x 4th Gen Intel Xeon Scalable processors, up to 60 cores and 350W TDP
• Graphics Processing Unit (GPU) Support: Up to 3x 75W GPUs for graphics-intensive workloads
• RAM : Supports up to 32x TruDDR5 3DS/RDIMMs
• Drive Bays: Up to 4x 3.5 or 12x 2.5 or 16x EDSFF E1.S drives; Front: up to 4x 3.5 / 10x 2.5 /16x EDSFF E1.short hot swap drives; Rear: 2x 2.5; 7mm SATA/NVMe hot-swap boot drives, support RAID; Internal 2x M.2 SATA/NVMe boot drives, support RAID; Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10)
• Expansion Slots : Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot
• Network Interface: LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters
• Ports: Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)
• Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional)
• RAID Support:SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters.
• Power Supply: Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum
• System Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR670 V2 3rd Gen Intel Xeon 3U Rack Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR670 V2 Rack Server
• Shape Factor: 3U Rack Mount with three modules
• Processor Structure: 2x 3rd Gen Intel Xeon Scalable processors per node
• RAM: 4TB using 32x 128GB 3200MHz TruDDR4 3DS RDIMMs per node Intel Optane Persistent Memory 200 Series
• Base Module: Up to 4x double-wide, full-height, full-length; FHFL GPUs ; each; PCIe Gen4 x16 Up to 8x 2.5 Hot Swap SAS/SATA/NVMe, or 4x 3.5 Hot Swap SATA (selected configurations)
• Dense Module:Up to 8x double-wide, full-height, full-length GPUs each PCIe Gen4 x16 on PCIe switch Up to 6x EDSFF E.1S NVMe SSDs
• HGX Module: NVIDIA HGX A100 4-GPU with 4x NVLink connected SXM4 GPUs Up to 8x 2.5 Hot Swap NVMe SSDs
• RAID Support: SW RAID standard; Intel Virtual RAID on CPU (VROC), HBA or HW RAID with flash cache options
• Expansion slot:Up to 4x PCIe Gen4 x16 adapters (2 front or 2-4 rear) and 1x PCIe Gen4 x16 OCP 3.0 mezz adapter (rear) depending on the configuration
• Power and Cooling: Four N+N redundant hot-swap PSUs (up to 2400W Platinum) Full ASHRAE A2 support with internal fans and Lenovo Neptune liquid-to-air hybrid cooling on NVIDIA HGX A100
• Management: Lenovo XClarity Controller (XCC) and Lenovo Intelligent Computing Orchestration (LiCO)
• Operating Systems Supported: Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Microsoft Windows Server, VMware ESXi Tested on Canonical Ubuntu
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR780a V3 5th Gen Intel Xeon 5U Rack Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR780a V3 Rack Server
• Shape Factor: 5U Rack Server
• Processor Structure: 2x 5th Gen Intel Xeon Scalable processors, up to 350W
• RAM : Up to 4TB using 32x DDR5 DIMMs with maximum frequency at 5600MHz
• Graphics Processing Unit (GPU): Supports 8x high-performance GPUs 8x NVIDIA HGX H200 GPUs with NVLink interconnects at 900 GB/s
• I/O Expansion: Up to 10x PCIe Gen5 x16 FHHL adapters 8x in front connected to PCIe switch for GPU connectivity, 2x in rear connected to CPU for CPU connectivity
• Storage: Up to 8x U.2/U.3 hot-swap NVMe SSDs, Up to 2x M.2 for boot (RAID via VROC)
• Power Supply: Up to 8x hot-swap power supplies, allowing full N+N redundancy
• Cooling System: Direct Liquid Cooling for CPU, GPU, and NVLink Switches, Air cooled with N+1 hot-swap fan solution for the rest of the system
• Management: XClarity Controller2 (XCC2), which provides advanced service-processor control, monitoring, and alerting functions. The XCC2 consolidates the service processor functionality, super I/O, video controller, and remote presence capabilities into a single chip on the server system board.
• Operating Systems Supported: RHEL, Ubuntu, Alma Linux, Rocky Linux, ESXi
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR635 AMD EPYC 7002 1U Rack Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR635 Rack Server
• Form Factor/ 1U Rack Server
• Depth: 778 mm (30.6 inches)
• Processor: CChoice of one AMD EPYC 7002 Generation processor, up to 280W
• Memory: 16x DDR4 memory slots; Maximum 2TB using 128GB 3DS RDIMMs; Up to 1 DPC at 3200MHz, 2 DPC at 2933MHz
• Drive Bays: Up to 4x 3.5” or 16x 2.5 drives; Supports 16x NVMe drives with 1:1 connection (no oversubscription)
• RAID Support: Hardware RAID with flash cache; HBAs
• Power Supply: Two hot-swap/redundant power supplies: 550W/750W/1100W AC 80 PLUS Platinum; or 750W AC 80 PLUS Titanium
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Slots: 3x PCIe x16 rear slots, 1x OCP 3.0 adapter slot, 1x PCIe x8 internal slot
• Ports Front: 2x USB 3.1 G1 ports, 1x VGA (optional)
• Rear: 1x VGA, 2x USB 3.1 G1, 1x Serial port; 1x RJ-45 1Gb for dedicated management
• Systems Management: ASPEED AST2500 BMC, Partial XClarity support
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR630 V2 Intel Xeon 1U Rack Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR630 V2 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure: Up to 2x 3rd generation Intel Xeon Scalable processors, up to 40 cores, up to 270W TDP
• Drive Bays: Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1)
• RAM: 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel Optane DC persistent memory 200 Series modules (PMem)
• Expansion Slots :Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot
• Graphics Processing Unit (GPU): Up to 3x single-width 75W GPUs
• Network Interface: LOM adapter installed in the OCP 3.0 slot; PCIe adapters
• Ports: Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)
• RAID Support: SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs
• Power Supply: Dual redundant power supplies (up to 1800W Platinum)
• Systems Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information.
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo ThinkSystem SR645 AMD EPYC 7002 1U Rack Server

• Server Brand: Lenovo
• Server Product: ThinkSystem SR645 Rack Server
• Shape Factor: 1U Rack Server
• Processor Structure: Up to two (2) AMD EPYC 7002 Generation Processors, up to 64C, 225W
• RAM: 32 DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at 2933MHz
• Drive Bays: Up to 4x 3.5 or 12x2.5 drives; Maximum of 12x NVMe drives with 1:1 connection
• Expansion Slots Up to 3x PCIe 4.0 slots, 1x OCP 3.0 adapter slot
• GPU Up to 3x single-width 75W GPUs
• Network Interface: OCP 3.0 mezz adapter, PCIe adapters
• Power: Dual redundant PSUs (up to 1800W Platinum), 240V HVDC support
• Ports Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional), Rear: 3x USB 3.1, 1x Serial port, 1x RJ-45 (management)
• Systems Management: Lenovo XClarity Controller
• Operating Systems Supported: Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
• Warranty: 3 year customer replaceable unit and onsite service

Lenovo Flex System Enterprise Chassis

Highly Reliable. Customizable. Efficient

• Scales to meet business needs
• works with multiple generations of technology
• offers high availability
• securely protects vital information
• and maximizes uptime.
• Efficient: 14 standard compute node bays in a 10U chassis
• Customizable: compute or management nodes
• with up to 4 networking modules in rear
• High Reliability: N+N or N+1 redundant power
• a 3-phase power domain
• & a passive mid-plane

Features Highlights

• Outstanding flexibility and efficiency with choice of compute and networking
• No compromise design that can easily scale capabilities with business needs
• Designed for multiple generations of technology
• Integrated and easy to use management with advanced functions
• Scalable pay-as-you-grow flexible I/O offerings
• Highly resilient: no single point of failure to maintain high availability
• Designed to deliver a highly secure environment
• protecting vital information and maximizing uptime
• World-class service with three-year on-site support

Flexibility Efficiency

• To meet today’s complex and ever-changing business demands
• the Lenovo Flex System Enterprise Chassis provides a high-performance
• integrated infrastructure platform that supports a mix of compute and networking capabilities. The Flex System Enterprise Chassis has been designed and built specifically to provide the efficiency you need now
• along with the growth path necessary to protect your investment into the future.
• The Flex System Enterprise Chassis is the foundation of the Flex System offering
• which features 14 standard (half-width) Flex System form factor compute node bays in a 10U chassis that delivers high-performance connectivity for your integrated compute
• networking and management resources.

Lenovo ThinkSystem SR850

Intelligently designed for value

• Easily scale from two to four processors
• Large memory capacity
• Flexible storage configurations
• Advanced RAS features
• XClarity Management

Features Highlights

• The perfect balance of expandability and economics. Intelligently designed for value.
• Designed for reliability and uptime. The confidence to run anything.
• Engineered with the future in mind. Ready for tomorrow’s technologies.

Growth is inevitable

• The Lenovo ThinkSystem SR850 is built to deliver the performance and reliability you require today
• with the scalability and versatility you’ll need as you advance toward the “future-defined” data center.
• The flexible 2U SR850 can scale from two to four powerful Intel Xeon processor Scalable family CPUs
• with up to 233 percent more cores and 400 percent more memory than the previous-generation server*
• achieving up to 76 percent faster performance. Built for standard workloads like general business applications and server consolidation
• it can also accommodate high-growth areas such as databases and virtualization. The agile design of ThinkSystem SR850 provides rapid upgrades for processors and memory
• and its large
• flexible storage capacity helps you keep pace with data growth.

Lenovo ThinkSystem SR550 Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR655 AMD Rack Server

• PROCESSOR: AMD EPYC 7272 12C 120W
• GHz: 2.9GHz
• Cache : 64 MB
• MEMORY : 1x16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : AST2500 embedded management processor combined with X-clarity administrator
• Others : SR635/SR655 x8 PCIe Internal Riser, x16/x16 PCIe Riser1, 750W(230/115V) Platinum Hot-Swap PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR650 18 Core Gold Rack Server

• PROCESSOR: Intel Xeon Gold 5220 18C 125W
• GHz: 2.2GHz
• Cache : 24.75 MB
• MEMORY : 1x32GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : Thinksystem RAID 930-8i 2GB Flash PCIe Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR650 16 Core Gold Rack Server

• PROCESSOR: Intel Xeon Gold 5218 16C 125W
• GHz: 2.3GHz
• Cache : 22 MB
• MEMORY : 1x32GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : Thinksystem RAID 930-8i 2GB Flash PCIe Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR650 16 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4216 16C 100W
• GHz: 2.1Ghz
• Cache : 22 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR650 12 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4214 12C 85W
• GHz: 2.2GHz
• Cache : 16.5 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR650 8 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR550 2U Silver Rack Server

• FORM FACTOR: Dual Socket RACK (2U)
• FAMILY:SR550
• PART No: 7X04SQVC00
• PROCESSOR: Intel Xeon Silver 4210 10c 85W
• GHz: 2.2Ghz
• Cache : 13.75 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR550 10 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4210 10c 85W
• GHz: 2.2Ghz
• Cache : 13.75 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR550 8 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR550 6 Core Bronze Rack Server

• PROCESSOR: Intel Xeon Bronze 3204 6C 85W
• GHz: 1.9Ghz
• Cache : 8.25 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR530 10 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4210 10C 85W
• GHz: 2.1GHz
• Cache : 13.75 MB
• MEMORY : 16GB X 1
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+LP Riser 1 Kit, 2x1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR530 8 Core Silver Rack Server

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1GHz
• Cache : 11 MB
• MEMORY : 16GB X 1
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+LP Riser 1 Kit, 2x1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem SR250 1U Rack Server

• PROCESSOR: Intel Xeon E-2124 4 core
• GHz: 3.3Ghz
• Cache : 8 MB
• MEMORY : 1x8 GB
• HARD DRIVE: 1 x 1TB SATA 3.5" Simple Swap  SATA (Upto 4 Bays)
• RAID : RAID 0,1,5,10 (Onboard software RAID)
• MANAGEMENT : X Clarity Controller Std
• WARRANTY : 3 Years Onsite

Lenovo ThinkSystem ST550 10 Core Silver Tower Server

Lenovo ThinkSystem ST550 8 Core Silver Tower Server

Lenovo ThinkSystem ST550 Bronze Tower Server

• PROCESSOR: Intel Xeon Bronze 3204 6C 85W
• GHz: 1.9Ghz
• Cache : 8.25 MB
• MEMORY : 16GB X 1
• HARD DRIVE: 1 x 2TB Enterprise SATA 3.5" SATA 4-Bay Simple Swap Backplane
• RAID : Software Raid Only
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

Lenovo ThinkSystem ST250 6 Core Tower Server

• PROCESSOR: Intel Xeon E-2226G 6C 80W
• GHz: 3.4GHz
• Cache : 12 MB
• MEMORY : 1x8 GB TruDDR4
• HARD DRIVE: Open Bay 8x2.5" SATA/SAS Backplane
• RAID : RAID 0,1,5,10 (Onboard RAID)
• MANAGEMENT : Lenovo XClarity Administrator
• Others : Dual Gigabit Ethernet ports, 1x550W PSU
• WARRANTY : 3 Years Onsite

Lenovo ThinkSystem ST250 Tower Server

• PROCESSOR: Intel Xeon E-2104G 4C
• GHz: 3.2GHz
• Cache : 8 MB
• MEMORY : 1x8 GB TruDDR4
• HARD DRIVE: 1 X 1TB Enterprise SATA 3.5" Hotswap SATA
• RAID : RAID 0,1,5,10 (Onboard RAID)
• MANAGEMENT : Lenovo XClarity Administrator
• WARRANTY : 3 Years Onsite

Lenovo ThinkSystem ST50 Tower Server

• PROCESSOR: Intel Xeon E-2224G 4C
• GHz: 3.5GHz
• Cache : 8 MB
• MEMORY : 1x8 GB TruDDR4
• HARD DRIVE: 1 X 1TB Enterprise SATA 3.5"  SATA
• RAID : RAID 0,1,5,10 (Onboard RAID)
• MANAGEMENT : Intel AMT 12.0
• Others : 1 Ethernet Ports, Optical Disk Drive
• WARRANTY : 3 Years Onsite

IBM Z15 Mainframe server

• Simplified life for developers with a cloud native experience
• Greater performance and scalability for mission-critical data encryption
• Enhanced instant recovery delivers ultimate uptime for high availability
• Flexible compute for any business, any cloud

IBM Power System E950 Server

• Microprocessors: Up to 48 cores 12 core processor sockets at 3.15 to 3.80 GHz (max)
• Memory: Up to 128 DDR4 Industry Standard DIMMs128GB to 16TB (max)
• Storage Backplane Options: Base Storage Backplane 8 SFF-3 Bays
• Internal Storage bays: for SAS solid-state drives (SSD) or hard-disk drives, and NVMeU.2 drives 8 hot-swap SFF SAS bays + 4 NVMe bays
• RAS features: First Failure Data Capture
• Cloud Management and Deployment features: IBM Cloud Power VC Manager
• Operating systems: AIX and Linux
• Power Requirements Operating voltage: 200 to 240V AC

IBM Power System E980 Server

• Microprocessors: 4 x POWER9 processors – 8,10,11 or 12 cores each
• Memory: 32 DIMM slots Up to 16 TB buffered DDR4 CDIMMs per node
• Internal storage: 4 slots for non-volatile memory express(NVMe U.2)
• Integrated PCIe adapter slots: 8 PCIe x16 Gen4
• PCIe I/O Expansion Drawers: Up to 4 (12 PCIe adapter slots each)
• POWER Hypervisor: PowerVM Enterprise integrated
• Operating systems: AIX, IBM i and Linux for Power
• Power requirements: Operating voltage: 200 to 240V AC

IBM Power System S924 server

• Microprocessors: 8 core Typical 3.8 to 4.0 GHz (max) POWER9 Processor
• Memory: Up to 4096 GB of DDR4 memory running at speeds of 2133, 2400, and 2666 Mbps
• Storage Backplane Options: Base 12 SFF-3 Bays/RDX Bay
• Internal Disk Storage: 12 or 18 SFF SAS Bay options (HDD or SDD), 2 internal PCIe G3 Slots for Storage Controller or NVMe
• Adapter slots: 3 x16 Gen4 full-height, half-length (CAPI)
• Connectivity support (optional): I/O ports Standard features One front USB 3.0 ports
• RAS features: Processor instruction retry
• Operating systems: AIX 7.2 TL0, TL1 (P8 Compatibility Mode)

IBM Power System S922 server

• Microprocessors: 4-core Typical 2.8 to 3.8 GHz (max) POWER9 Processor
• Memory: Up to 4096 GB of DDR4 memory
• Storage Backplane Options: Base Storage Backplane 8 SFF-3 Bays
• Internal Disk Storage: SFF bays, one integrated SAS controller without cache, and JBOD RAID 0, 5, 6, or 10
• Adapter slots: One x16 Gen4 low-profile, half-length slot (CAPI)
• RAS features: Processor instruction retry
• Operating systems: AIX 7.2 TL0, TL1 (P8 Compatibility Mode)

Lenovo Distributed Storage Solution for IBM Spectrum Scale

• Single, integrated storage solution
• Built to leverage a strong IBM Spectrum Scale software market
• High-capacity, scalable building-block approach—performance and capacity increase as you add multiple building blocks
• Unique, innovative Spectrum Scale RAID capability providing extreme data integrity and reduced latency with faster rebuild times and enhanced data protection
• Cost competitive

Lenovo Scalable Infrastructure Server

• Operating Systems: Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS
• Lenovo Software: Lenovo intelligent Computing Orchestration (LiCO)
• OEM Software: IBM® Spectrum Scale, Excelero
• Open Source Software: xCat/Confluent, Antilles
• Scalability    Individual configuration based on the components above scaling from single to 10,000s of systems
• Warranty: 3-year parts, customer replaceable unit (CRU) or on-site labor, limited warranty, with individual nodes retaining the warranty and service upgrade offerings for that machine type; optional warranty service upgrades. Support is 9x5, next business day

Lenovo ThinkSystem SD530 Server

• Form Factor/Height: 2U rack enclosure; 4 independent compute nodes
• Processor (max)/Cache (max): Up to 2x Intel® Xeon® Platinum processors, up to 165W
• Memory: Up to 1TB in 16x slots, using 64GB DIMMs; 2666MHz TruDDR4
• Expansion Slots: 1x shuttle per D2 enclosure: either x8 PCIe Shuttle with 8x PCIe 3.0 x8 slots (2 per node); or x16 PCIe Shuttle with 4x PCIe 3.0 x16 slots (1 per node). Up to 2x external 1U trays (with up to 2 GPUs per node each)
• Drive Bays (Total/Hot Swap)
• Up to 24x (6x per node) HS SFF SAS/SATA HDDs/SSDs; up to 8x (2x per node) HS SFF NVMe SSDs
• RAID Support: SW RAID supports JBOD; Entry RAID; opt. HW RAID 12Gb supports JBOD; plus M.2 boot support with optional RAID
• Security and Availability Features    TPM 1.2/2.0; PFA; HS/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
• Network Interface: Opt. 8-port EIOM 10Gb SFP+ (two ports per node); Opt. 8-port EIOM 10GbaseT RJ45 (two ports per node)
• Power Supply: 2x hot-swap/redundant 1+1 1600W/2000W; or 2x non-redundant 1100W
• Hot-Swap Components    Power supplies, fans, SAS/SATA/NVMe storage devices; compute nodes are warm-swap
• Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
• Operating Systems Supported
• Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere. Visit lenovopress.com/osig for details.
• Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, opt. service upgrades

Lenovo ThinkSystem SD650 Server

• Form Factor: Full-wide 1U tray (six per n1200 Enclosure)
• Chassis    : NeXtScale n1200 Enclosure (6U)
• Processors: 2 second-generation Intel Xeon Scalable Processor Scalable family CPUs per node; 2x nodes per 1U tray
• Memory    Up to 1.5TB using 12x 2933MHz TruDDR4 DIMMs per node or up to 2TB (512GB x4) using Intel Optane DC Persistent Memory
• I/O Expansion: 1x 50mm width ML2 slot and 1x PCIe x16 slot for EDR InfiniBand or Intel Omni Path, per server node
• Internal Storage: Up to 2x 2.5” SATA SSDs (7mm height) or 1x 2.5” NVMe SSDs (15mm height) per node; up to 2x M.2 SATA SSDs
• RAID Support: Onboard SATA controller with SW RAID; optional Dual M.2 SSD adapter with HW RAID 1
• Network Interface: 2x 1GbE BaseT NIC per node; additional high-speed network adapters (InfiniBand or Omni Path) can be installed in available front-accessible PCIe x16 adapter slot
• Power Management: Rack-level power capping and management via Extreme Cloud Administration Toolkit (xCAT)
• Systems Management: Supported by LICO and XCC
• Limited Warranty: 3-year customer replaceable unit and onsite limited warranty, next business day 9x5, service upgrades available

Lenovo ThinkSystem SR850 Mission Critical Servers

• Form Factor/Height: 2U rack server
• Processor (max): 2 or 4 second-generation Intel® Xeon® Processor Scalable family CPUs, up to 165W
• Memory (max): Up to 6TB in 48x slots using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4
• Expansion Slots: Up to 9x PCIe plus 1x LOM; optional 1x ML2 slot
• Internal Storage: Up to 16x 2.5" storage bays supporting SAS/SATA HDD and SSDs or up to 8x 2.5" NVMe SSD; plus up to 2x mirrored M.2 boot
• Network Interface: Multiple options with 1GbE, 10GbE, 25GbE, 32GbE, 40GbE or InfiniBand PCIe adapters; one (2-/4-port) 1GbE or 10GbE LOM card
• Power Supply (std/max): 2x hot-swap/redundant: 750W/1100W/1600W AC 80 PLUS Platinum
• Security and Availability Features: Lenovo ThinkShield, TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; diagnostic LCD panel
• RAID Support: HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs
• Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

Lenovo ThinkSystem SR850P Mission Critical Servers

• Form Factor: 2U
• Processors: Two or four 3rd-generation Intel Xeon Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
• Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
• Expansion: Up to 7x PCIe 3.0 expansion slots
• Front: VGA, 1x USB 3.1, 1x USB 2.0
• Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
• Internal Storage Up to 24x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm drives for boot
• Network Interface Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
• Power 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
• High Availability TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional diagnostic LCD panel
• RAID Support: Onboard SATA with SW RAID; Support for ThinkSystem PCIe RAID/HBA cards
• Management    Lenovo XClarity Controller; Redfish support
• OS Support    Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
• Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

Lenovo ThinkSystem SR850 V2 Mission Critical Servers

• Form Factor: 2U
• Processors: Two or four 3rd-generation Intel® Xeon® Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
• Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
• Expansion: Up to 7x PCIe 3.0 expansion slots
• Front: VGA, 1x USB 3.1, 1x USB 2.0
• Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port
• Internal Storage Up to 24x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm drives for boot
• Network Interface Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
• Power 2x Platinum or Titanium hot-swap power supplies; N+N redundancy supported
• High Availability TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional diagnostic LCD panel
• RAID Support: Onboard SATA with SW RAID; Support for ThinkSystem PCIe RAID/HBA cards
• Management    Lenovo XClarity Controller; Redfish support
• OS Support    Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
• Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

Lenovo ThinkSystem SR860 V2 Mission Critical Servers

• Form Factor: 4U
• Processors: Two or four 3rd-generation Intel® Xeon® Processor Scalable family CPUs, up to 250W; Mesh topology with 6x UPI links
• Memory: Up to 12TB of TruDDR4 memory in 48x slots; Memory speeds up to 3200MHz at 2 DIMMs per channel; Supports Intel Optane Persistent Memory 200 Series
• enternal Storage: Up to 48x 2.5-inch drives; Supports up to 24x NVMe drives (16x with 1:1 connection); 2x 7mm or 2x
• GPU Support    Up to 4x double-wide 300W GPUs (NVIDIA V100S) or 8x single-wide 70W GPUs (NVIDIA T4)
• Network Interface: Dedicated OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE
• Power Up to 4x Platinum or Titanium hot-swap power supplies; N+N and N+1 redundancy supported
• High Availability: TPM 2.0; PFA; hot-swap/redundant drives and power supplies; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional integrated diagnostic LCD panel
• RAID Support: Onboard SATA with SW RAID, Support for ThinkSystem PCIe RAID/HBA cards
• Management: Lenovo XClarity Controller; Redfish support
• OS Support Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for more information.
• Limited Warranty: 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades

Lenovo ThinkSystem SR950 Mission Critical Servers

• Form Factor/Height: Rack/4U
• Processor (max): Up to 8 second-generation Intel® Xeon® Platinum processors, up to 28x cores per processor, up to 205W
• Memory (max): Up to 24TB in 96 slots, using 256GB DIMMs; 2666MHz / 2933MHz TruDDR4, supports Intel® Optane™ DC
• Expansion Slots: Up to 14x rear PCIe, (11x x16 +, 3x x8), 2x shared ML2 and PCIe x16) and 1x LOM; plus 2x front
• Internal Storage (Total/Hot-swap) Up to 24x 2.5" bays supporting SAS/SATA HDDs/SSDs, including 12x 2.5" NVMe SSDs
• Network Interface : Up to 2x (1/2/4-port) 1GbE, 10GbE, 25GbE, or InfiniBand ML2 adapters; plus 1x (2/4-port) 1GbE or 10GbE LOM card
• Power (std/max): Up to 4x shared 1100W, 1600W or 2000W AC 80 PLUS Platinum
• Security and Availability Features    Lenovo ThinkShield, TPM 1.2/2.0; PFA; Hot-swap/redundant drives, fans, and PSUs; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port
• Hot-Swap/Redundant Components    Power supplies, fans, SAS/SATA/NVMe storage
• RAID Support: Optional HW RAID; M.2 boot support with optional RAID
• Systems Management    XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
• OSes Supported
• Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades
