GCC Plotter

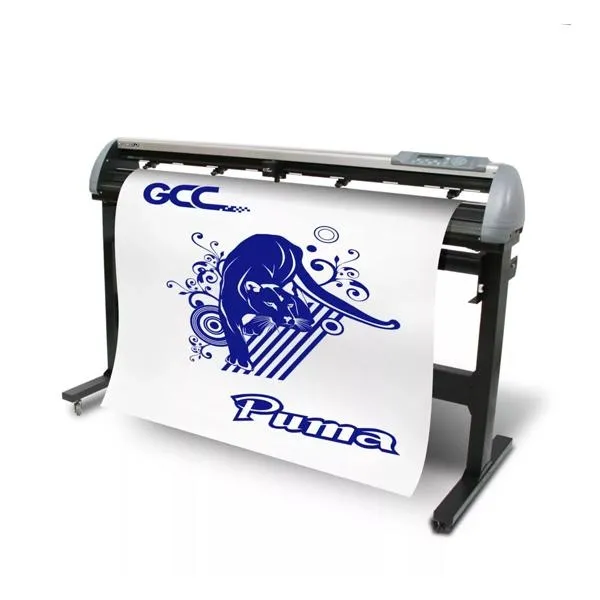

GCC Chennai, Puma Chennai, P4 Chennai, 132 Chennai, Vinyl Chennai, Cutter Chennai, Plotter Chennai, 60 Chennai, EX Chennai, II Chennai, 52LX Chennai, 52 Chennai, Inch Chennai, 24LX Chennai, 24 Chennai, , Brand: GCCModel No: Puma P4 132 P4 132LX Vinyl Cutter PlotterOperational Method: Roller-TypeMax. Cutting Width: 1300 mm(51.18 in.)Max. Media Loading Width: 1470 mm(57.87 in.)Min. Media Loading Width: 50 mm(1.97 in.)Acceptable Material Thickness: 0.8 mm (0.03 in.)Number of Pinch Rollers: 4Drive: DC Servo ControlMax. Cutting Force; 500gMax. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)Offset: 0-1.0 mm (with an increase of 0.025 mm)Mechanical Resolution: 0.009 mm (0.00035")Software Resolution: 0.025 mm (0.00098")Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterrRepeatability: ±0.1mmMemory Size: 32 MB /16 MB (when using AAS)Interfaces: USB 2.0 (High speed), Serial (RS-232C), EthernetControl Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LEDDiameter of Blade: 2.5 mmDimension(H x W x D) mm: 1065 x 1632 x 620 mm (Stand Including ) 41.93 x 64.25 x 24.41 in.Net Weight: 53 kg / 116.4 lbPower Supply: AC 100-240V, 50~60 Hz (auto switching)Power Consumption: Max. 170 WEnvironment Humidity: 25%~ 75% relative humidity (operating)Environment Temperature: 15°-30°C (60°-86°F)Brand: GCCModel No: Puma P4 60 P4 60LX Vinyl Cutter PlotterOperational Method: Roller-TypeMax. Cutting Width: 600mm(23.6 in.)Max. Media Loading Width: 719 mm(28.3 in.)Min. Media Loading Width: 50 mm(1.97 in.)Acceptable Material Thickness: 0.8 mm (0.03 in.)Number of Pinch Rollers: 2Drive: DC Servo ControlMax. Cutting Force; 500gMax. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)Offset: 0-1.0 mm (with an increase of 0.025 mm)Mechanical Resolution: 0.009 mm (0.00035")Software Resolution: 0.025 mm (0.00098")Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterrRepeatability: ±0.1mmMemory Size: 32 MB /16 MB (when using AAS)Interfaces: USB 2.0 (High speed), Serial (RS-232C), EthernetControl Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LEDDiameter of Blade: 2.5 mmDimension(H x W x D) mm: 220 x 879 x 258 mm 8.76 x 34.61 x 10.16 in.Net Weight: 13 kg / 28.6 lbPower Supply: AC 100-240V, 50~60 Hz (auto switching)Power Consumption: Max. 170 WEnvironment Humidity: 25%~ 75% relative humidity (operating)Environment Temperature: 15°-30°C (60°-86°F)Brand: GCCModel No: EX II 52LX Vinyl Cutter PlotterMax. Cutting Width: 1320 mm (51.96 in)Max. Media Width: 1470 mm (57.87 in.)Acceptable Material Thickness: 0.8 mmMax. Cutting Force: 350 gMax. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)Mechanical Resolution: 0.012 mm (0.00047 in.)Software Resolution: 0.025 mm (0.00098 in.)Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterRepeatability: ±0.1Tracking: 3MMemory Buffer: 32MB / 16MB (when using AAS)Control Panel: 6 LEDs / 10 KeysDiameter of Blade: 2.5 mmDimension: 1633*1069*650Net Weight: 41KG (90.2lb)Stand: StandardPower Supply: 100-240 VAC, 50 / 60 Hz (auto switching)Power Consumption: Max. 65 WTemperature: 15° C~30° C / 60°F~86° FBrand: GCCModel No: EX II 52 Vinyl Cutter PlotterMax. Cutting Width: 1320 mm (51.96 in)Max. Media Width: 1470 mm (57.87 in.)Acceptable Material Thickness: 0.8 mmMax. Cutting Force: 350 gMax. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)Mechanical Resolution: 0.012 mm (0.00047 in.)Software Resolution: 0.025 mm (0.00098 in.)Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterRepeatability: ±0.1Tracking: 3MMemory Buffer: 32MB / 16MB (when using AAS)Control Panel: 6 LEDs / 10 KeysDiameter of Blade: 2.5 mmDimension: 1633*1069*650Net Weight: 41KG (90.2lb)Stand: StandardPower Supply: 100-240 VAC, 50 / 60 Hz (auto switching)Power Consumption: Max. 65 WTemperature: 15° C~30° C / 60°F~86° FBrand: GCCModel No: EX II 24LX Vinyl Cutter PlotterMax. Cutting Width: 600 mm (23.6 in.)Max. Media Width: 719 mm (28.3 in.)Acceptable Material Thickness: 0.8 mmMax. Cutting Force: 350 gMax. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)Mechanical Resolution: 0.012 mm (0.00047 in.)Software Resolution: 0.025 mm (0.00098 in.)Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterRepeatability: ±0.1Tracking: 3MMemory Buffer: 32MB / 16MB (when using AAS)Control Panel: 6 LEDs / 10 KeysDiameter of Blade: 2.5 mmDimension: 233*880*255Net Weight: 11KG (24.3lb)Stand: OptionalPower Supply: 100-240 VAC, 50 / 60 Hz (auto switching)Power Consumption: Max. 65 WTemperature: 15° C~30° C / 60°F~86° FBrand: GCCModel No: EX II 24 Vinyl Cutter PlotterMax. Cutting Width: 600 mm (23.6 in.)Max. Media Width: 719 mm (28.3 in.)Acceptable Material Thickness: 0.8 mmMax. Cutting Force: 350 gMax. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)Mechanical Resolution: 0.012 mm (0.00047 in.)Software Resolution: 0.025 mm (0.00098 in.)Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterRepeatability: ±0.1Tracking: 3MMemory Buffer: 32MB / 16MB (when using AAS)Control Panel: 6 LEDs / 10 KeysDiameter of Blade: 2.5 mmDimension: 233*880*255Net Weight: 11KG (24.3lb)Stand: OptionalPower Supply: 100-240 VAC, 50 / 60 Hz (auto switching)Power Consumption: Max. 65 WTemperature: 15° C~30° C / 60°F~86° F Chennai
