Epson Interactive Panel Models Chennai, Tamilnadu
Epson EI P8601 86 Inch 5K UHD Interactive Panel
Epson EI P8601 86 Inch 5K UHD Interactive Panel Price Chennai, Datasheet, Specification, Dealers, Interactive Panel Chennai
- Brand: Epson
- Model No: Epson EI P8601 86 Inch Interactive Panel
- Resolution: UHD 3840 × 2160 pixels (5K)
- Color depth: 10-bit
- Panel brightness (typical): typ 400nits
- Contrast ratio (typical): 1200:1
- Dynamic contrast ratio: 5000:1
- Color gamut: 72% NTSC
- Panel Type: IPS
- Screen size: 218.44cms (86")
- Aspect Ratio: 16:09
- VGA: 1
- HDMI: (in) 3 × HDMI 2.0 (Front 1 & Rear 2)
- DisplayPort: 1 × 1.2a
- USB-A (3.0) x 3: Front 2 & Left side 1
- USB-A (2.0) x 2: Left side 1 & Left bottom 1
- USB-C: Front USB 3.1, PD 65 W w/o OPS, PD 15 W with OPS
- USB-B (for touch): 2 × 3.0 (Front 1 & Rear 1)
- VGA 3.5 mm Line in: Audio Input x 1
- OPS slot (for slot-in PC): 1
- Wi-Fi: Wi-Fi 6E, Wi-Fi slot
- Bluetooth: Bluetooth 5.3
- Ethernet: 2 (10 M/100 M/1000 Mbps)
- 3.5 mm Line in (2): Shared with Audio input
- RS-232: 1
- VGA 3.5 mm Line out: Earphone × 1
- HDMI: (out) 1 × HDMI 2.0
- USB Type A: USB-A (3.0) x 3; USB-A (2.0) x 2
- USB Type B: USB-B (for touch): 2 × 3.0
- Memory | Storage: 8 GB | 128 GB
- OS: Android 14 with EDLA & Google Play Store
- CPU: Octa Core, A72*4+A53*4
- Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
- Storage temperature:-10°C ~ 60°C | 14°F ~ 140°F
- Operating humidity:20% ~ 80% RH non-condensing
- Direct Power On / Off:
- Direct Power On / Off: Yes
- ENERGY STAR: YES
- Power: AC 100-240 V 50/60 Hz
- Standby power consumtion: <0.5 W
- Typical power consumtion: 228.4W
- Maximum Dimension (D x W x H): 97.1 x 1957 × 1159.9 mm
- Touch technology: High Precision IR
- Touch points: Up to 40
- Touch response time: ?10ms
- Weight: 50.73Kg
Epson EI P7501 75 Inch 5K UHD Interactive Panel
Epson EI P7501 75 Inch 5K UHD Interactive Panel Price Chennai, Datasheet, Specification, Dealers, Interactive Panel Chennai
- Brand: Epson
- Model No: EI P7501 75 Inch 5K UHD Interactive Panel
- Resolution: UHD 3840 × 2160 pixels (5K)
- Color depth: 10-bit
- Panel brightness (typical): typ 400nits
- Contrast ratio (typical): 1200:1
- Dynamic contrast ratio: 5000:1
- Color gamut: 72% NTSC
- Panel Type: IPS
- Screen size: 190.5 cms (75")
- Aspect Ratio: 16:09
- VGA: 1
- HDMI: (in) 3 × HDMI 2.0 (Front 1 & Rear 2)
- DisplayPort: 1 × 1.2a
- USB-A (3.0) x 3: Front 2 & Left side 1
- USB-A (2.0) x 2: Left side 1 & Left bottom 1
- USB-C: Front USB 3.1, PD 65 W w/o OPS, PD 15 W with OPS
- USB-B (for touch): 2 × 3.0 (Front 1 & Rear 1)
- VGA 3.5 mm Line in: Audio Input x 1
- OPS slot (for slot-in PC): 1
- Wi-Fi: Wi-Fi 6E, Wi-Fi slot
- Bluetooth: Bluetooth 5.3
- Ethernet: 2 (10 M/100 M/1000 Mbps)
- 3.5 mm Line in (2): Shared with Audio input
- RS-232: 1
- VGA 3.5 mm Line out: Earphone × 1
- HDMI: (out) 1 × HDMI 2.0
- USB Type A: USB-A (3.0) x 3; USB-A (2.0) x 2
- USB Type B: USB-B (for touch): 2 × 3.0
- Memory | Storage: 8 GB | 128 GB
- OS: Android 14 with EDLA & Google Play Store
- CPU: Octa Core, A72*4+A53*4
- Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
- Storage temperature:-10°C ~ 60°C | 14°F ~ 140°F
- Operating humidity:20% ~ 80% RH non-condensing
- Direct Power On / Off:
- Direct Power On / Off:Yes
- ENERGY STAR: YES
- Power: AC 100-240 V 50/60 Hz
- Standby power consumtion: <0.5 W
- Typical power consumtion: 154.1 W
- Maximum Dimension (D x W x H): 99 x 1712 × 1022 mm
- Touch technology: High Precision IR
- Touch points: Up to 40
- Touch response time: ?10ms
- Weight: 42.07Kg

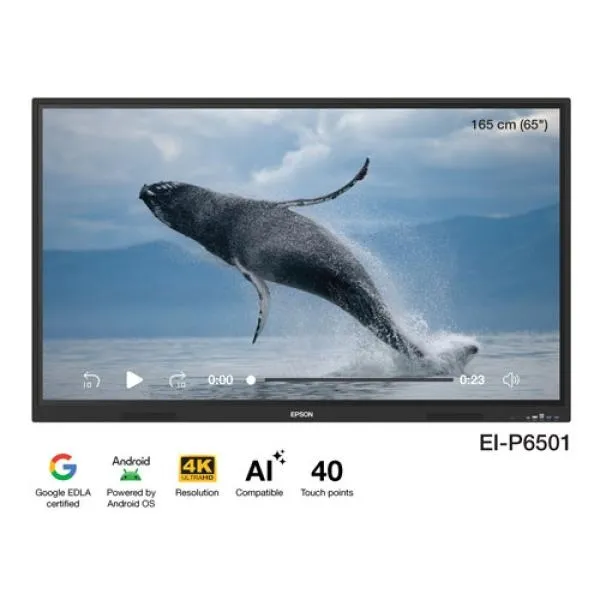

Epson EI P6501 65 Inch 5K UHD Interactive Panel
Epson EI P6501 65 Inch 5K UHD Interactive Panel Price Chennai, Datasheet, Specification, Dealers, Interactive Panel Chennai
- Brand: Epson
- Model No: EI P6501 65 Inch 5K UHD Interactive Panel
- Resolution: UHD 3840 × 2160 pixels (5K)
- Color depth: 10-bit
- Panel brightness (typical): typ 400nits
- Contrast ratio (typical): 1200:1
- Dynamic contrast ratio: 5000:1
- Color gamut: 72% NTSC
- Panel Type: IPS
- Screen size: 165 cms (65")
- Aspect Ratio: 16:09
- VGA: 1
- HDMI: (in) 3 × HDMI 2.0 (Front 1 & Rear 2)
- DisplayPort: 1 × 1.2a
- USB-A (3.0) x 3: Front 2 & Left side 1
- USB-A (2.0) x 2: Left side 1 & Left bottom 1
- USB-C: Front USB 3.1, PD 65 W w/o OPS, PD 15 W with OPS
- USB-B (for touch): 2 × 3.0 (Front 1 & Rear 1)
- VGA 3.5 mm Line in: Audio Input x 1
- OPS slot (for slot-in PC): 1
- Wi-Fi: Wi-Fi 6E, Wi-Fi slot
- Bluetooth: Bluetooth 5.3
- Ethernet: 2 (10 M/100 M/1000 Mbps)
- 3.5 mm Line in (2): Shared with Audio input
- RS-232: 1
- VGA 3.5 mm Line out: Earphone × 1
- HDMI: (out) 1 × HDMI 2.0
- USB Type A:
- USB-A (3.0) x 3; USB-A (2.0) x 2
- USB Type B:
- USB-B (for touch): 2 × 3.0
- Memory | Storage: 8 GB | 128 GB
- OS: Android 14 with EDLA & Google Play Store
- CPU: Octa Core, A72*4+A53*4
- Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F
- Storage temperature:-10°C ~ 60°C | 14°F ~ 140°F
- Operating humidity:20% ~ 80% RH non-condensing
- Direct Power On / Off:
- Direct Power On / Off: Yes
- ENERGY STAR: YES
- Power: AC 100-240 V 50/60 Hz
- Standby power consumtion: <0.5 W
- Typical power consumtion: 165.5 W
- Maximum Dimension (D x W x H): 98.8 x 1491 × 898.5 mm
- Touch technology: High Precision IR
- Touch points: Up to 40
- Touch response time: ?10ms
- Weight: 30.35Kg
