Acer server Dealers Chennai, Tamilnadu
Acer Altos BrainSphereTM R385 F4 Rack server
- CPU Processor type: AMD EPYC 7002 and 7001 series processor
- Up to 64 core, 128 threads per processor; TDP up to 200W
- Number of processors: 2
- On board Devices: Chipset System on Chip
- IPMI: ASPEED AST2500
- Graphics ASPEED AST2500 BMC
- Network controller: Dual 1GbE LAN ports with Intel I350 AM2,One 10/100/1000 management LAN port
- Memory: Memory slot 32 DIMM slots
- Memory type: 8 Channel, DDR4 RDIMM / LRDIMM
- Expansion slots PCIe: 2 x PCIe x16 slot (Gen3 x16 or x8), Full height half length
- 2 x PCIe x8 slots (Gen3 x0 or x8), Full height half length
- 2 x PCIe x8 slots (Gen3 x8), Full height half length (one PCIe x8
- slots will be occupied to support: 2 x U.2 ports for 24x2.5 SKU)
- 1 x PCIe x8 slots (Gen3 x0 or x8), Low profile half length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low profile half length
- 2 x OCP mezzanine slots (Type 1, P2, P3, P4, K2, K3)
- M.2: 1 x M.2 slot (M-key, w/PCIe Gen 3 x4, supports 2242 / 2260 / 2280 cards)
- I/O ports Front I/O ports: 2 x USB 3.0 ports
- Rear I/O ports: 1 x VGA port, 1 x COM port (RJ45 Type), 2 x USB 3.0 ports, 2 x RJ45 LAN, 1 x RJ45 management LAN port
- Management & Security:
- Server Management: IPMI 2.0, KVM with dedicated LAN, Altos Smart Server Manager,Smart Console remote monitoring
- System Security: 1 x TPM Header; Optional TPM 2.0 module (LPC Interface)
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Drive Bays: 12 x 3.5 SKU Front side: 12 x 3.5/2.5 SAS/SATA hot swappable bays for HDD/SSD
- 24 x 2.5 SKU Front side: 6 x 2.5 U.2, 18 x 2.5 SAS/SATA hot swappable bays for HDD/SSD
- Rear side: 2 x 2.5 SATA/SAS swappable HDD/SSD bays
- Power supply: 12 x 3.5 SKU ? 2 x 2000W redundant power supply, 80 PLUS Platinum
- 24 x 2.5 SKU ? 2 x 1200W redundant power supply, 80 PLUS Platinum
- Form factor: 2U, Rackmount
- Dimensions (D x W x H): 710 x 438 x 87 mm approximately
- Tested OS: Window Server 2019, 2016,Red Hat Enterprise Linux 7,VMware ESXI 6.7 Update 3
Acer Altos BrainSphereTM R369 F4 Rack server
- CPU Processor type: Intel 1st and 2nd Gen Xeon Scalable series processor, TDP Up to 205W
- Intel Xeon Platinum, Gold, Silver and Bronze series processor
- Number of processors: 2
- On board Devices: Chipset Intel C621 Express
- IPMI: ASPEED AST2500
- Graphics: ASPEED AST2500 BMC
- Network controller: Dual 1GbE LAN ports with Intel I350 AM2, One 10/100/1000 management LAN port
- Memory slot 24 DIMM slots
- Memory type: 6 Channel, DDR4 2933Mhz RDIMM / LRDIMM
- Memory density: RDIMM Up to 64GB, LRDIMM Up to 128GB
- Expansion slots PCIe: 2 x PCIe x8 slot (Gen3 x8), Low profile half length
- 1 x PCIe x16 slots (Gen3 x16), Low profile half length
- 2 x OCP mezzanine slots (PCIe Gen3 x 16, type P1, P2, P3, P4, K2, K3)
- I/O ports Front I/O ports: 2 x USB3.0 ports (for 4 x 3.5 sku), 1 x USB3.0 port (for 10 x 2.5 sku)
- Rear I/O ports: 1 x VGA port,1 x COM port (RJ45 Type),2 x USB 3.0 ports,2 x RJ45 LAN ports,1 x RJ45 management LAN port
- Cooler System: 8 x System Fan 40x40x56mm (23000rpm)
- Management & Security:
- Server Management: IPMI 2.0, KVM with dedicated LAN,Altos Smart Server Manager, Smart Console remote monitoring
- System Security: 1 x TPM Header ; Optional TPM 2.0 module (LPC Interface)
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Drive Bays: 4 x 3.5 sku ? 4 x 3.5/2.5 bay SAS/SATA hot swappable HDD/SSD + 1 x 2.5 Internal
- Fixed bay SATA HDD/SSD
- 10 x 2.5 sku 10 x 2.5 SATA or 8 x 2.5 SAS + 2 x 2.5 bay SATA HDD/SSD
- SAS card is required for SAS HDD/SSD support
- Power supply: 2 x 1200W redundant power supply, 80 PLUS Platinum
- 2 x 800W redundant power supply, 80 PLUS Platinum
- 2 x 550W redundant power supply, 80 PLUS Platinum
- Form factor: 1U, Rackmount
- Dimensions (D x W x H): 730 x 438 x 43.5 mm approximately
- Tested OS: Window Server 2019, 2016
- Red Hat Enterprise Linux 7.x and 8.0

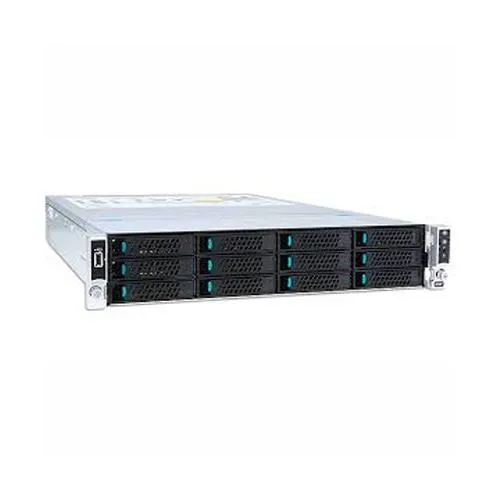

Acer Altos BrainSphereTM R389 F4 Rack Server
- CPU Processor type; Intel 1st and 2nd Xeon Scalable series processor, TDP Up to 205W(1)
- Intel Xeon Platinum, Gold, Silver and Bronze series processor
- Number of processors: 2
- On board Devices: Chipset Intel C621 Express
- IPM: ASPEED AST2500
- Graphics: ASPEED AST2500 BMC
- Network controller: Dual 1GbE LAN ports with Intel I350 AM2, One 10/100/1000 management LAN port
- Memory: Memory slot 24 DIMM slots
- Memory type: 6 Channel, DDR4 2933Mhz RDIMM / LRDIMM
- Memory density: RDIMM Up to 64GB, LRDIMM Up to 128GB
- Expansion slots PCIe: 2 x PCIe x16 slots (Gen3 x16 or x8), Full height half length
- 2 x PCIe x8 slots (Gen3 x0 or x8), Full height half length
- 2 x PCIe x8 slots (Gen3 x8), Full height half length
- 1 x PCIe x8 slot (Gen3 x0 or x8), Low height half length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Low height half length
- 2 x OCP mezzanine slots2 (PCIe Gen3 x 16, type P1, P2, P3, P4, K2, K3)
- I/O ports:
- Front I/O ports: 2 x USB 3.0 ports
- Rear I/O ports: 1 x VGA port 1 x COM port (RJ45 Type) 2 x USB 3.0 ports 2 x RJ45 LAN ports 1 x RJ45 management LAN port
- Management & Security:
- Server Management: IPMI 2.0, KVM with dedicated LAN, Altos Smart Server Manager, Smart Console remote monitoring
- System Security: 1 x TPM Header; Optional TPM 2.0 module (LPC Interface)
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Drive Bays: 12 x 3.5 Standard sku:Front side: 12 x 3.5/2.5 SAS/SATA hot swappable bays for HDD/SSD
- 12 x 3.5 GPU sku:Front side: 12 x 3.5/2.5 SAS/SATA hot swappable bays for HDD/SSD
- 24 x 2.5 Standard sku:Front side: 4 x 2.5 U.2 + 20 x 2.5 SAS/SATA hot swappable bays for HDD/SSD
- 12 x 3.5 GPU sku only:Rear side: 2 x 2.5 SATA/SAS swappable HDD/SSD bays (only GPU sku)
- Power supply: 2 x 1200W redundant power supply, 80 PLUS Platinum, 2 x 800W redundant power supply, 80 PLUS Platinum
- Form factor: 2U, Rackmount
- Dimensions (D x W x H): 730 x 438 x 87.5 mm approximately
- Tested OS: Window Server 2019, 2016, Red Hat Enterprise Linux 7.x and 8.0, VMware ESXI 6.7 Update 3

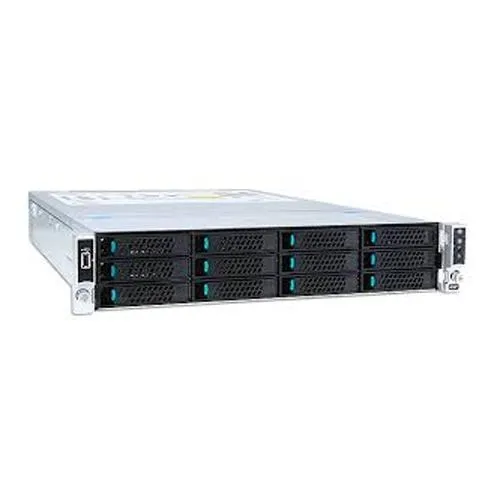

Acer Altos R380 F4 Rack Server
- Processor type: Up to 2 x Intel Xeon Processor Scalable Family
- Chipset: Intel C624 chipset
- Graphics: Integrated 2D video controller
- Memory: 16 MB DDR4 memory
- Memory type: Registered / Load Reduced DDR4 2666MT/s ECC memory
- Capacities: 8 / 16 GB DIMMs Registered, 32 / 64 GB DIMMs Load Reduced
- DIMM number: 24
- Max memory: 768 (RDIMM) / 1563GB (LRDIMM) (Processor SKU dependency)
- Expansion slots Three riser slots provide:
- Riser slot 1:
- 3 slot riser card: 2 x PCIe 3.0 ×8 (x16 connector) and 1 x PCIe 3.0 ×8 (x8 connector), or
- 2 slot riser card: 1 x PCIe 3.0 x16 (x16 connector) and 1 x PCIe 3.0 x 8 (x8 connector) [Optional]
- Riser slot 2:
- 3 slot riser card: 2 x PCIe 3.0 ×8 (x16 connector) and 1 x PCIe 3.0 ×8 (x8 connector), or
- 2 slot riser card: 1 x PCIe 3.0 x16 (x16 connector) and 1 x PCIe 3.0 x 8 (x8 connector) [Optional]
- Riser slot 3:
- 2 slot riser card: 1 x PCIe 3.0 ×8 (x8 connector) and 1 x PCIe 3.0 x 4 (x8 connector)
- 1 x OCP module expansion slot
- 1 x RAID module expansion slot
- Onboard ports Front:
- LED indicators: power, HDD activity, LAN, system ID
- VGA, 2 x USB 3.0 ports (for 8 x 3.5, 8 x 2.5 and16 x 2.5 SKUs)
- 1 x USB 2.0 port (for 12 x 3.5 and 24 x 2.5 SKUs)
- Rear:
- 2 x 10Gigabit LAN ports (RJ-45) [SKU dependent]
- Management port (RJ-45)
- Serial Port B (optional)
- Video port
- 3 x USB 3.0 ports
- Serial Port A (RJ-45)
- 2 x 2.5” SSDs (hot swappable, optional)
- Storage: 2 x M.2 (2280) connector – SATA / PCIe
- RAID:
- Intel ESRT2 SATA RAID 0, 1, 5, 10 (RAID 5 requires key) or
- Intel RSTe 5.0 software SATA RAID 0, 1, 5, 10 (Windows OS support only)
- Optional hardware SAS RAID card and SAS RAID module
- LAN controller: Integrated dual port 10GbE/1GbE ports (Intel X722, Intel X557 AT2 PHY) or optional 1GbE, 10GbE, 25GbE Ethernet card or module
- Security and service features:
- Administrator/user password, Power-on password, Setup password, Device boot control
- Secure command line interface (SSH), Secure browser interface (Secure socket layer - SSL support)
- Secure IPMI LAN interface (Authentication, Integrity, and Confidentiality algorithm), Intel VT-d, VT-x
- Sub system availability:
- Power supply: up to two 1300W 80 PLUS Titanium certified AC swappable power supply units, 1+0/1+1 redundant or 2+0 combined power
- System cooling: Six managed, hot swappable fans keep the system running cool at all times
- Storage:
- Hard disk form factor: 3.5 or 2.5
- Type: SAS / SATA / SSD / U.2 PCIe NVMe SSD (SKU dependent)
- Front:
- 2.5 SKUs: 8 x 2.5 hot swappable bays, 16 x 2.5 hot swappable bays, 24 x 2.5 hot swappable bays
- 3.5 SKUs: 12 x 3.5 hot swappable bays, 8 x 3.5 hot swappable bays
- Rear: up to 2 x 2.5 SSDs (optional)
- Internal: up to 2 x 2.5 SSDs (optional)
- Chassis: Form factor: 2U rack optimized, w/ sliding rails
- Dimensions: 439 (W) x 769 (D) x 89 (H) mm
- OS support: Microsoft Windows Server 2016 / 2012 R2
- SUSE Linux Enterprise Server 12 SP2
- Red Hat Enterprise Linux 7.3
- VMware ESXi 6.5
- Server management utilities and applications:
- Embedded BMC controller with IPMI 2.0 compatibility
- System ID LED buttons, System Health LED
- Acer Smart Server Manager
- Smart Console remote monitoring and optional KVM over IP management to OS level
- Warranty: 3 year standard warranty or choose extended warranties and services1
Acer Altos R380 F3 Rack server
- Processor type: Up to 2 x Intel Xeon E5 2600 v3/v4 series
- Chipset: Intel C612 chipset
- Graphics: Integrated 2D video controller
- Memory: 16 MB DDR3 memory
- Memory type: Registered / Load Reduced DDR4 ECC memory
- Capacities: 8 / 16 / 32 /64 GB DIMMs Registered, 32 /64 GB DIMMs Load Reduced
- DIMM number: 24
- Max memory: 1536GB (LRDIMM) or 768 GB (RDIMM)
- Expansion slots Three riser slots provide:
- Riser slot 1:
- 3 slot riser card: 2 x PCIe 3.0 ×8 (x16 connector) and 1 x PCIe 3.0 ×8 (x8 connector), or
- 2 slot riser card: 1 x PCIe 3.0 x16 (x16 connector) and 1 x PCIe 3.0 x 8 (x8 connector)
- Riser slot 2:
- 3 slot riser card: 2 x PCIe 3.0 ×8 (x16 connector) and 1 x PCIe 3.0 ×8 (x8 connector), or
- 2 slot riser card: 1 x PCIe 3.0 x16 (x16 connector) and 1 x PCIe 3.0 x 8 (x8 connector)
- Riser slot 3:
- 2 slot riser card: 1 x PCIe 3.0 ×8 (x8 connector) and 1 x PCIe 2.0 x 4 (x8 connector)
- 1 x I/O module expansion slot
- 1 x SAS RAID module expansion slot
- Onboard ports Front: LED indicators: power, HDD activity, LAN, system ID
- Front VGA, 2 x USB 3.0 ports (8 x 3.5/16 x 2.5)
- 1 x USB 2.0 port (12 x 3.5/24 x 2.5)
- Rear: 2 x Gigabit or 10Gigabit LAN ports (RJ-45)
- Management port (RJ-45)
- PCIe expansion via riser card
- Serial Port B (optional)
- Video port
- 3 x USB 3.0 ports
- Serial Port A (RJ-45)
- 2 x 2.5 SSDs (hot swappable, optional)
- SAS RAID: Intel ESRT2 SATA RAID 0,1,5,10 (RAID 5 requires key) or
- Intel RSTe software SATA RAID 0,1,5,10 (Windows OS support only)
- Optional hardware SAS RAID
- LAN controller: Dual port Intel I350 Ethernet Controller (1GbE) or Dual port Intel X540 Ethernet Controller (10GbE)
- Security and service features:
- Administrator/user password, Power on password, Setup password, Device boot control
- Secure command line interface (SSH), Secure browser interface (Secure socket layer SSL support)
- Secure IPMI LAN interface (Authentication, Integrity, and Confidentiality algorithm)
- Sub system availability:
- Power supply: 1+0/1+1 redundant, hot swappable power supply units Three power supply options:
- 750 W 80 PLUS Platinum certified AC power supply
- 1100 W 80 PLUS Platinum certified AC power supply
- 750 W 80 PLUS Gold certified DC power supply
- System cooling: Six managed, hot swappable fans keep the system running cool at all times
- Storage Hard disk form factor: 3.5 or 2.5
- Type: SAS / SATA / SSD with hot plug capability
- Front: up to 12 x 3.5 or 24 x 2.5 hard drives or SSDs (option to replace 4 hard drives with 4 PCIe SFF/NVMe SSDs)
- Rear: up to 2 x 2.5 SSDs (optional)
- Internal: up to 2 x 2.5 SSDs (optional)
- Slim line optical drive (optional)
- Chassis:
- Form factor: 2U rack optimized
- Removable media bays : Optional slim line ODD drive
- Dimensions : 750 W SKU 439 (W) x 769 (D) x 89 (H) mm (17.25 x 30.25 x 3.5 inches)
- 1100 W SKU439 (W) x 793.8 (D) x 89 (H) mm (17.25 x 31.25 x 3.5 inches)
- OS support: Microsoft Windows Server 2016/ 2012 R2
- SUSE Linux Enterprise Server 11 SP3
- Red Hat Enterprise Linux 6.5
- VMware ESXi 5.5
- Server management utilities and applications:
- Acer Smart Server Manager
- Embedded BMC controller with IPMI 2.0 compatibility
- System ID LED buttons, System Health LED
- Smart Console remote monitoring and optional KVM over IP management to OS level
- Optional Local Control Panel
- Warranty: 3 year standard warranty or choose extended warranties and services

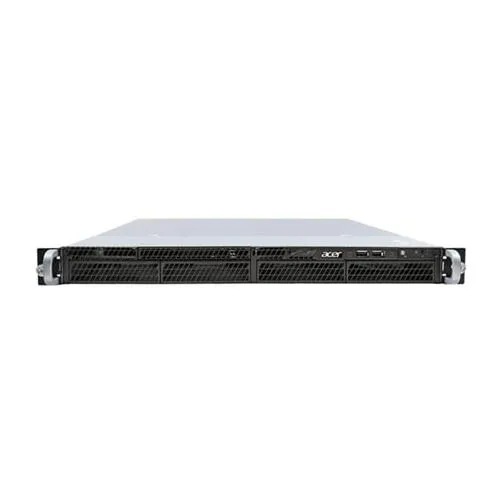

Acer Altos R360 F3 Rack server
- Processor type: Up to 2 x Intel Xeon E5 2600 v3/v4 series
- Chipset: Intel C612 chipset
- Graphics: Integrated 2D video controller
- Memory: 16 MB DDR3 memory
- Memory type: Registered / Load Reduced DDR4 ECC memory
- Capacities: 8 / 16 / 32 /64 GB DIMMs Registered, 32 /64 GB DIMMs Load Reduced
- DIMM number: 24
- Max memory: 1536GB (LRDIMM) or 768 GB (RDIMM)
- Expansion slots: Two riser cards provide 1 x PCIe 3.0 ×16 (CPU 1) and 1 x PCIe 3.0 ×16 (CPU2)
- 1 x I/O module expansion slot
- 1 x SAS RAID module expansion slot
- Onboard ports Front:
- LED indicators: power, HDD activity, LAN, system ID,Front VGA, 2 x USB 3.0 ports
- Rear: 2 x Gigabit or 10Gigabit LAN ports (RJ-45)
- Management port (RJ-45)
- PCIe expansion via riser cards
- Video port
- 3 x USB 3.0 ports
- Serial Port B (optional)
- SAS RAID: Intel ESRT2 SATA RAID 0,1,5,10 (RAID 5 requires key) or
- Intel RSTe software SATA RAID 0, 1, 5, 10 (Windows OS support only)
- Optional hardware SAS RAID
- LAN controller: Dual port Ethernet controller
- Intel X540 (Dual port 10GbE) or Intel I350 (Dual port 1GbE)
- Security and service features: Administrator/user password
- Power on password, Setup password, Device boot control
- Secure command line interface (SSH), Secure browser interface (Secure socket layer - SSL support)
- Secure IPMI LAN interface (Authentication, Integrity, and Confidentiality algorithm
- 1+0/1+1 redundant, hot swappable power supply units, Two power supply options
- Power supply: - 750 W 80 PLUS Platinum certified AC power supply
- - 750 W 80 PLUS Gold certified DC power supply
- System cooling: Six, dual rotor system fans keep the system running cool at all times
- Storage: Hard disk form factor: 3.5 or 2.5
- Type: SAS / SATA / SSD with hot plug capability
- Up to 4 x 3.5 or 8 x 2.5 hard drives or SSDs (with an option to replace four hard drives with four PCIe SFF/NVMe SSDs)
- Slim line optical drive (optional)
- Chassis: Form factor: 1U rack optimized
- Dimensions: 439 (W) x 769 (D) x 43.2 (H) mm (17.25 x 30.25 x 1.7 inches)
- OS support: Microsoft Windows Server 2016/ 2012 R2
- SUSE Linux Enterprise Server 11 SP3
- Red Hat Enterprise Linux 6.5
- VMware ESXi 5.5
- Server management utilities and applications: Acer Smart Server Manager
- Embedded BMC controller with IPMI 2.0 compatibility
- System ID LED buttons, System Health LED
- Smart Console remote monitoring and optional KVM over IP management to OS level
- Optional Local Control Panel
- Warranty: 3 year standard warranty or choose extended warranties and services1
Acer Altos AT350 F3 Tower Server
- Processor type: Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 & v4 family
- Chipset: Intel C612 chipset
- Graphics: ASPEED 2400, 128 MB shared video memory, 16 MB dedicated
- Memory: 16x 288 pin DDR4 DIMM slots
- Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
- Expansion slots:
- 3x PCI E 3.0 x16 (Full height, Full length)
- 3x PCI E 3.0 x8 (Full height, Full length)
- Rear USB: 2x USB 3.0 + 2x USB 2.0
- Front USB: 2x USB 2.0
- I/O ports:
- USB Header: 2x 3.0, 2x 2.0, 1x Type A
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
- 1x VGA port
- Serial port: 1x COM/Serial
- AHCI SATA :
- 8x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
- 2x SATA3 powered ports that support SATA DOM
- Network controllers :
- Intel i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- 1x Realtek RTL8291F PHY (dedicated IPMI)
- IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED 2400
- Front Panel: Power On/Off button
- System Reset button
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power Fail LED
- 2x USB Ports
- Sub system availability:
- Power supply: 920W high efficiency ( Platinum Level ,94%+) AC-DC Redundant power supplies with PMBus and I2C
- System cooling:
- 3x 8cm hot swap redundant PWM cooling fans
- 2x 8cm hot swap exhaust Fans and air shroud
- Drive Bays
- 8x 3.5 Hot-swap SAS/SATA Drive Trays
- 2x 5.25 Peripheral Drive Bays
- 1x 5.25 Bay that fits 3.5" bay devices
- Chassis:
- Form factor: 4U Rackmountable/ Tower, Optional Rackmount Kit
- Dimensions (WxDxH): 7.0 (178mm) x 25.5 (648mm) x 17.2 (437mm)
- Weight:
- Net Weight: 56 lbs (25.6 kg)
- Gross Weight: 73.5 lbs (33.6 kg)
- Operating System support: Windows Server2008, Windows Server 2008 R2
- Windows Server 2012, Windows Server2012R2
- Red Hat Enterprise Linux 7, VMware ESXi 5.5U2
Acer Altos T310 F4 Tower Server
- Processor type: Intel Xeon E3-1200 v5/ v6 processors
- 6th and 7th Generation Intel Core
- 6th and 7th Generation Intel i3
- Celeron and Intel Pentium
- Chipset: Intel C232 chipset
- Graphics: Embedded controller
- 32 MB dedicated memory
- Number of processors: 1 (4 or 2 cores)
- Memory: 4 x DIMM slots (2 DIMMs per channel), Up to 64 GB, using unbuffered DDR4 ECC DIMM
- Expansion slots: PCIe 3.0 x8 (x16 connector)
- PCIe 3.0 x8 (x8 connector)
- PCIe 3.0 x4 (x8 connector)
- Onboard ports Front: 2 x USB 3.0 ports
- Rear: Video port, Serial port
- 2x Gigabit LAN port (RJ-45)
- 1x IPMI LAN port (RJ45)
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- SATA RAID1: Intel C232 chipset with RSTe RAID support, SATA RAID 0, 1, 5, 10 default
- SAS RAID: SAS RAID 0, 1, 5, 10 support via optional SAS RAID add on card
- Network controller: Dual ports Gigabit Ethernet controller Intel I210AT
- Security and service features:
- Power/reset button lockout, Optional TPM 1.2 , Administrator / user password , Power-on password , Setup password , Device boot control , BIOS write-protected
- Sub system availability:
- Power supply: 650 W 80 PLUS Gold-level fixed power supply
- System cooling: Active CPU heat sink
- Fixed system fan
- Storage: Up to 4 x 3.5 SATA or up to 4 x 3.5 SAS
- Optional half height SuperMulti optical drive
- Chassis:
- Form factor: Extended ATX (12” X 13”)
- Drive bays: 3x 5.25 bay
- 4x 3.5 or 2.5 how swap HDD
- Dimensions: 553 x 198 x 425 (mm) , 20.9 x 7.8 x 16.7
- Weight: 11.0 kg
- Operating System: support Microsoft Windows Server 2016
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Red Hat Enterprise Linux 7.1
- Novell SUSE Linux Enterprise Server 12
- VMware ESXi 6.0 update 1
- Server management Software:
- Embedded BMC controller with IPMI 2.0 compatibility
- Smart Console remote monitoring
- Acer Smart Server Manager
- Warranty: 1 year onsite intervention, and 2nd and 3rd year free spare parts standard warranty or choose extended warranties and services2
Acer Altos T110 F4 Tower Server
- Processor type: Intel Xeon E3-1200 v5 v6 processors
- 6th and 7th Generation Intel Core i3
- 6th and 7th Generation Intel Celeron and Intel Pentium
- Chipset: Intel C232 chipset
- Graphics Embedded controller: 32 MB dedicated memory
- Number of processors: 1 (4 or 2 cores)
- Memory: 4 x DIMM slots (2 DIMMs per channel), Up to 64 GB, using unbuffered DDR4 ECC DIMM
- Expansion slots: PCIe 3.0 x8 (x16 connector)
- PCIe 3.0 x8 (x8 connector)
- PCIe 3.0 x4 (x8 connector)
- Onboard ports Front: 2 x USB 2.0 ports
- Rear: Video port, Serial port, 2x Gigabit LAN port (RJ-45)
- 1x IPMI LAN port (RJ45) 2 x USB 3.0 ports, 2 x USB 2.0 ports
- SATA RAID1: Intel C232 chipset with RSTe RAID support, SATA RAID 0, 1, 5, 10 default
- SAS RAID: SAS RAID 0, 1, 5, 10 support via optional SAS RAID add on card
- BMC: Aspeed AST2400
- Network controller: Dual ports Gigabit Ethernet controller Intel I210AT
- Security and service features:
- Power/reset button lockout , Optional TPM 1.2/2.0 , Administrator / user password , Power on password , Setup password ,Device boot control , BIOS write-protected
- Sub system availability :
- Power supply: 300 W 80 PLUS Bronze level fixed power supply
- System cooling: Active CPU heat sink
- Fixed system fan
- Storage: Up to 4 x 3.5 SATA or up to 4 x 3.5 SAS
- Optional half height SuperMulti optical drive
- Chassis:
- Form factor: Micro ATX Tower
- Removable media bays: 2 x 5.25 bays
- Dimensions: 184 (W) x 425 (D) x 362 (H) mm (7.25 x 16.75 x 14.25 inches) with bezel
- Weight: 18.1 kg (40 lbs.)
- Operating System support: Microsoft Windows Server 2016
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Red Hat Enterprise Linux 7.1
- Novell SUSE Linux Enterprise Server 12
- VMware ESXi 6.0 update 1
- Server management utilities and applications:
- Embedded BMC controller with IPMI 2.0 compatibility
- Smart Console remote monitoring
- Warranty: 1 year onsite intervention, and 2nd and 3rd year free spare parts standard warranty or choose extended warranties and services
Acer Altos BrainSphereTM T110 F5 Tower Server
- Processor type: Intel Xeon E 2200(1) and Xeon E-2100 Processors
- Intel Gen 8th and 9th Core i3 series
- Number of processors: 1
- On board Devices: Chipset Intel C242
- SATA: Intel C242 controller for 6 SATA3 (6 Gbps) ports
- SATA RAID(2): Intel C242 chipset with RSTe RAID support for SATA RAID 0, 1, 5, 10
- SAS RAID(3): SAS RAID 0,1,5, 10 support via optional SAS RAID add on card
- IPMI: ASPEED AST2500 (2D Controller)
- Graphics: ASPEED AST2500 BMC (2D Controller)
- Network controller: Dual 1GbE LAN with Intel I210
- Memory: Memory slot 4 DIMM slots
- Memory type: DDR4 2666/2400/2133MHz ECC Unbuffered memory
- Expansion slots: PCIe: 1 x PCI-E 3.0 x8 (in x16), 2 x PCI-E 3.0 x4 (in x8)
- M.2: 1 M.2 2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports:
- Front I/O ports: 2 x USB 3.2 Gen1, 2 x USB 2.0
- Rear I/O ports: 2 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x VGA port
- 2 x RJ45 Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- 1 x COM port
- On board port: 1 x USB 3.2 Gen1 Type A
- Management & Security:
- Management: IPMI 2.0, KVM with dedicated LAN
- Smart Console remote monitoring (Optional)
- Smart Server Manager (Optional)
- TPM: 1 TPM Header (optional for TPM module)
- Drive Bays:
- Media bays: 2 x 5.25 bay
- Storage bays: Up to 4 x 3.5 Bay (Max)
- Note: Need additional 2nd 3.5 bracket to support 3rd and 4th SATA HDD
- Power Supply: 500W (80Plus Bronze) Fixed
- System Cooling: Active Heat-Sink with Fan, Fixed System Fan
- Form Factor: Tower
- Dimension (D x W x H): 425 x 184 x 362 mm approximately
- Software: Altos BrainSphereTM AI Development Platform API
- Opearting System: Microsoft Windows Server 2019 / 2016, Red Hat Enterprise Linux
Acer Altos BrainSphereTM T310 F5 Tower Server
- Processor type: Intel Xeon E 2200(1) and Xeon E 2100 Processors
- Intel Gen 8th and 9th Core i3 series
- Number of processors: 1
- On board Devices :
- Chipset: Intel C242
- SATA: 6 SATA3 (6 Gbps) ports (via Intel C242 controller)
- SATA RAID(2): Intel C242 chipset with RSTe RAID support for SATA RAID 0, 1, 5, 10
- SAS RAID(3): SAS RAID 0,1,5, 10 support via optional SAS RAID add on card
- IPMI: ASPEED AST2500 (2D Controller)
- Graphics: ASPEED AST2500 BMC (2D Controller)
- Network controller: Dual 1GbE LAN with Intel I210
- Memory: Memory slot 4 DIMM slots
- Memory type: DDR4 2666/2400/2133MHz ECC Unbuffered memory
- Expansion slots PCIe: 1 PCI-E 3.0 x8 (inx16), 2 PCI-E 3.0 x4 (in x8)
- M.2:1 M.2 2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports:
- Front I/O ports: 2 x USB 3.2 Gen1
- Rear: I/O ports
- 2 x RJ45 Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- 1 x COM port
- 2 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x VGA port
- On board port: 1 x USB 3.2 Gen1 Type A
- Management & Security:
- Server Management: IPMI2.0, KVM with dedicated LAN, Altos Smart Server Manager
- Smart Console remote monitoring
- System Security: 1 TPM Header (Optional TPM 2.0 module)
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Media bays: 3 x 5.25 bay
- Storage bays: 4 x 3.5 hot swappable bays
- Power supply: 650W (80Plus Gold) fixed
- 550W (80Plus Platinum) 1+1 redundant power supply
- Form factor: Tower
- Dimensions (D x W x H): 553 x 198 x 425 mm approximately
- Tested OS: Window Server 2019, 2016, Red Hat Enterprise Linux 7.6
Acer Altos BrainSphereTM T350 F4 Tower Server
- Processor type: 2nd Generation Intel Xeon Scalable Processors
- Number of processors: 2
- On board Devices:
- Chipset: Intel C621
- SATA: 14 SATA3 (6 Gbps) ports (via Intel C621 controller)
- SATA RAID1: Intel C621 chipset with RSTe RAID support for SATA RAID 0,
- 1, 5, 10 (supports Windwos OS Only)
- IPMI: ASPEED AST2500
- Graphics: ASPEED AST2500 BMC
- Network controller: Dual 1GbE LAN with Intel® X722
- Memory Memory slot 16 DIMM slots
- Memory type: DDR4 2933/2666 ECC Registered memory
- Up to 2TB Intel Optane DC Persistent Memory in memory
- mode (Cascade Lake only)
- Expansion slots PCIe: 4 PCI-E 3.0 x18, 2 PCI-E 3.0 x8
- M.2 1 M.2 2260/2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports Front I/O ports: 2 USB 3.0 ports
- Rear I/O ports: 1 VGA port
- 1 COM port
- 3 RJ45
- 2 USB 2.0 ports
- 2 USB 3.0 ports
- Management & Security :
- Server Management: IPMI2.0, KVM with dedicated LAN
- Altos Smart Server Manager
- Smart Console remote monitoring
- System Security: 1 TPM Header, Optional TPM 2.0 module
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Drive Bays: Storage bays 8 3.5 SAS/SATA hot swappable bays for HDD/SSD
- Media bays: 3 5.25 media bays
- Power supply: 550W/800W/1200W (80Plus Platinum) 1+1 redundant power supply (for option)
- Form factor: Tower or Rackmount (via rackmount kit)
- Dimensions (D x W x H): 620 x 220 x 425 mm approximately
- Tested OS: Window Server 2019, 2016, Red Hat Enterprise Linux 7.3
Acer Altos AR580 F3 Rack server
- Processor type: Up to 4 x Intel Xeon processor E7 8800 v3 /v4 E7 4800 v3/v4 family (up to 18 Cores and 165W TDP)
- Chipset: Intel C602J chipset
- Graphics: ASPEED AST2400 BMC
- Memory: 32x 240 pin DDR3 DIMM slots, Supports up to 2TB DDR3 ECC LRDIMM in 32 DIMM slots
- 1600/1333/1066/800MHz ECC DDR3 SDRAM 72 bit, 240 pin gold plated DIMMs
- DIMM size: 64GB, 32GB, 16GB, 8GB, 4GB
- Drive bays: 6x 3.5 Hot swap Drive Bays
- DVD ROM: 1x Slim DVD ROM (Optional)
- Expansion slots: 2x PCI E 3.0 x16 Low profile slot,2x PCI E 3.0 x8 Low profile slot
- Onboard ports Front: Power On/Off button, System Reset button, Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Rear: 3 x USB 2.0 ports, 2x RJ45 Gigabit Ethernet LAN ports
- 1x dedicated LAN port for IPMI
- 1x VGA Port
- 1 Fast UART 16550 serial port
- SATA RAID: SATA2 (3Gbps) with RAID 0, 1, 5, 10, SATA3 (6Gbps) with RAID 0, 1
- LAN controller: Intel i350 Dual port GbE LAN, 1x Realtek RTL8201F PHY (dedicated IPMI)
- Security features: Chassis intrusion alert, Optional TPM (v1.2-compliant)
- Sub-system availability:
- Power supply: Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
- System cooling :3x 8cm Hot swap Cooling fans
- Storage: 6 x 3.5 SATA/SAS hot swappable HDDs
- Chassis:
- Form factor: 2U rack optimized
- Removable media bays: Optional slim line ODD drive
- Dimensions : 437 (W) x 709 (D) x 89 mm (H) ( 17.2 x 27.9 x 3.5 inches)
- Weight: Net Weight: 40 lbs (18.1 kg)
- Gross Weight: 66.5 lbs (30.2 kg)
- OS support: Microsoft Windows Server 2016
- Microsoft Windows Server 2012
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2008 R2
- Red Hat Enterprise Linux 7.1
- Warranty: 3 year standard warranty or choose extended warranties and services5
- Regulatory compliance: Emissions classification (EMC)FCC (Class A) CE (Class A)
- Industry standard compliance / safety: CB
Acer Altos BrainSphere R320 F5 Rack Server
- CPU Processor type: Intel Xeon E 2200(1) and Xeon E 2100 Processors
- Intel Gen 8th and 9th Core i3 series
- Number of processors: 1
- On board Devices:
- Chipset:Intel C242
- SATA: Intel C242 controller for 6 SATA3 (6 Gbps) ports
- SATA RAID(2): Intel C242 chipset with RSTe RAID support for SATA RAID 0, 1, 5, 10
- IPMI: ASPEED AST2500 (2D Controller)
- Graphics: ASPEED AST2500 BMC (2D Controller)
- Network controller: Dual 1GbE LAN with Intel I210
- Memory: Memory slot 4 DIMM slots
- Memory type: DDR4-2666/2400/2133MHz ECC Unbuffered memory
- Expansion slots: PCIe 1 PCI-E 3.0 x16 (thru Riser Card)
- M.2: 1 M.2 2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports :
- Front I/O ports: 2 x USB 3.2 Gen1
- Rear I/O ports: 2 x RJ45 Ethernet LAN ports, 1 x RJ45 Dedicated IPMI LAN port
- 1 x VGA port
- 2 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 COM port
- On board ports: 1 x USB 3.2 Gen1 Type A
- Management & Security:
- Management: IPMI 2.0, KVM with dedicated LAN
- Smart Console remote monitoring
- Smart Server Manager
- TPM: 1 TPM Header (optional for TPM module)
- Drive Bays: Media bays 1 x Optical Disk Drive
- Storage bays: 4 x 3.5 hot swappable bays + 1 x 2.5 bay
- Power Supply: 315W (80Plus Gold) Fixed or 300W (80Plus Gold) 1+1 Redundant Power Supply
- System Cooling: Passive Heat-Sink with Air-duct,4 x Fixed system fan
- Form Factor: Form factor 1U Rack
- Dimension (D x W x H): 711 x 482.6 x 44.4 (mm)
- Software: Altos BrainSphereTM AI Development Platform API
- Operating System: Microsoft Windows Server 2019 / 2016, Red Hat Enterprise Linux
