Dell Storage
Dell Storage
Dell PowerVault RD1000 removable Disk Drive
- Chassis :
- RD1000 Internal Devices :
- Form Factor: 5.25 inch internal
- Height: 41.4 mm (1.63 inch)
- Width: 146.0 mm (5.75 inch)
- Depth: 171.9 mm (6.77 inch) including bezel
- Weight: 635 g (1.40 lbs)
- Form Factor: 3.5 inch internal
- Height: 41.4 mm (1.63 inch)
- Width: 101.6 mm (4.00 inch)
- Depth: 159.4 mm (6.28 inch) including bezel
- Weight: 408 g (0.90 lbs)
- RD1000 Media :
- Form Factor: Removable Cartridge
- Height: 23.68 mm (0.93 inch)
- Width: 86.6 mm (3.4 inch)
- Depth: 119.18 mm (4.69 inch)
- Weight: 173 g (0.38 lbs)
- Environmental Operating Conditions :
- Temperature :
- Operational: 10 to 40°C
- Non-Operational: -40 to 65°C
- Thermal Gradient :
- Operational: 10°C/hour
- Non-Operational: 20°C/hour
- Relative Humidity :
- Operational: 20 to 80%, non-condensing
- Non-Operational: 10 to 90%, non-condensing
- Maximum Wet Bulb Temperature
- Operational: 29°C, non-condensing
- Non-Operational: 38°C, non-condensing
- Altitude
- Operational: -50 ft to 10,000 ft
- Non-Operational: -50 ft to 35,000 ft
- Vibration
- Operational: sine vib 0.25G peak, 3-200 Hz
- Non-Operational: random vib 1.54G RMS
- Shock
- Operational: half sine 31G 2.6ms
- Non-Operational: half sine 71G 2 ms
- Media :
- RD1000 Media Technical Specifications:
- 2TB Media :
- Capacity (Native): 2TB
- Average sustained transfer rate: Internal SATA 30 MBps / External USB3.0 80 MBps
- Burst transfer rate: Internal SATA 1.5 Gbps / External USB3.0 5 Gbps
- Average access time (msec): 15
- Function: Removable disk drive
- Logical block size: 512 bytes
- Support file system: ext2, ext3, FAT32 and NTFS (Default)
- Unrecoverable error rate: 1 error per 10^14 bits read
- MTBF Internal USB Device: 550,000 hours
- 1TB Media :
- Capacity (Native): 1TB
- Average sustained transfer rate: Internal SATA 30 MB/s / External USB 3.0 80 MB/s
- Burst transfer rate: Internal SATA 1.5 Gbps / External USB 3.0 5 Gbps
- Average access time (msec): 15
- Function: Removable disk drive
- Logical block size: 512 bytes
- Support file system: ext2, ext3, FAT32 and NTFS (Default)
- Unrecoverable error rate: 1 error per 10^14 bits read
- MTBF Internal USB Device: 550,000 hours
- Media Types : RD1000
- Power : Internal RD1000 Devices
- Voltage Tolerance: +5VDC ±5%, +12VDC ±10%
- Amperage Rating: 1.8A, 0.005A
- Regulatory :
- Product Safety, EMC and Environmental Datasheets
- Dell Regulatory Compliance Home Page
- Dell and the Environment
- Reliability :
- Unrecoverable error rate: 1 error per 10^14 bits read
- MTBF Internal USB Device: 550,000 hours
- Software :
- Retrospect backup software
- Server Compatibility :
- Dell and x86 IBM legacy, Lenovo and HP servers For a complete list of servers, refer to the Dell PowerVault Tape
- Storage : With two RD1000 removable media: up to 4TB (native)
Dell Storage MD1420 Direct Attached Storage
- Connectivity
- Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 or PERC H840 (4 enclosures per port, single path)
- Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 or PERC H840 (4 enclosures connected to both ports via redundant path
- cabling)
- Connectivity per EMM
- 4 mini-SAS HD connector for connection to the host or expansion
- Service management:
- USB mini b connector (for factory use only)
- Dimensions & Weight
- Height x width x depth
- MD1400: 8.7 cm (3.43") x 48.2 cm (18.98") x 59.2 cm (23.3") (depth includes PSU handle)
- MD1420: 8.7 cm (3.43") x 48.2 cm (18.98") x 53.9 cm (21.22") (depth includes PSU handle)
- Weight:24.2 kg (53.35 lb) (maximum configuration)
- 8.8 kg (19.4 lb) (empty)
- Environmental Operating Conditions
- (A)Temperature
- Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
- Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
- (B)Relative Humidity:
- Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
- Storage: 5% to 95% (non-condensing)
- (C)Altitude:
- Operating: -16 to 3048 m (-50 to 10,000 ft)
- Storage: -16 to 10,600 m (-50 to 35,000 ft)
- Expansion Capacity
- PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
- Management
- Enclosure Management Modules (EMM)
- 2 EMM provide redundant enclosure management capability
- Power
- Wattage – also supports DC power: AC – 600W; DC – 700W
- Host heat dissipation: AC – 2047 BTU/hr; DC – 2388 BTU/hr
- Input voltage range: 100-240 VAC, auto-sensing; 48 V DC
- Frequency range:50/60 Hz
- Amperage:8.6 A at 100 V, 4.3 A at 240 V
- Supported continuous consumption:
- Up to 1.2 A at +5V
- Up to 0.5 A at +12V
- RAID
- RAID levels 0, 1, 5, 6, 10, 50 and 60
- Rack Support
- Dell ReadyRails II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
- Storage
- Drive type
- 2.5" SAS, NL-SAS, SSD, SED
- Maximum Raw Capacity (per enclosure)
- Up to 57.6TB when using 24 x 2.4TB NL-SAS
- 2.5" HDDs
Dell PowerVault MD1220 Storage
- Operating System: Refer to the PERC RAID Card details for supported Operating Systems PERC H810
- Back-Panel Connectors :
- (A)SAS connectors (per EMM):
- 1 SAS (SFF 8088) "IN" connector for connection to the host
- 1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure
- (B) Serial connector (per EMM):
- 1 6-pin UART mini-DIN connector (for factory use only)
- Chassis
- Height: 8.7cm (3.43 inches)
- Width: 48.2cm (18.98 inches)
- Depth: 54.1 (21.30 inches)
- Weight: 23.31 kg (51 lb) (maximum configuration)
- 8.61 kg (19 lb) (empty)
- Connectivity :
- Support for the following configurations:
- (A)Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)
- (B)Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)
- (C)Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 11 and a separate connectivity to drives 12 through 23
- Environmental Operating Conditions :
- (A)Temperature
- Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
- Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
- Supports Fresh Air cooling, up to 35 degrees Celsius
- (B)Relative humidity
- Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
- Storage: 5% to 95% (non-condensing)
- (C)Altitude
- Operating: -16 to 3048 m (-50 to 10,000 ft)
- Storage: -16 to 10,600 m (-50 to 35,000 ft)
- LED Indicators :
- (A)Front panel
- 1 two-color LED indicator for system status
- 2 single-color LED indicators for power and split mode
- (B)Hard-drive carrier
- 1 single-color activity LED
- 1 two-color LED status indicator per drive
- (C)EMM
- 3 two-color LED status indicators: one for each of the EMM SAS ports and one for the EMM status
- 1 single-color Unit Identification LED for each EMM
- (D)Power supply/cooling fan module
- 3 LED status indicators for Power supply/cooling fan fault, AC power, and DC power
- Management : Enclosure Management Modules (EMM): 2 EMM modules provide redundant enclosure management capability
- Power : Two fully redundant power supplies; supports DC power
- (A)Wattage: AC - 600 W; DC - 700 W
- (B)Heat dissipation: AC - 2047 BTU/hr; DC - 2388 BTU/hr
- (C)Voltage: 100-240VAC; 48V DC
- (D)Frequency: 50/60Hz
- (E)Amperage: 8.6 A at 100 V, 4.3 A at 240 V
- (F)Available Hard Drive Power (per slot)
- Supported drive power consumption (continuous):
- up to 1.2 A at +5V
- up to 0.5 A +12V
- RAID : PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.
- See PERC H800 server compatability matrix for a list of currently supported servers
- Storage :
- (A)Drives:
- Up to twenty-four (24) 2.5-inch hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K, 15K rpm and SAS Solid State Drives (SSDs).
- (B)Drive performances and capacities
- (I)2.5” 6Gbps SAS:
- HDD 15K – 146GB, 300GB, 600GB
- HDD 10K – 300GB, 600GB, 900GB, 1.2GB
- HDD 10K 512e – 1.8TB
- HDD 7.2K – 500GB, 1TB
- SSD – 200GB, 800GB value SLC
- SSD – 400GB mainstream SLC
- SSD – 800GB RI MLC
- SSD – 200GB, 400GB WI SLC
- SSD – 2TB eMLC
- (II)2.5” 12Gbps SAS
- HDD 15K – 600GB
- HDD 7.2K NL-SAS 512e – 2TB
- SSD – 200GB, 400GB, 800GB 1.6TB MU MLC
- SSD – 200GB, 400GB, 800GB WI MLC
- SSD – 800GB, 1.6TB RI MLC
- (C)Maximum Capacity (per enclosure)
- Up to 48TB when using 24 x 2TB NL-SAS 2.5" HDDs
- (D)Expansion Capabilities
- PERC H810 enables expansion to 8 enclosures, 4 per port
Dell EMC NX3240 20TB storage
- Processor : Dell EMC NX3240, Single Intel® Xeon® Bronze 3204 1.9G, 16GB Mem, Entry Config
- RAID : C12, RAID 5 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity)
- Hard Drive : 600GB 10K RPM SAS 12Gbps 512n 2.5in Flex Bay Hard Drive, 3.5in HYB CARR
- Hard Drives (Front Bay) : 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- Power Supply : Single, Hot-plug Power Supply (1+0), 750W
- Power Cords : NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
- Network Daughter Card : Broadcom 5720 Quad Port 1GbE BASE-T, rNDC
- Embedded Systems Management : iDRAC9,Enterprise
- Trusted Platform Module : No Trusted Platform Module
- Rack Rails : No Rack Rails or Cable Management Arm
- External Optical Drive : None
- Warranty Basic Service : 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite

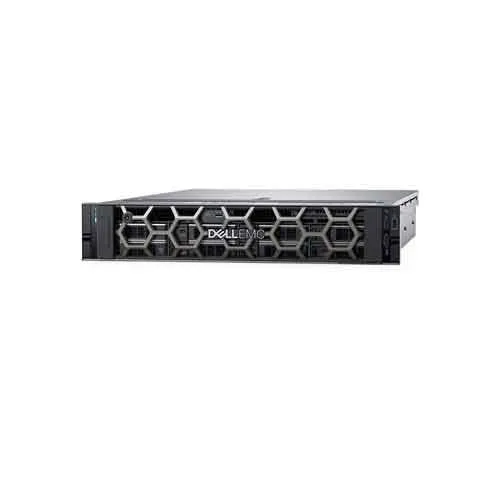

Dell emc nx3240 60TB storage
- Processor : Dell EMC NX3240, Single Intel® Xeon® Bronze 3204 1.9G, 16GB Mem, Entry Config
- RAID : C12, RAID 5 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity)
- Hard Drive : 600GB 10K RPM SAS 12Gbps 512n 2.5in Flex Bay Hard Drive, 3.5in HYB CARR
- Hard Drives (Front Bay) : 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- Power Supply : Single, Hot-plug Power Supply (1+0), 750W
- Power Cords : NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America
- Network Daughter Card : Broadcom 5720 Quad Port 1GbE BASE-T, rNDC
- Embedded Systems Management : iDRAC9,Enterprise
- Trusted Platform Module : No Trusted Platform Module
- Rack Rails : No Rack Rails or Cable Management Arm
- External Optical Drive : None
- Warranty Basic Service : 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite
DELL EQUALLOGIC PS M4110 BLADE ARRAY SERIES
Reliability :
Redundant hot-swappable controllers and hot-swappable disks, redundant network path via internal fabric wiring in M1000e chassis, redundant fans and power supplies provided by M1000e chassis
Enclosure Monitoring System :
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management :
Dell Chassis Management Console (CMC) integration
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series arrays from a single management interface
PS Series Group Manager
PS Series SAN Headquarters multigroup performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, web (SSL), host scripting
Multiadministrator support
Security :
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
IPSEC
SED
Common Criteria Certification with FW 7.1.1
Management Interfaces :
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series
arrays from a single management interface PS Series Group Manager
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security :
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Common Criteria Certification with FW 7.1.1
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Physical :
Height: 2U/8.68 cm (3.41 in)
Width: 44.63 cm (17.57 in)
Depth: 59.4 cm (23.4 in)
Weight: 29.2 Kg (64.4 lb)
DELL STORAGE PS6610 SERIES ARRAYS
Product configurations :
Provides affordable, high-capacity
storage for data-intensive workloads
such as archival/secondary storage.
Storage controllers :
Dual controllers with 32GB non-volatile memory per controller
Network interfaces :
10GbE connectivity;
management network: 1 x 100BASE-TX per controller;
interface ports: 2 x 10GBASE-T with RJ45 or 2 x 10GbE
SFP+ for fibre or twin-ax copper cabling
Reliability
Redundant hot-swappable controllers; hot-swappable disks and power supplies
Enclosure monitoring system :
Automatic spare configuration and utilization, SMART,
Automatic bad block replacement,
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management interfaces :
DSM for day-to-day tasks across SC Series and PS Series arrays from a single management interface; PS Series Group Manager;
SAN Headquarters multi-group performance and event monitoring tool; Serial console; Ability to configure a separate management network;
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting; Multi-administrator support
Security :
CHAP authentication; Access control lists and policies for iSCSI;
Access control for management interfaces including Active Directory,
LDAP or RADIUS support
Physical :
Height: 5U/22.23 cm (8.8 in), Width: 48.26 cm (19 in), Depth: 91.44 cm (36 in), Weight: 130.7 kg (287.5 lb) (max config)
Power :
Dual 2800W, 200-240VAC, 50/60Hz (high AC line power source only)
DELL EQUALLOGIC PS6210 SERIES ARRAYS
Enclosure Monitoring System :
Automatic spare configuration and utilization
Energy Efficiency :
The Dell PS6210 series arrays have earned the ENERGY STAR Data Center Storage designation.
Management :
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS
Series arrays from a single management interface
Power :
50/60 Hz
Rack Support :
ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Reliability :
Redundant hot-swappable controllers with vertical port sharing Hot-swappable disks and power supplies
Environmental Operating Conditions :
Temperature range: 5° to 40°C (41° to 104°F)
Storage temperature: –40° to 65°C (–40° to 149°F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4:bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985
Physical :
Height: 2U/8.68 cm (3.41 in)
Width: 44.63 cm (17.57 in)
Depth: 59.4 cm (23.4 in)
Weight: 29.2 Kg (64.4 lb)
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
DELL STORAGE PS4210 ARRAY SERIES
Storage Controller :
Dual controllers with 16GB non-volatile memory (8GB per controller)with up to 32GB non-volatile memory in a group of 2 arrays
Interface ports :
Two 10GBASE-T with RJ45 or 2 x 10GbE SFP+ for fibre or twin-ax copper cabling
Snapshots :
128 per volume / up to 2,048 total per group
Operating systems and hypervisors :
Microsoft® Windows Server® including Hyper-V®
VMware® ESX Server
Red Hat® Enterprise Linux® (RHEL)
SUSE® Enterprise Linux® (SLES)
Oracle® Linux
Citrix® XenServer®
Management Interfaces :
Dell Storage Manager (DSM): Allows you to perform day-to-day tasks across SC and PS Series
arrays from a single management interface PS Series Group Manager
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support
Security :
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Common Criteria Certification with FW 7.1.1
Environmental Operating Conditions :
Temperature range: 5° to 40°C (41° to 104°F)
Storage temperature: –40° to 65°C (–40° to 149°F)
Altitude: For altitudes above 2950 feet, the maximum operating temperature is derated 1ºF/550 ft.
Operating Relative humidity: 20% to 80% (noncondensing) with a maximum humidity gradation of 10% per hour
Operational shock: Half-sine shock 31G +/- 5% with a pulse duration of 2.6ms +/- 10% in operational orientations only
Operating Vibration: 0.26 Grms (5 to 350 Hz) for 5 minutes in operational orientations
Acoustics Category 4:bels at 23C +/- 2C
Air Quality: Airborne contaminant level of G1 or lower as defined by ISA-S71.04-1985
Physical :
Height: 2U/8.68 cm (3.41 in)
Width: 44.63 cm (17.57 in)
Depth: 59.4 cm (23.4 in)
Weight: 29.2 Kg (64.4 lb)
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment

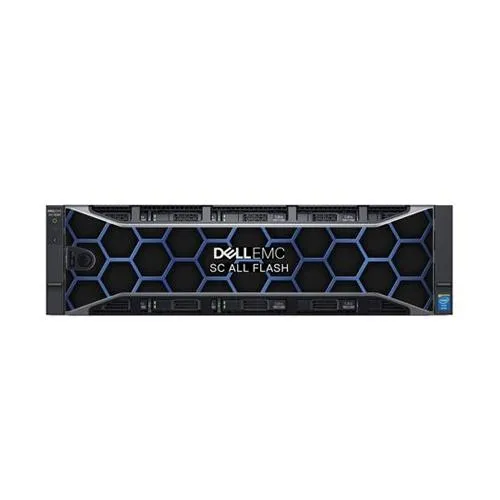

DELL EMC SC ALL FLASH STORAGE ARRAYS
Chassis :
Unless otherwise indicated, specifications apply to both SC7020F and SC5020F array models.
Rack size :
3U
Processors per controller :
SC7020F: Dual Intel® Xeon® Processors, E5-2628 v3 2.5GHz, 8 cores
SC5020F: Single Intel® Xeon® Processor E5-2630 v3, 2.4GHz, 8 cores
Operating system :
Dell Storage Center OS (SC OS) 7.2 or greater
Expansion Capacity :
Dell EMC SC420F: 24 x 2.5” drive bays (12Gb SAS)
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Power:
SC7020F: 2 hot-swappable 1485W power supplies
SC5020F: 2 hot-swappable power supplies (1378W or 1485W options available, wattage type not interchangeableafter point of sale)
DELL EMC SC9000 ARRAY CONTROLLER
Chassis :
Height: 2U/87.3 mm (3.44 inches)
Width: 482.4 mm (18.98 inches) with rack latches; 444 mm (17.08 inches) without rack latches
Depth: 755.8 mm (29.75 inches) with bezel
Weight: 19.73 kg (43.5 lb)
Rack support :
ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded
round holes or tooled mounting in 4-post threaded-hole racks
Connectivity :
PCIe Gen 3 slots
7 per controller
4 full-height (cache card consumes one), 3 low-profile
Any slot may be used for either front-end network or back-end expansion capacity connections
Environmental Operating Conditions :
Operating: 41º to 104ºF ( 5º to 40ºC ) Non-operating: -40º to 149ºF ( -40º to 65ºC )
Management :
Management interface
Browser-based (HTML 5)
Unisphere for SC (element manager)
Unisphere Central (multi-array management)
CloudIQ (cloud-based analytics and monitoring)
Power :
Power/wattage: 2 hot-swappable 1100W 80 PLUS® Energy Star Platinum-certified power supplies
Maximum output power: 1100 W
Maximum input power: 1200 W
Maximum input current: 12 A
Maximum inrush current: 25A for 10 ms or less
Nominal input voltage operating range: 100-240 VAC
Nominal input frequency: 50/60 Hz
Maximum thermal output/heat dissipation: 4,760 BTU per
Energy Efficiency :
The Dell EMC SC7020 arrays have earned the ENERGY STAR Data Center Storage designation
Storage :
Block (SAN)*
Expansion enclosures :
Mix and match from the following options:
Dell SC400: 12 x 3.5" drive bays, 12Gb SAS
Dell SC420: 24 x 2.5" drive bays, 12Gb SAS
Dell SC460: 60 x 3.5” drive bays, 12Gb SAS
Dell SC280: 84 x 3.5" drive bays, 6Gb SAS*
Dell SC200: 12 x 3.5” drive bays, 6Gb SAS*
Dell SC220: 24 x 2.5” drive bays, 6Gb SAS*

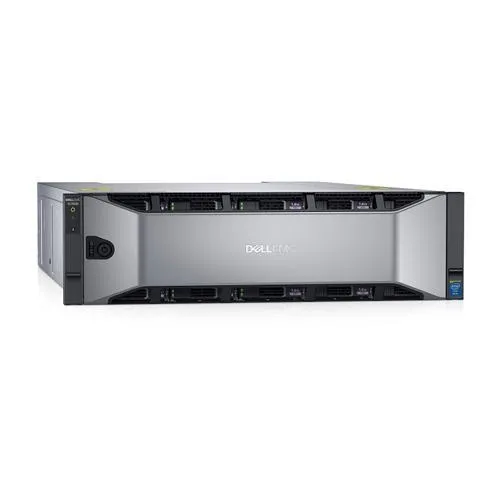

DELL EMC SC7020
Processor :
Dual 2.5GHz 8-core Intel® Xeon® processors per controller
Operating System :
Storage Center 7.1 or higher
Chassis :
Height: 13.33 cm (5.25 inches)
Width: 44.5 cm (17.52 inches)
Depth: 78.5 cm (30.9 inches)
Weight: 24.22 kg (53.4 lb) (maximum configuration), 15.15 kg (33.4 lb) (empty)
Rack support :
ReadyRails™ II static rails for tool-less mounting in 4-post
racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
Connectivity :
SAS (6Gb ,12Gb)
Drive Controllers :
Dell SC400: 12 x 3.5" drive bays, 12Gb SAS
Dell SC420: 24 x 2.5" drive bays, 12Gb SAS
Dell SC460: 60 x 3.5” drive bays, 12Gb SAS
Dell SC280: 84 x 3.5" drive bays, 6Gb SAS
Dell SC200: 12 x 3.5” drive bays, 6Gb SAS
Dell SC220: 24 x 2.5” drive bays, 6Gb SAS
Energy Efficiency :
The Dell EMC SC7020 arrays have earned the ENERGY STAR Data Center Storage designation
Connectivity :
SAS (6Gb ,12Gb)
RAID :
Supports RAID 0, 1, 5, 6, RAID 10 and RAID 10 DM (dual mirror). Any combination of RAID levels can exist on a single Storage Center. Multiple RAID levels can exist on the same storage tier within an array.
DELL EMC SC5020 STORAGE ARRAY
Chassis format :
All-in-one (dual controllers, internal drive bays, networking and expansion ports)
Rack size :
3U
Controllers :
2 hot-swappable per chassis (active/active)
Processors :
Intel® Xeon® Processor E5-2630 v3, 2.4GHz, 8 cores
Internal storage capacity :
30 x 2.5” drive bays
Expansion Capacity :
Dell EMC SC420: 24 x 2.5” drive bays (12Gb SAS)
Dell EMC SC400: 12 x 3.5” drive bays (12Gb SAS)
Dell EMC SC460: 60 x 3.5” drive bays (12Gb SAS)
Power :
Power/wattage: 2 hot-swappable power supplies (1378W or 1485W options available, wattage type not interchangeable after point of sale)
Maximum output power: 1378W supply option: 1378 W; 1485W supply option: 1485 W
Maximum input power: 1378W supply option: 1584 W; 1485W supply option: 1688 W
Maximum input current: 1378W supply option: 16 A, 1485W supply option: 8.8 A
Maximum inrush current: 55A for 10 ms or less
Nominal input voltage operating range: 1378W supply option: 100-240 VAC; 1485W supply option: 200-240 VAC
Nominal input frequency: 50/60 Hz
Maximum thermal output/heat dissipation: 1378W option: 5,770 BTU per hour; 1485 option: 5,760 BTU per hour (for all-in-one base appliance, no expansion enclosures)
Reporting/alerts :
Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback
Application Consistency :
Replay Manager: Application-consistent snapshots in Microsoft or VMware environments
AppSync: Application-consistent snapshots in Microsoft, VMware, Oracle environments
External key manager support :
Gemalto’s SafeNet KeySecure k460,
SafeNet KeySecure k250,
SafeNet KeySecure k150v Thales EMS 200
DELL POWERVAULT RD1000 DISK MEDIA
2TB Media :
Capacity (Native): 2TB
Average sustained transfer rate: Internal SATA 35 MBps / External USB 80 MBps
Burst transfer rate: Internal SATA 1.5 Gbps / External USB 5 Gbps
Average access time (msec): 15
Function: Removable disk drive
Logical block size: 512 bytes
Support file system: ext2, ext3, FAT32 and NTFS (default)
Unrecoverable error rate: 1 error per 10^14 bits read
1TB Media :
Capacity (Native): 1TB
Average sustained transfer rate: Internal SATA 35 MBps / External USB 80 MBps
Burst transfer rate: Internal SATA 1.5 Gbps / External USB 5 Gbps
Average access time (msec): 15
Function: Removable disk drive
Logical block size: 512 bytes
Support file system: ext2, ext3, FAT32 and NTFS (Default)
Unrecoverable error rate: 1 error per 10^14 bits read
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Form Factor: 5.25 inch internal
Height: 41.4 mm (1.63 inch)
Width: 146.0 mm (5.75 inch)
Depth: 171.9 mm (6.77 inch) including bezel
Weight: 635 g (1.40 lbs)

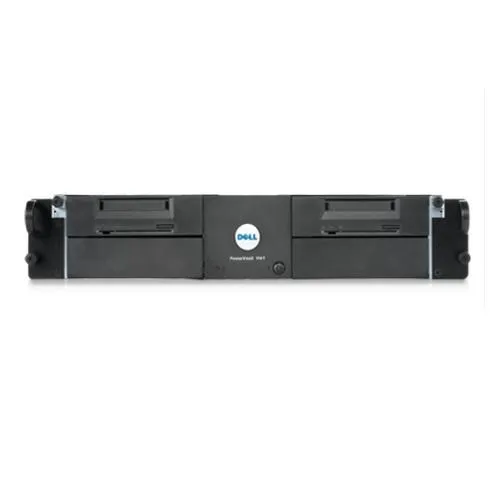

DELL POWERVAULT 114X TAPE RACK ENCLOSURE
Chassis :
Form Factor: 2U Rack Mount
Height: 86.9 mm (3.42 inch)
Width: 482.5 mm (19.00 inch)
Depth: 480.7 mm (18.93 inch) including bezel
Weight: 8.3 Kg (18.4 lbs)
Drive Controllers :
6Gb SAS HBA for PowerEdge 12th generation servers
12Gb SAS for PowerEdge 13th generation servers
Software :
For a list of supported tape backup software, refer to the Dell PowerVault Tape Compatibility Matrix
Server Compatibility :
Dell™ and x86 IBM legacy, Lenovo and HP servers
For a complete list of servers, refer to the Dell PowerVault
Transfer Rate and Backup Rate :
LTO-8 drives: 1080GB/hr (Native)
LTO-7 drives: 1080GB/hr (Native)
LTO-6 drives: 576GB/hr (Native)
DELL POWERVAULT TL1000 TAPE AUTOLOADER
Connectivity :
Network interface
ADI T-10
Ethernet RJ-45
IPv6 Phase 1 & 2 Ready and DoD APL
Encryption :
Library-managed encryption is only available on LTO-6 and later generation TL1000 tape libraries.
Library-managed encryption enabled PowerVault TL1000 tape libraries can be purchased at point of sale only.
Library-managed encryption cannot be enabled on existing TL1000 tape libraries and the feature cannot be purchased after point of sale.
Environmental Operating Conditions :
Temperature
50 to 100.4 degrees F, 10 to 38 degrees C
Humidity (operating)
20% to 80% RH (non-condensing)
Chassis :
1U form factor
Height: 44 mm (1.73 in)
Width (chassis/bezel): 445 mm (17.52 in)/483 mm (19.02 in)
Length: 850 mm (33.46 in)
Weight: 13 kg (28.66 lb)
Orientation: Horizontal only
Library Configurations :
Rack mount standard
Barcode Reader :
Standard
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment

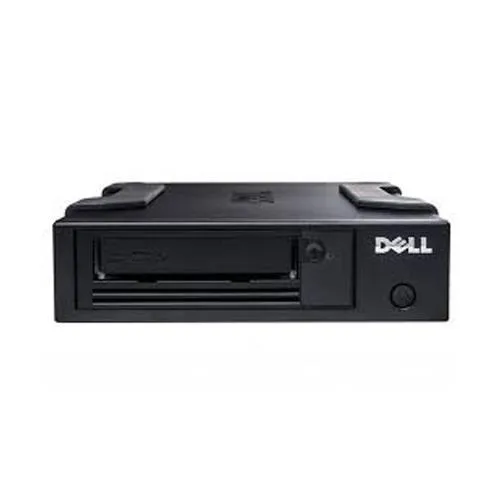

DELL POWERVAULT LTO TAPE DRIVES
Chassis :
Internal and External Drives Available
Internal Drive :
1.69" (h) x 5.83 (w) x 8.29" (d)
Weight (3lbs 9 oz)
External Drive :
2.56"(h)x 8.74"(w) x 12.87"(d)
Weight(9.7lbs)
Drive Controllers :
Serial Attached SCSI (SAS) at 6Gb/s
SAS 6Gb HBA for 12th generation Dell PowerEdge servers
SAS 12Gb HBA for 13th generation PowerEdge servers
Internal Tape Adapter HBA for internal drives in 12th generation PowerEdge tower servers
PERC H330 HBA for internal drives in 13th generation PowerEdge tower servers
Software :
For a list of supported tape backup software, refer to the Dell PowerVault Tape Compatibility Matrix
Tape Backup Technology :
Native Capacity
LTO-8 - 12TB
LTO-7 Type M – 9TB1
LTO-7 - 6TB
LTO-6 - 2.5TB
LTO-6, LTO-7 and LTO-8 drives support 2.5:1 compression
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
DELL POWERVAULT LTO CARTRIDGES
Media Types :
LTO-8 Data
Capacity (Native): 12TB*
Capacity (2:5:1 Compressed): 30TB
Speed (Native): 300MB/sec native transfer rate per Half Height drive (1080GB/hr); 360MB/sec native transfer rate per Full Height drive (1296GB/hr)
Encryption Support: Yes
Worm Support: No
LTO-8 Worm :
Capacity (Native): 12TB*
Capacity (2.5:1 Compressed): 30TB
Speed (Native): 300MB/sec native transfer rate per Half Height drive (1080GB/hr);
360MB/sec native transfer rate per Full Height drive (1296GB/hr)
Encryption Support: Yes
Worm Support: Yes
LTO-7 Type M :
Capacity (Native): 9TB*
Capacity (2.5:1 Compressed): 22.5TB*
Speed (Native): 300MB/sec native transfer rate per drive (1080GB/hr)
Encryption Support: Yes
Worm Support: No
LTO-7 Data :
Capacity (Native): 6TB*
Capacity (2.5:1 Compressed): 15TB
Speed (Native): 300MB/sec native transfer rate per drive (1080GB/hr)
Encryption Support: Yes
Worm Support: No
LTO-7 Worm :
Capacity (Native): 6TB*
Capacity (2.5:1 Compressed): 15TB
Speed (Native): 300MB/sec native transfer rate per drive (1080GB/hr)
Encryption Support: Yes
Worm Support: Yes
LTO-6 Data :
Capacity (Native): 2.5TB*
Capacity (2.5:1 Compressed): 6.25TB
Speed (Native): 160MB/s (576GB/hr)
Encryption Support: Yes
Worm Support: No
LTO-6 Worm :
Capacity (Native): 2.5TB*
Capacity (2.5:1 Compressed): 6.25TB
Speed (Native): 160MB/s (576GB/hr)
Encryption Support: Yes
Worm Support: Yes
DELL EMC ML3 TAPE LIBRARY
Chassis :
Height: Rack Mount 133mm Width: Rack Mount 480mm
Depth: Rack Mount 873mm
Weight: 21Kg. with no drive and no media
Orientation: Horizontal only
Library Configurations :
Up to 3 LTO half-height drives with 32 cartridge slots (ML3) or 40 cartridge slots (ML3E), 8Gb FC or 6Gb SAS
Expansion capacity :
ML3 base ships standard with 32 cartridge slots
ML3E expansion module ships standard with 40 cartridge slots
Each ML3 base supports up to six ML3E expansion modules
Media :
LTO-6, LTO-7, LTO-7 Type M, LTO-8
Weight :
130.1 kg (287 lb) (maximum configuration)
62.1 kg (137 lb) (empty)
Temperature :
Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 20°C per hour
Non-operating: -40° to 65°C (-40° to 149°F) at a maximum altitude of 12,000 m (39,370 ft)
Power Supplies
Optional second power supply available for both ML3 and ML3E for redundancy
Regulatory :
Dell Inc. (Dell) is committed to compliance with the laws and regulations in each country into which the company ships our products. Dell products are designed and tested to meet the appropriate worldwide standards for Product Safety, Electromagnetic Compatibility, Ergonomics and other regulatory compulsory requirements, when used for their intended purpose.
Scalability :
Up to 384TB (native) for ML3 and 480TB (native) per ML3E
3U up to 21U with addition of six ML3E (3U expansion modules)
Software :
RAID levels 0, 1, 5, 6, 10, 50 and 60

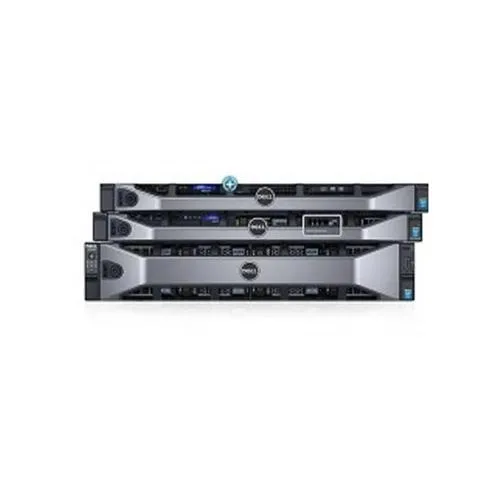

DELL STORAGE NX FAMILY OF NETWORK ATTACHED STORAGE NAS APPLIANCES
Processor :
Dell EMC NX3240, Single Intel® Xeon® Bronze 3104 1.7G, 16 GB Mem, Entry Config
RAID :
C12, RAID 5 for 4 or more HDDs or SSDs (Matching Type/Speed/Capacity)
Hard Drive :
600GB 10K RPM SAS 12Gbps 512n 2.5in Flex Bay Hard Drive
Network Daughter Card :
Broadcom 5720 QP 1Gb Network Daughter Card
Transfer Rate and Backup Rate :
LTO-8 drives: 1080GB/hr (Native)
LTO-7 drives: 1080GB/hr (Native)
LTO-6 drives: 576GB/hr (Native)
Regulatory :
Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
Dell Storage MD1400 Direct Attached Storage
- Connectivity
- Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830 or PERC H840 (4 enclosures per port, single path)
- Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 or PERC H840 (4 enclosures connected to both ports via redundant path
- cabling)
- Connectivity per EMM:
- 4 mini-SAS HD connector for connection to the host or expansion
- Service management:
- USB mini b connector (for factory use only)
- Dimensions & Weight
- Height x width x depth:
- MD1400: 8.7 cm (3.43") x 48.2 cm (18.98") x 59.2 cm (23.3") (depth includes PSU handle)
- MD1420: 8.7 cm (3.43") x 48.2 cm (18.98") x 53.9 cm (21.22") (depth includes PSU handle)
- Weight: 28.59 kg (63.03 lb) (maximum configuration)
- 9.0 kg (19.8 lb ) (empty)
- Environmental Operating Conditions
- (A)Temperature
- Operating: 10° to 35°C (50° to 95°F) with maximum temperature gradation of 10°C per hour
- Storage: -40° to 65°C (-40° to 149°F) with temperature gradation of 20°C per hour
- (B)Relative Humidity:
- Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
- Storage: 5% to 95% (non-condensing)
- (C)Altitude
- Operating: -16 to 3048 m (-50 to 10,000 ft)
- Storage: -16 to 10,600 m (-50 to 35,000 ft)
- Expansion Capacity :
- PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual-port, 4 ports per enclosure
- Management
- Enclosure Management Modules (EMM)
- 2 EMM provide redundant enclosure management capability
- Power
- Wattage – also supports DC power: AC – 600W; DC – 700W
- Host heat dissipation: AC – 2047 BTU/hr; DC – 2388 BTU/hr
- Input voltage range: 100-240 VAC, auto-sensing; 48 V DC
- Frequency range:50/60 Hz
- Amperage:8.6 A at 100 V, 4.3 A at 240 V
- Supported continuous consumption:
- Up to 1.2 A at +5V
- Up to 0.5 A at +12V
- RAID
- RAID levels 0, 1, 5, 6, 10, 50 and 60
- Rack Support
- Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks
- Storage
- (A)Drive type
- 3.5" and 2.5" SAS, NL-SAS, SSD, SED (2.5” available with adapter)
- (B)Maximum Raw Capacity (per enclosure)
- Up to 144TB when using 12 x 10TB NL-SAS 3.5" HDDs
Dell Storage MD1280 Dense Enclosure Storage
- Chassis : 5U, 84 hot-pluggable 3.5 drive bays
- Connectivity : 6GB SAS
- Environmental Operating Conditions :
- (A)Temperature
- Operating: 10° t 35°C (50° to 95°F) with maximum temperature gradation of 20°C per hour
- Non-operating: -40° to 65°C (-40° to 149°F) at a maximum altitude of 12,000 m (39,370ft)
- (B)Relative humidity:
- Operating: 10% to 80% (non-condensing) with 29° C (82.4°F) maximum dewpoint.
- Non-operating: 5% to 95% (non-condensing) with 33°C (91°F) maximum dewpoint.
- (C)Altitude
- Operating: -16 to 3048 m (-50 to10,000 ft)
- Storage: -16 to 10,600 m (-50 to 35,000 ft)
- (D)Maximum Usable Capacity :
- Up to 1.3PB when using 2 enclosures, maximum of 168 8TB HDDs
- Management
- Server dependent
- Power
- Wattage: 2800 AC only
- Input voltage range: 200-240 VAC
- Frequency range: 50/60 Hz
- RAID Controllers
- 2 Enclosure Management Modules (EMM) provide redundant enclosure management capability
- Scalability
- Up to 672TB when using 84 x 8TB NL-SAS 3.5" HDDs
- Storage
- Drive performance and capacity:
- 3.5 NL-SAS 6Gb HDD (7.2K): 4TB, 6TB
- 3.5 NL-SAS 4kn 6Gb HDD (7.2k): 6TB
- 3.5 NL-SAS 512e 6Gb HDD (7.2K): 8TB
DELL POWERVAULT MD3060E DENSE ENCLOSURE
Chassis :
(height x width x depth)177.8mm (7.0”) x 482.6mm (19.0”) x 825.5mm (32.5”)
Connectivity :
6Gb SAS
Environmental :
Operating: -30.5m to 3000m (-100 ft to 9,840 ft)
NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.
Management :
Server controller dependent
Performance :
3.5" and 2.5" SAS, NL-SAS, SSD, SED
EMM :
3 two-color LED status indicators: one each for the two EMM SAS ports and one for the EMM status
1 single-color Unit Identification LED for each EMM
Management
2 Enclosure Management Modules(EMM) provide redundant enclosure management capability
Regulatory:
Dell Inc. (Dell) is committed to compliance with the laws and regulations in each country into which the company ships our products. Dell products are designed and tested to meet the appropriate worldwide standards for Product Safety, Electromagnetic Compatibility, Ergonomics and other regulatory compulsory requirements, when used for their intended purpose.
Expansion Capabilities :
PERC H810 Host-RAID adapter enables expansion to 8 enclosures (4 enclosures per port)
RAID :
PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.
Dell PowerVault MD1200 Storage
- Operating System: Refer to RAID Card for details on supported Operating Systems PERC H810
- SAS connectors (per EMM): 1 SAS (SFF 8088) IN connector for connection to the host, 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
- Serial connector (per EMM): 1 6 pin UART mini-DIN connector (for factory use only)
- Chassis Height : 8.7cm (3.43 inches)
- Chassis Width : 48.2cm (18.98 inches)
- Chassis Depth : 59.4 (23.39 inches)
- Chassis Weight : 28.39 kg (62.6 lb) (maximum configuration)8.84 kg (19.5 lb) (empty)
- SAS connectors (per EMM): 1 SAS (SFF 8088) IN connector for connection to the host, 1 SAS (SFF 8088) OUT connector for expansion to an additional enclosure
- Serial connector (per EMM):1 6-pin UART mini-DIN connector (for factory use only)
- Connectivity:
- (A)Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)
- (B)Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)
- (C)Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 5 and a separate connectivity to drives 6 through 11.
- Environmental Operating Conditions:
- (A)Temperature:
- Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
- Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
- Supports Fresh Air cooling, up to 35 degrees Celsius
- (B)Relative humidity:
- Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
- Storage: 5% to 95% (non-condensing)
- (C)Altitude:
- Operating: -16 to 3048 m (-50 to 10,000 ft)
- Storage: -16 to 10,600 m (-50 to 35,000 ft)
- LED Indicators :
- (A)Front panel
- 1 two-color LED indicator for system status
- 2 single-color LED indicators for power and split mode
- (B)Drive carrier
- 1 single-color activity LED
- 1 two-color LED status indicator per drive
- (C)EMM
- 3 two-color LED status indicators: one each for the two EMM SAS ports and one for the EMM status
- 1 single-color Unit Identification LED for each EMM
- (D)Power supply/cooling fan module
- 3 LED status indicators for power supply status, power supply/fan fault and AC status
- Management :
- 2 Enclosure Management Modules(EMM) provide redundant enclosure management capability
- Power :
- Two fully redundant power supplies; supports DC power
- Wattage: AC - 600 W; DC – 700 W
- Heat dissipation: AC - 2047BTU/hr; DC - 2388 BTU/hr
- Voltage: 100-240 VAC, auto sensing; 48V DC
- Frequency: 50/60 Hz
- Amperage: 8.6 A at 100 V, 4.3 A at 240 V
- Available Drive Power (per slot)
- Supported drive power consumption (continuous):
- up to 1.16 A at +5V
- up to 1.6 A +12V
- RAID : PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.
- Storage :
- (A)Drives :
- Up to twelve (12) hot-pluggable SAS Hard Disk Drives (HDDs) at 7.2K, 10K and 15K rpm and SAS Solid State Drives (SSDs)
- (B)Drive performances and capacities :
- (I)3.5” 6Gbps SAS:
- HDD 15K – 300GB, 450GB, 600GB
- HDD 7.2K – 1TB, 2TB, 3TB, 4TB
- HDD 7.2K NL-SAS 512e – 6TB
- (II)3.5” 12Gbps SAS:
- HDD 7.2K NL-SAS 512e – 6TB, 8TB, 10TB
- (III)2.5” 6Gbps SAS with 3.5” carrier:
- HDD 10K – 300GB, 600GB, 900GB, 1.2TB
- HDD 10K 512e– 1.8TB
- SSD – 400GB mainstream SLC
- SSD – 200GB, 800GB value SLC
- SSD – 800GB RI MLC
- SSD – 200GB, 400GB WI SLC
- (IV)2.5 12Gbps SAS with 3.5 carrier: 7.2K HDD NL-SAS 512e 2TB, SSD 200GB, 400GB, 800GB, 1.6TB MU MLC
- SSD – 200GB, 400GB, 800GB WI MLC
- SSD – 800GB, 1.6TB RI MLC
- (C)Maximum Capacity (per enclosure): Up to 120TB when using 12 x 10TB NL-SAS 3.5 HDDs
- (D)Expansion Capabilities: PERC H810 Host RAID adapter enables expansion to 8 enclosures (4 enclosures per port)
