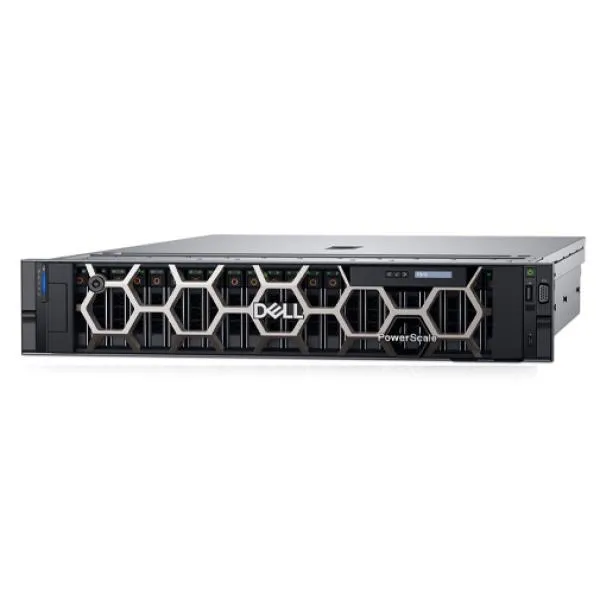

Dell PowerScale F910 All Flash NAS Platform

Brand Name:

Dell

Product Name:
Dell PowerScale F910 All Flash NAS Platform

Processor:

2 Intel Xeon CPUs, 2.4GHz/24C

Functional:

All-flash, all-NVMe NAS

Scale-out storage

Memory:

512GB DRAM DDR5 ECC

System Overview:

Base enclosure:

2U Form Factor

24x2.5” NVMe SSD drives

Raw node capacity: 92 TB - 2.9 PB

Nodes per cluster: 3 up to 252

Raw cluster capacity: 276 TB - 737 PB

Memory: 512 GB

Storage type: NVMe SSD (TLC, QLC)

SSD drives per node: 24

Expansion Capacity:

Scale-out architecture

Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.

Expansion enclosures:

Minimum cluster size: 3 nodes

Maximum cluster size: 252 nodes

Connectivity:

Front End Networking (per node):

Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)

Dual port 100G NIC supporting 40G or 100G connections

Infrastructure Networking (per node):

2 InfiniBand connections with QDR links or Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)

Media Types:

NVMe SSDs

3.84 TB (TLC)

7.68 TB (TLC)

15.36 TB (QLC)

30.72 TB (QLC)

Physical:

Base unit: 2U Form Factor

Height: 86.8 mm / 3.41 in.

Width: 482 mm / 18.97 in.

Depth: 772.13 mm / 30.39 in. with bezel

Weight: 32.75 kg / 72.2 lbs

Power:

1400 W

Dual redundant power supplies

Max Power consumption :

(200-240V per node)

@25°C – 877 Watts

@35°C – 913 Watts

Typical Thermal rating:

@25°C – 2992 BTU/hr

@35°C – 3115 BTU/hr
