Thermal Image Camera Dealers Chennai, Tamilnadu
477
CP DT 04D Thermal Imaging Camera
- Display:2.8 inch color display
- Resolution:160*120
- Total pixel:19200
- Thermal sensitivity :0.07
- Field angle/shortest focus length: 39 °*31°/0.15 m
- Measuring mode:Infrared focal plane measuring temperature
- Temperature range:-20?-450?(-4?-842?)
- Measuring accuracy:±2% digital±2?
- Wavelength range:8-14 µm
- Image format:JPG
- Emissivity:0.1-1.0 Adjustable
- Vibration resistance :2G,IEC 60068-2-6
- Image storage :3G(above 20 thousand images)
- Waterproof rating:IP67

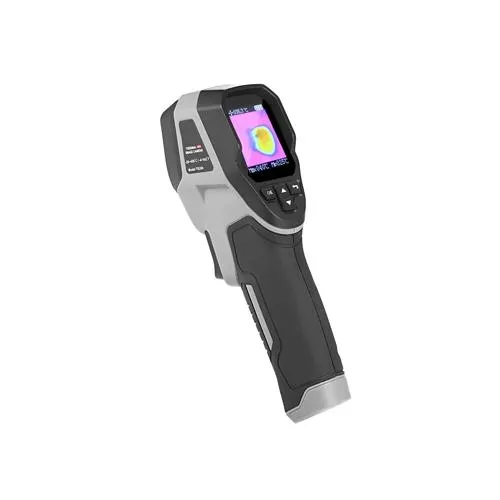

CP DT 02D Thermal Imaging Camera
- Display:2.4" color display
- Resolution:32x32
- Thermalsensitivity:0.15'C
- Measuring mode:Infrared focal plane measuring temperature
- Temperature range:-20 'C~300'C(-4'F-572'F)
- Measuring accuracy :+/-2% digital/+/-2'C
- Emissivity:0.1-1.0 adjustable
- Battery type:4*AA alkaline batteries
- Operating temperature :0•50?
- Storage temperature :-40•70?
- Size:230x80x52mm
- Weight:410g"

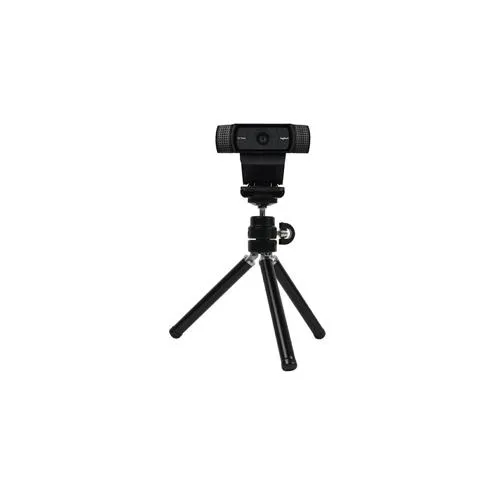

CP NA T1B Tripod stand for black body and panda camera
- Brand: captcha
- Item Weight: 200 g
- Product Dimensions: 12.7 x 3.8 x 20.3 cm
- Item part number: Other
- Number Of Items: 1
- Batteries Included: No
- Batteries Required: No

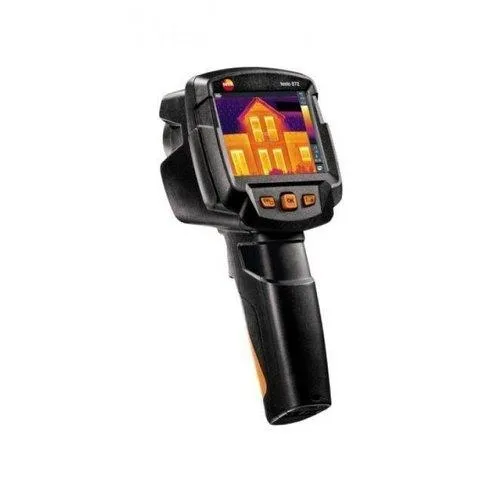

CP DT 02 Thermal Imaging Camera
- Display:2.4 color display
- Resolution:60x60
- Thermalsensitivity:0.15
- Measuring mode:Infrared focal plane measuring temperature
- Temperature range:-20 'C~300'C(-4'F-572'F)
- Measuring accuracy :+/-2% digital/+/-2'
- Image frequency:6Hz
- Wavelength range:8-14um
- Emissivity:0.1-1.0
- adjustable
- Focus Mode:Fixed
- Palette:Iron color ,rainbow ,black and white
- Image
- Storage: 4G card
- Battery type:4*AA alkaline batteries
- Operating temperature :0·50?
- Storage
- temperature :-40·70
- Humidity:<90 %
- Vibration:2G
- IEC 60068-2-6
- Drop resistance:2m
- Size:230x80x52mm
- Weight:410g"
CP NA BB70 Black Body
- Temperature Range: 40.0? (Ambient temp.+5.0? to 50.0?)
- Emissive Area: 70mm×70mm
- Temperature Resolution: 0.1
- Accuracy: ±0.2? (@40?)
- Stability: ±(0.1~0.2)?/30min
- Emissivity: 0.97±0.02
- Power supply: 220VAC 50Hz 50W
- Operating ambient temp: 0?~40? / =80%RH
- Dimension: 110mm(W)×120mm(H)×180mm(D)
- Weight: 1.8kg
- Option: RS485 communication
Thermal Body Temperature Measurement Solution
- Black Camera + Bracket (Ceiling or Wall Mount – one of them) + NVR including VMS software + Mobile App
- PRODUCT CODE: CP-NNC-T451-T AI network camera On-board temp-detection algorithm
- One IP address two channels
- Effective pixels 400×300
- Sensitivity =40mK
- Thermal: 8mm Fixed lens,
- Visible: 2.8~12mm motorized lens
- Accuracy =0.3°C
- Body detection, up to 30 Targets
- Response Time =30ms
- 17 color control
- PRODUCT CODE: CP-NNR-4K332R4-16P NVR
- 12mp 32ch 16ch POE with Face Recognition NVR, for Panda
- PRODUCT CODE:CP-NA-B1 Bracket
- Ceiling bracket for Panda
- PRODUCT CODE:CP-NA-B1WA Bracket
- Wall mount bracket for Panda
