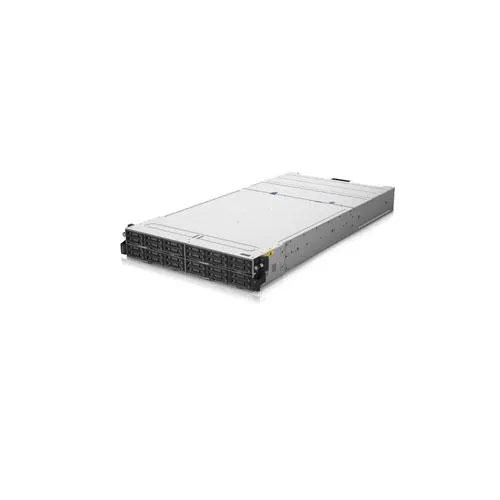

Lenovo ThinkSystem SD530 Server
- Form Factor/Height: 2U rack enclosure; 4 independent compute nodes
- Processor (max)/Cache (max): Up to 2x Intel® Xeon® Platinum processors, up to 165W
- Memory: Up to 1TB in 16x slots, using 64GB DIMMs; 2666MHz TruDDR4
- Expansion Slots: 1x shuttle per D2 enclosure: either x8 PCIe Shuttle with 8x PCIe 3.0 x8 slots (2 per node); or x16 PCIe Shuttle with 4x PCIe 3.0 x16 slots (1 per node). Up to 2x external 1U trays (with up to 2 GPUs per node each)
- Drive Bays (Total/Hot Swap)
- Up to 24x (6x per node) HS SFF SAS/SATA HDDs/SSDs; up to 8x (2x per node) HS SFF NVMe SSDs
- RAID Support: SW RAID supports JBOD; Entry RAID; opt. HW RAID 12Gb supports JBOD; plus M.2 boot support with optional RAID
- Security and Availability Features TPM 1.2/2.0; PFA; HS/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
- Network Interface: Opt. 8-port EIOM 10Gb SFP+ (two ports per node); Opt. 8-port EIOM 10GbaseT RJ45 (two ports per node)
- Power Supply: 2x hot-swap/redundant 1+1 1600W/2000W; or 2x non-redundant 1100W
- Hot-Swap Components Power supplies, fans, SAS/SATA/NVMe storage devices; compute nodes are warm-swap
- Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
- Operating Systems Supported
- Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere. Visit lenovopress.com/osig for details.
- Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9x5, opt. service upgrades
CALL FOR BEST PRICE
