Acer Tower Server Dealers Chennai, Tamilnadu
479

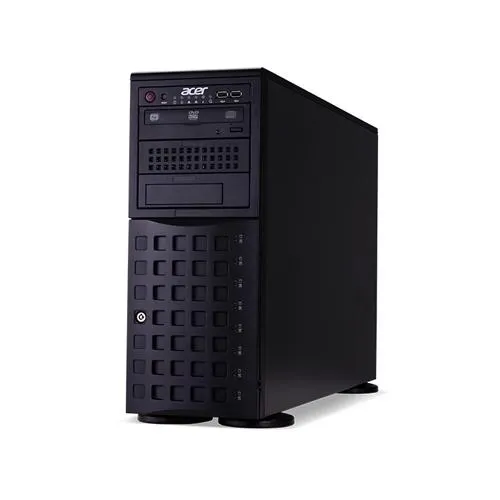

Acer Altos AT350 F3 Tower Server
- Processor type: Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 & v4 family
- Chipset: Intel C612 chipset
- Graphics: ASPEED 2400, 128 MB shared video memory, 16 MB dedicated
- Memory: 16x 288 pin DDR4 DIMM slots
- Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
- Expansion slots:
- 3x PCI E 3.0 x16 (Full height, Full length)
- 3x PCI E 3.0 x8 (Full height, Full length)
- Rear USB: 2x USB 3.0 + 2x USB 2.0
- Front USB: 2x USB 2.0
- I/O ports:
- USB Header: 2x 3.0, 2x 2.0, 1x Type A
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
- 1x VGA port
- Serial port: 1x COM/Serial
- AHCI SATA :
- 8x SATA3 (6Gbps) ports with RAID 0, 1, 5, 10
- 2x SATA3 powered ports that support SATA DOM
- Network controllers :
- Intel i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- 1x Realtek RTL8291F PHY (dedicated IPMI)
- IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED 2400
- Front Panel: Power On/Off button
- System Reset button
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED
- Power Fail LED
- 2x USB Ports
- Sub system availability:
- Power supply: 920W high efficiency ( Platinum Level ,94%+) AC-DC Redundant power supplies with PMBus and I2C
- System cooling:
- 3x 8cm hot swap redundant PWM cooling fans
- 2x 8cm hot swap exhaust Fans and air shroud
- Drive Bays
- 8x 3.5 Hot-swap SAS/SATA Drive Trays
- 2x 5.25 Peripheral Drive Bays
- 1x 5.25 Bay that fits 3.5" bay devices
- Chassis:
- Form factor: 4U Rackmountable/ Tower, Optional Rackmount Kit
- Dimensions (WxDxH): 7.0 (178mm) x 25.5 (648mm) x 17.2 (437mm)
- Weight:
- Net Weight: 56 lbs (25.6 kg)
- Gross Weight: 73.5 lbs (33.6 kg)
- Operating System support: Windows Server2008, Windows Server 2008 R2
- Windows Server 2012, Windows Server2012R2
- Red Hat Enterprise Linux 7, VMware ESXi 5.5U2
Acer Altos T310 F4 Tower Server
- Processor type: Intel Xeon E3-1200 v5/ v6 processors
- 6th and 7th Generation Intel Core
- 6th and 7th Generation Intel i3
- Celeron and Intel Pentium
- Chipset: Intel C232 chipset
- Graphics: Embedded controller
- 32 MB dedicated memory
- Number of processors: 1 (4 or 2 cores)
- Memory: 4 x DIMM slots (2 DIMMs per channel), Up to 64 GB, using unbuffered DDR4 ECC DIMM
- Expansion slots: PCIe 3.0 x8 (x16 connector)
- PCIe 3.0 x8 (x8 connector)
- PCIe 3.0 x4 (x8 connector)
- Onboard ports Front: 2 x USB 3.0 ports
- Rear: Video port, Serial port
- 2x Gigabit LAN port (RJ-45)
- 1x IPMI LAN port (RJ45)
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- SATA RAID1: Intel C232 chipset with RSTe RAID support, SATA RAID 0, 1, 5, 10 default
- SAS RAID: SAS RAID 0, 1, 5, 10 support via optional SAS RAID add on card
- Network controller: Dual ports Gigabit Ethernet controller Intel I210AT
- Security and service features:
- Power/reset button lockout, Optional TPM 1.2 , Administrator / user password , Power-on password , Setup password , Device boot control , BIOS write-protected
- Sub system availability:
- Power supply: 650 W 80 PLUS Gold-level fixed power supply
- System cooling: Active CPU heat sink
- Fixed system fan
- Storage: Up to 4 x 3.5 SATA or up to 4 x 3.5 SAS
- Optional half height SuperMulti optical drive
- Chassis:
- Form factor: Extended ATX (12” X 13”)
- Drive bays: 3x 5.25 bay
- 4x 3.5 or 2.5 how swap HDD
- Dimensions: 553 x 198 x 425 (mm) , 20.9 x 7.8 x 16.7
- Weight: 11.0 kg
- Operating System: support Microsoft Windows Server 2016
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Red Hat Enterprise Linux 7.1
- Novell SUSE Linux Enterprise Server 12
- VMware ESXi 6.0 update 1
- Server management Software:
- Embedded BMC controller with IPMI 2.0 compatibility
- Smart Console remote monitoring
- Acer Smart Server Manager
- Warranty: 1 year onsite intervention, and 2nd and 3rd year free spare parts standard warranty or choose extended warranties and services2
Acer Altos T110 F4 Tower Server
- Processor type: Intel Xeon E3-1200 v5 v6 processors
- 6th and 7th Generation Intel Core i3
- 6th and 7th Generation Intel Celeron and Intel Pentium
- Chipset: Intel C232 chipset
- Graphics Embedded controller: 32 MB dedicated memory
- Number of processors: 1 (4 or 2 cores)
- Memory: 4 x DIMM slots (2 DIMMs per channel), Up to 64 GB, using unbuffered DDR4 ECC DIMM
- Expansion slots: PCIe 3.0 x8 (x16 connector)
- PCIe 3.0 x8 (x8 connector)
- PCIe 3.0 x4 (x8 connector)
- Onboard ports Front: 2 x USB 2.0 ports
- Rear: Video port, Serial port, 2x Gigabit LAN port (RJ-45)
- 1x IPMI LAN port (RJ45) 2 x USB 3.0 ports, 2 x USB 2.0 ports
- SATA RAID1: Intel C232 chipset with RSTe RAID support, SATA RAID 0, 1, 5, 10 default
- SAS RAID: SAS RAID 0, 1, 5, 10 support via optional SAS RAID add on card
- BMC: Aspeed AST2400
- Network controller: Dual ports Gigabit Ethernet controller Intel I210AT
- Security and service features:
- Power/reset button lockout , Optional TPM 1.2/2.0 , Administrator / user password , Power on password , Setup password ,Device boot control , BIOS write-protected
- Sub system availability :
- Power supply: 300 W 80 PLUS Bronze level fixed power supply
- System cooling: Active CPU heat sink
- Fixed system fan
- Storage: Up to 4 x 3.5 SATA or up to 4 x 3.5 SAS
- Optional half height SuperMulti optical drive
- Chassis:
- Form factor: Micro ATX Tower
- Removable media bays: 2 x 5.25 bays
- Dimensions: 184 (W) x 425 (D) x 362 (H) mm (7.25 x 16.75 x 14.25 inches) with bezel
- Weight: 18.1 kg (40 lbs.)
- Operating System support: Microsoft Windows Server 2016
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Red Hat Enterprise Linux 7.1
- Novell SUSE Linux Enterprise Server 12
- VMware ESXi 6.0 update 1
- Server management utilities and applications:
- Embedded BMC controller with IPMI 2.0 compatibility
- Smart Console remote monitoring
- Warranty: 1 year onsite intervention, and 2nd and 3rd year free spare parts standard warranty or choose extended warranties and services
Acer Altos BrainSphereTM T110 F5 Tower Server
- Processor type: Intel Xeon E 2200(1) and Xeon E-2100 Processors
- Intel Gen 8th and 9th Core i3 series
- Number of processors: 1
- On board Devices: Chipset Intel C242
- SATA: Intel C242 controller for 6 SATA3 (6 Gbps) ports
- SATA RAID(2): Intel C242 chipset with RSTe RAID support for SATA RAID 0, 1, 5, 10
- SAS RAID(3): SAS RAID 0,1,5, 10 support via optional SAS RAID add on card
- IPMI: ASPEED AST2500 (2D Controller)
- Graphics: ASPEED AST2500 BMC (2D Controller)
- Network controller: Dual 1GbE LAN with Intel I210
- Memory: Memory slot 4 DIMM slots
- Memory type: DDR4 2666/2400/2133MHz ECC Unbuffered memory
- Expansion slots: PCIe: 1 x PCI-E 3.0 x8 (in x16), 2 x PCI-E 3.0 x4 (in x8)
- M.2: 1 M.2 2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports:
- Front I/O ports: 2 x USB 3.2 Gen1, 2 x USB 2.0
- Rear I/O ports: 2 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x VGA port
- 2 x RJ45 Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- 1 x COM port
- On board port: 1 x USB 3.2 Gen1 Type A
- Management & Security:
- Management: IPMI 2.0, KVM with dedicated LAN
- Smart Console remote monitoring (Optional)
- Smart Server Manager (Optional)
- TPM: 1 TPM Header (optional for TPM module)
- Drive Bays:
- Media bays: 2 x 5.25 bay
- Storage bays: Up to 4 x 3.5 Bay (Max)
- Note: Need additional 2nd 3.5 bracket to support 3rd and 4th SATA HDD
- Power Supply: 500W (80Plus Bronze) Fixed
- System Cooling: Active Heat-Sink with Fan, Fixed System Fan
- Form Factor: Tower
- Dimension (D x W x H): 425 x 184 x 362 mm approximately
- Software: Altos BrainSphereTM AI Development Platform API
- Opearting System: Microsoft Windows Server 2019 / 2016, Red Hat Enterprise Linux
Acer Altos BrainSphereTM T310 F5 Tower Server
- Processor type: Intel Xeon E 2200(1) and Xeon E 2100 Processors
- Intel Gen 8th and 9th Core i3 series
- Number of processors: 1
- On board Devices :
- Chipset: Intel C242
- SATA: 6 SATA3 (6 Gbps) ports (via Intel C242 controller)
- SATA RAID(2): Intel C242 chipset with RSTe RAID support for SATA RAID 0, 1, 5, 10
- SAS RAID(3): SAS RAID 0,1,5, 10 support via optional SAS RAID add on card
- IPMI: ASPEED AST2500 (2D Controller)
- Graphics: ASPEED AST2500 BMC (2D Controller)
- Network controller: Dual 1GbE LAN with Intel I210
- Memory: Memory slot 4 DIMM slots
- Memory type: DDR4 2666/2400/2133MHz ECC Unbuffered memory
- Expansion slots PCIe: 1 PCI-E 3.0 x8 (inx16), 2 PCI-E 3.0 x4 (in x8)
- M.2:1 M.2 2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports:
- Front I/O ports: 2 x USB 3.2 Gen1
- Rear: I/O ports
- 2 x RJ45 Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- 1 x COM port
- 2 x USB 3.2 Gen 1
- 2 x USB 2.0
- 1 x VGA port
- On board port: 1 x USB 3.2 Gen1 Type A
- Management & Security:
- Server Management: IPMI2.0, KVM with dedicated LAN, Altos Smart Server Manager
- Smart Console remote monitoring
- System Security: 1 TPM Header (Optional TPM 2.0 module)
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Media bays: 3 x 5.25 bay
- Storage bays: 4 x 3.5 hot swappable bays
- Power supply: 650W (80Plus Gold) fixed
- 550W (80Plus Platinum) 1+1 redundant power supply
- Form factor: Tower
- Dimensions (D x W x H): 553 x 198 x 425 mm approximately
- Tested OS: Window Server 2019, 2016, Red Hat Enterprise Linux 7.6
Acer Altos BrainSphereTM T350 F4 Tower Server
- Processor type: 2nd Generation Intel Xeon Scalable Processors
- Number of processors: 2
- On board Devices:
- Chipset: Intel C621
- SATA: 14 SATA3 (6 Gbps) ports (via Intel C621 controller)
- SATA RAID1: Intel C621 chipset with RSTe RAID support for SATA RAID 0,
- 1, 5, 10 (supports Windwos OS Only)
- IPMI: ASPEED AST2500
- Graphics: ASPEED AST2500 BMC
- Network controller: Dual 1GbE LAN with Intel® X722
- Memory Memory slot 16 DIMM slots
- Memory type: DDR4 2933/2666 ECC Registered memory
- Up to 2TB Intel Optane DC Persistent Memory in memory
- mode (Cascade Lake only)
- Expansion slots PCIe: 4 PCI-E 3.0 x18, 2 PCI-E 3.0 x8
- M.2 1 M.2 2260/2280/22110 slot (M-key, w/PCIe 3.0 x4)
- I/O ports Front I/O ports: 2 USB 3.0 ports
- Rear I/O ports: 1 VGA port
- 1 COM port
- 3 RJ45
- 2 USB 2.0 ports
- 2 USB 3.0 ports
- Management & Security :
- Server Management: IPMI2.0, KVM with dedicated LAN
- Altos Smart Server Manager
- Smart Console remote monitoring
- System Security: 1 TPM Header, Optional TPM 2.0 module
- Software/Utility: Altos BrainSphereTM AI Development Platform API
- Drive Bays: Storage bays 8 3.5 SAS/SATA hot swappable bays for HDD/SSD
- Media bays: 3 5.25 media bays
- Power supply: 550W/800W/1200W (80Plus Platinum) 1+1 redundant power supply (for option)
- Form factor: Tower or Rackmount (via rackmount kit)
- Dimensions (D x W x H): 620 x 220 x 425 mm approximately
- Tested OS: Window Server 2019, 2016, Red Hat Enterprise Linux 7.3
