Brand: Tp Link

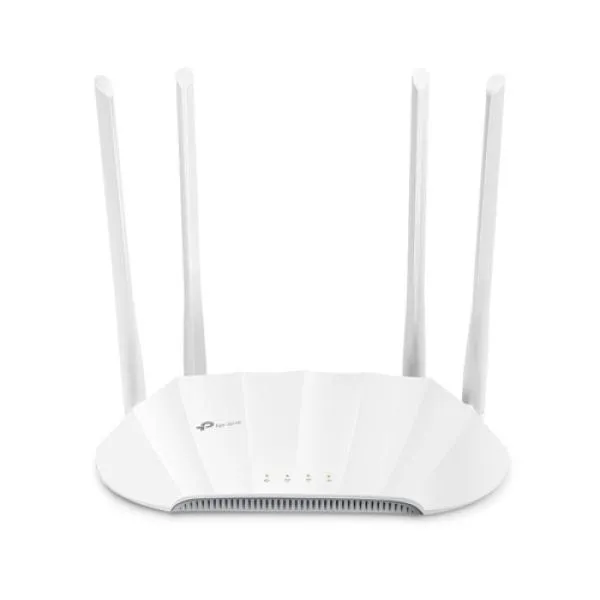

Product: TL-WA1201 AC1200 Wifi Access Point
AC1200 Dual-Band Wi-Fi : Fast Wi-Fi 5 speed in both 5 GHz and 2.4 GHz.
Interface: 1× 10/100/1000 Mbps Ethernet Port(Supports Passive PoE)
Button:Power On/Off Button, WPS Button, Reset Button
External Power Supply:12V/1.5A
Wireless Standards:IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Antenna 4 Fixed High Performance Antennas
Frequency:2.4 GHz and 5 GHz
Signal Rate Version1/2: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Version3: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz
Reception Sensitivity(5 GHz):
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
Reception Sensitivity (2.4 GHz):
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Wireless Modes Access Point, Range Extender, Client, Multi-SSID
Wireless Functions:Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP Server, DHCP Client List
Quality of Service:WMM
Advanced Features Captive Portal
Transmission Power:CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
FCC: <30dBm(2.4GHz&5GHz)
Protocol Support IPv4, IPv6
Dimensions ( W x D x H ):8.9 × 5.7 × 1.5 in (225×145.5×37 mm)
