Brand: Mimaki

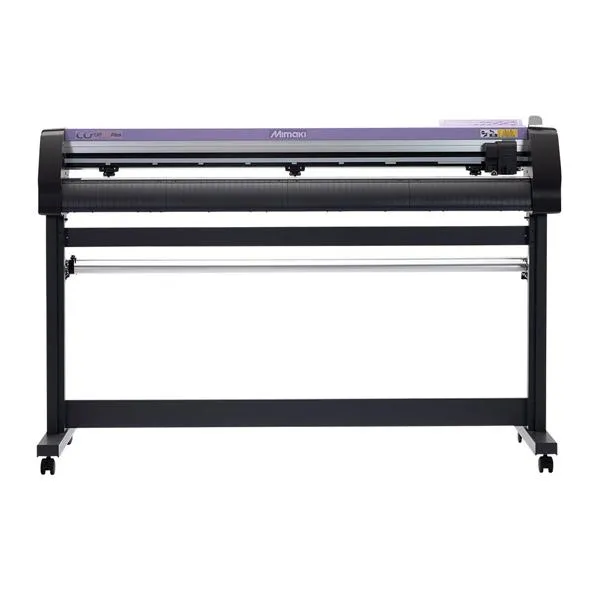

Model No: CG 75FXII Plus Cutting Plotter
Acceptable sheet width: 90mm~1,040mm (3.54"~40.9")
Rolled media weight: 18kg (40 lb) or less
Roll outsied diameter : ?200mm (7.87") or less
Effective cutting area *1: 760mm x 51m (29.9" x 167')
Maximum auto cutting width *2: 870mm (34.2")
Maximum cutting speed: 100cm/s (39.3"/s)
Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
Mechanical resolution: 5µm (0.0002")
Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
Accuracy assurance range (Repeatability): 760mm x 10m (29.9" x 32.8')
Max. pressure: 500g
Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
Type of command: MGL-II c / I c1
Interface: RS-232C, USB
Receiver buffer size: 30MB Standard (20MB when in sorting)
Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
Power requirement: AC100V~240V?1A 50/60Hz
Power consumption: 100W or less
Dimensions (WxDxH): 1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9")
Weight: 47kg (104 lb)
