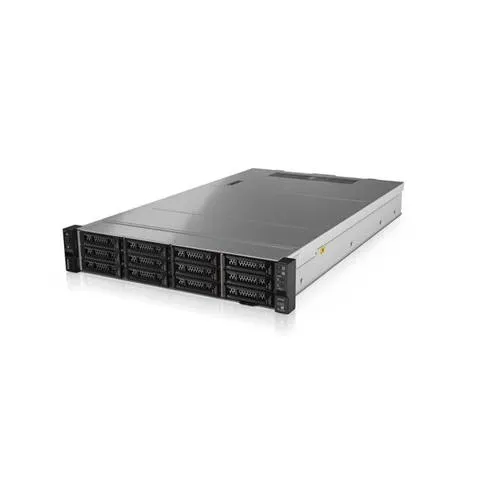

LENOVO THINKSYSTEM SR550 RACK SERVER
LENOVO THINKSYSTEM SR550 RACK SERVER Best Price & Specification
Form Factor/Height
2U rack/server
Processors
Up to 2 second-generation Intel® Xeon® Platinum processor, up to 125W
Memory
Up to 768GB in 12x slots, using 64GB DIMMs; 2666MHz / 2933MHz TruDDR4
Drive Bays
Up to 16x hot-swap 2.5" or 12x hot-swap 3.5” or 8x simple-swap 3.5"; plus up to 2x mirrored M.2 boot (optional RAID 1)
HBA/RAID Support
Software RAID standard (up to 8 ports); up to 16-port HBAs/or HW RAID with flash cache
Security/Availability
Lenovo ThinkShield, TPM 1.2/2.0; PFA; Hot-swap/redundant drives and PSUs; front-access diagnostics via dedicated USB port; optional redundant cooling
Power supply
2x hot-swap/redundant (Energy Star 2.1): 550W/750W 80 PLUS Platinum; or 750W 80 PLUS Titanium
Systems Management
XClarity Controller, XClarity Administrator, XClarity Integrator plugins, and XClarity Energy Manager
Form factor
Rack (1U), (3.5 inches/8.89 cm)
System fans
4 system fans ship standard; Non-hot plug, Non-redundant
OSes Supported
Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for details
warranty
1-year and 3-year customer replaceable unit and onsite service, next business day 9x5
