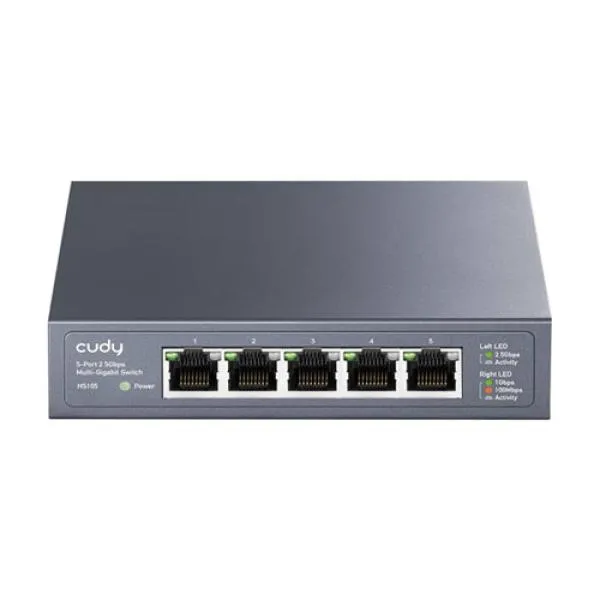

Cudy HS105 Unmanaged Switch

Brand: Cudy

Model No: Cudy HS105 Unmanaged Switch

2.5G RJ45 Ports: 5

Shielded RJ45 Port: True

LED: Power, Speed/Link/Act of Each Ethernet Port

Power Interfaces: DC Jack

Copper Speed and Distance: Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at 2.5 Gbps

MAC Address Table: 8192

Max Switching Capacity: 25 Gbps

Max Forwarding Rate: 18.6 Mpps

Jumbo Frame: 15 KB

Packet Buffer: 4 Mbit

Basic Power Saving: True

Power Methods: DC

Power Input: 12V?1A

Power Adapter in the Box: Input: 100-240V~, 50/60Hz, Output: 12V?1A

Max Power Consumption: 10.5W

Idle Power Consumption: 4.7W

802.3 Protocols: 802.3x Flow Control, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3bz 2.5GBASE-T and 5GBASE-T

L2 Features: IGMP Snooping, Loop Prevention, Loop Detection

Grounding Methods: Grounding Point

Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)

Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)

Operating Humidity: 0% ~ 100% non-condensing

Storage Humidity: 10% ~ 95% non-condensing

Casing Material: Metal

Dimension: 119×85×28 mm, 4.69×3.35×1.1 inches

Weight: 267.0 g (9.42 oz.)
