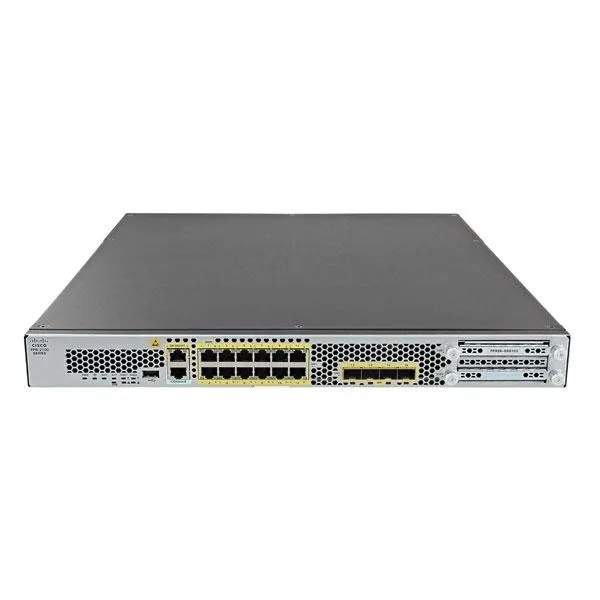

Cisco Firepower 2130 Series Firewall Specification and Datasheet
Brand Name: Cisco
Model Name: Cisco Firepower 2130 Series Firewall
Throughput: FW + AVC: 4.75 Gbps
Throughput: AVC + IPS: 4.75 Gbps
Maximum concurrent sessions, with AVC: 2 million
Maximum new connections per second, with AVC: 24,000
IPSec VPN Throughput (1024B TCP w/Fastpath): 1.5 Gbps
Maximum VPN Peers: 7500
Cisco Firepower Device Manager (local management): Yes
Scalability: VPN Load Balancing
Integrated network management ports: 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)
Serial port: 1 x RJ-45 console
USB: 1 x USB 2.0 Type-A (500mA)
Storage: 1x 200 GB, 1x spare slot (for MSP)
Fans: 1 hot-swappable fan module (with 4 fans)4
Noise: 56 dBA @ 25C 77 dBA at highest system performance.
Rack mountable: Yes. Mount rails included (4-post EIA-310-D rack)
Weight: 19.4 lb (8.8 kg)
