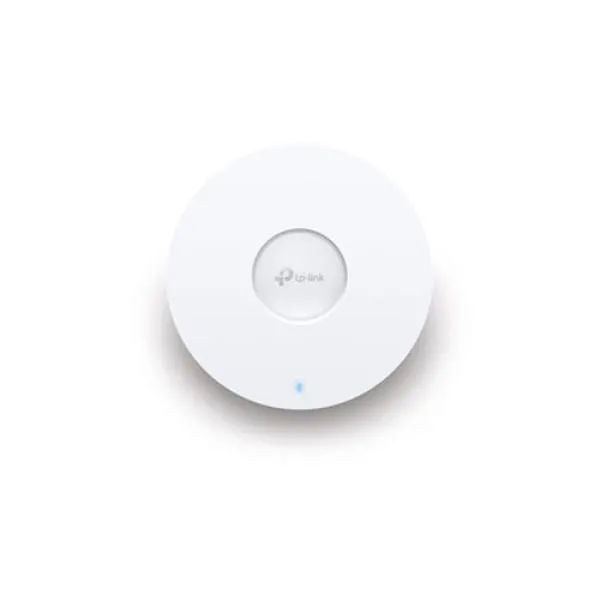

TPLink EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point

Brand: TPLink

Product: EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point

Interface: 1× Gigabit Ethernet (RJ-45) Port

Button: Reset

Power SupplyV2, V2.2:- 802.3at PoE; 48 V Passive PoE; 12 V / 1.5 A DC (Power Adapter included)

Power Supply V3: 802.3af/at PoE; 12V/1A DC (Power Adapter included)

Max. Power Consumption V2 and V2.2: EU: 13.7 W (For PoE); 12.3 W (for DC); US: 14.2 W (For PoE); 12.8 W (for DC)

Internal Omni Antenna 2.4 GHz: 2× 4 dBi

Internal Omni Antenna 5 GHz: 2× 5 dBi

Mounting: Ceiling /Wall Mounting (Kits included); Junction Box Mounting

Concurrent Clients: 250+

Wireless Standards: IEEE 802.11ax/ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 5 GHz: Up to 1201 Mbps

Signal Rate: 2.4 GHz: Up to 574 Mbps

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: Local/Remote Syslog

Web-based Management: HTTP/HTTPS

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)

Dimensions ( W x D x H ): V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
