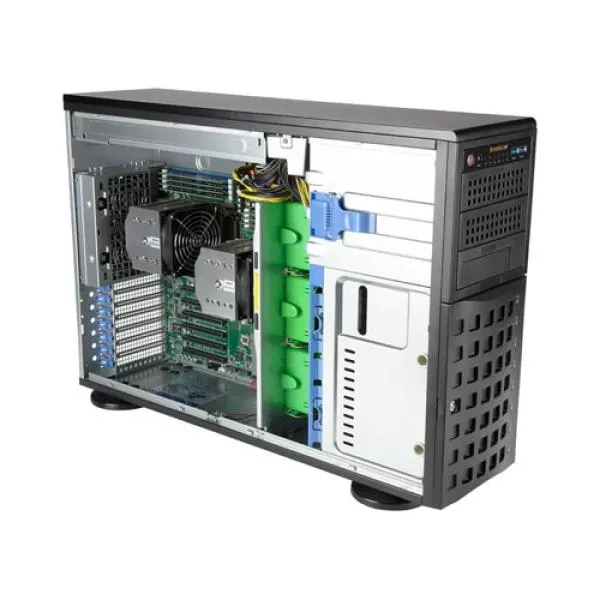

Supermicro SYS 740A T Workstation

Brand: Supermicro

Model No: Supermicro SYS 740A T Workstation

Form Factor: Mid Tower

Processor: Dual Socket P+ (LGA-4189), 3rd Gen Intel® Xeon® Scalable processors

Core Count: Up to 40C/80T; Up to 60MB Cache per CPU

Max GPU Count: Up to 2 double-width or 2 single-width GPUs

Supported GPU: NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, RTX 5000

Memory: Slot Count: 16 DIMM slots, Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM, Supports Intel Optane persistent memory 200 series

SATA: SATA (6Gbps) ; RAID 0/1/5/10 support

Chipset: Intel C621A

Network Connectivity: 2 RJ45 1GbE

Drive Bays / Storage: Total 8 bays, 4 front hot-swap 3.5" SAS*/SATA drive bays, 4 front hot-swap 3.5" NVMe*/SATA drive bays

LAN: 2 RJ45 1 GbE LAN ports (IPMI shared on LAN port 1)

USB: 4 USB 3.2 Gen1 ports(rear), 2 USB 3.2 Gen1 ports(front)

Video: 1 VGA port

DOM: 2 SATA DOM (Disk on Module) ports

Audio: 7.1 HD Audio

Fans: Up to 5x 8cm heavy duty fans with optimal fan speed control

Expansion Slots: 5 PCIe 4.0 x16 FHFL slots, 1 PCIe 4.0 x8 FHHL slot

Power Supply: 1x 1200W Redundant Titanium Level (96%) power supply

Color: Black

Dimensions: 24.6" (H) x 14" (W) x 31.3" (D)

Weight: 59 lbs (26.76 kg)

Warranty: 1 Year Warranty
