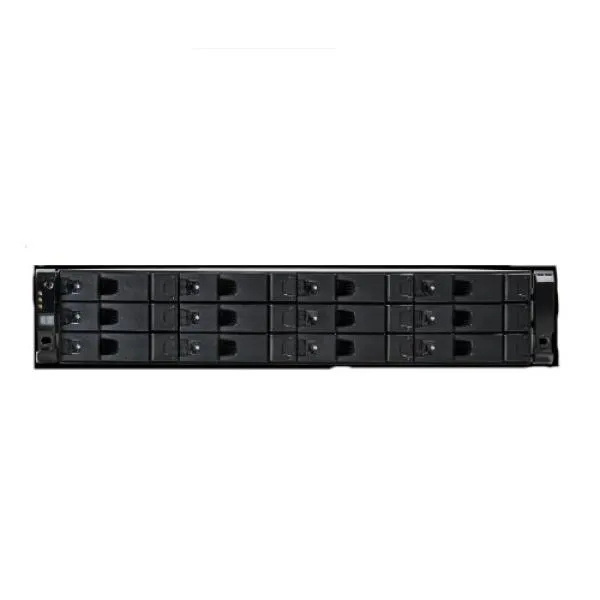

Seagate Exos AP 2U12 Storage Systems

Brand: Seagate

Model No: Seagate Exos AP 2U12 Storage

Form factor: 2U

Controllers: One or two AP-BV-1 Controllers, redundancy optional

CPU: AMD SP3 7292P EPYC CPU (12,16 Core)

Memory: 4 x DDR4 - 3,200 MHz DIMM slots - 32,64,128 GB DIMM support

Internal Boot Drive: Single or Dual M.2 NVMe SSD for Redundant Boot/Logs

Onboard I/O: On-board NVidia CX4 Dual Port 10/25GbE I/O, / 2x 1GbE onboard connections (Management/Data)

PCIe Expansion: One low-profile, half-length PCI Express Gen 4 x16 Host Interface Slot One OCP v2.0 Gen 4x8 host interface slot

Storage Infrastructure: Gen 4 x8 PCIe Lanes to 12G Broadcom SAS Controller, Dual 12G x4 Mini-SAS HD External Expansion Ports

Inter-Controller Link: PCI Express Gen 3 x16 NTB Inter-controller Interface

Redundant Path: Yes (SAS only)

Management/Status Reporting: Redfish API + IPMI & SES

Device Support: 12 Gb/s SAS drives and 6 Gb/s SATA drives

Max Drives Per Enclsoure: up to 12 × 3.5-in LFF or 2.5 in SFF drives

Hot-Swappable Components: HDDs and SSDs (in chassis data slots), power supply and cooling modules units (PCU), and controllers

Input Power Requirements: 100V-240V AC 60 Hz/50 Hz

Max Power Output per PSU: 764W

Power Supply: Power Efficiency 115 VAC/60 Hz | 230 VAC/50 Hz, Power Factor Conditions (PFC)

Dimension (Height x Width x Depth): 87.9 mm x 443 mm x 630 mm

Weight: 32 Kg
