Brand: Promise

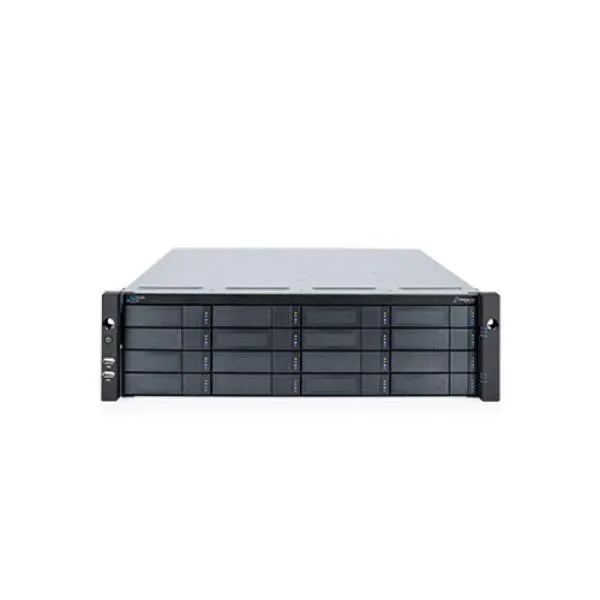

Product: Promise VTrak N1616 3U Storage
Form Factor: 3U
Drive Support: 3.5" & 2.5 SATA 6Gb/s HDD/SSD, U.2 NVMe
Processor: Intel CPU i7-8700. 3.2GHz. 12MB Cache.65W 6 Cores
Memory: Default 64GB (Maximum: 128GB)
Max HDDs: 16
Memory Slot: 4 x Long-DIMM DDR4
Drive Bays: 16 x 3.5-inch
Boost: PROMISE TierBoost (U.2 NVMe/SSD/HDD Tiering)
RAID Level: RAID 0, 1, 5, 6, 10, 50, 60
Hot Swap: Yes
Supported OS: Windows 10 and macOS 10.15 above
Management Tool: WebPAM Insight
Network Protocol: CIFS / NFS / FTP / WebDAV
Max Storage Capacity: 18TB x 16
Concurrent CIFS Session: 256
Throughput: With 10 SSD TierBoost
Gigabit (RJ45): 2
LAN Port: 10G Base-T : 8-Port / 10G SFP+ : 8-Port / 25G SFP28 : 4-Port
USB Port: USB2.0 x 2 (Front) & USB3.2 x 4 (Back)
Graphic Port: HDMI x 1; VGA x 1
Serial Port: Yes
Dimension: 131mm x 447 mm x 503mm
Weight: 34Kg (with HDD)
AC Input(550W x 2) 100 ~ 240V AC, 47 ~ 63Hz
Power Consumption: 110V, Power Consumption: 306W 230V, Power Cosnumption: 296W
fan: 4500RPM.12V
Warranty: 3-years standard warranty, optional extended warranty, and on-site parts replacement program (PROMISE ServicePlus) available.
Support: 24/7 Promise eSupport Portal (support.promise.com), optional 24/7 phone and email support available
