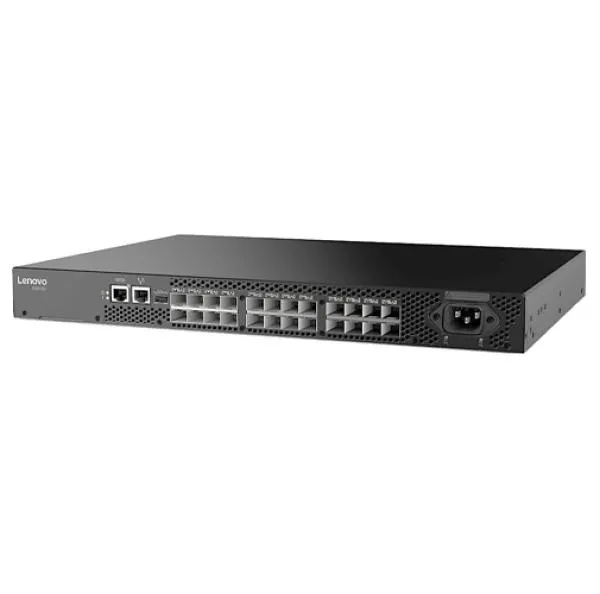

Lenovo ThinkSystem DB610S FC SAN Switch Specification and Datasheet
Brand: Lenovo
Model Name: Lenovo ThinkSystem DB610S FC SAN Switch
Form factor Standalone or 1U rack mount
Ports:24x SFP+ physical ports. The number of ports that are activated is model dependent and can be upgraded with additional licenses - see the Port activation licenses section.
Media types:
32 Gb FC SFP+ transceivers: short wavelength (SWL), long wavelength (LWL)
16 Gb FC SFP+ transceivers: SWL, LWL, extended long wavelength (ELWL)
Port speeds:
32 Gb FC SFP+ transceivers: 32/16/8 Gbps auto-sensing
16 Gb FC SFP+ transceivers: 16/8/4 Gbps auto-sensing
FC port types:
Full Fabric mode: F_Port, M_Port (Mirror Port), E_Port, D_Port (Diagnostic Port)
Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types:Unicast (Class 2 and Class 3), multicast (Class 3 only), broadcast (Class 3 only)
Classes of service:Class 2, Class 3, Class F (inter-switch frames)
Standard features:Full Fabric mode, Access Gateway, Advanced Zoning, Fabric Services, Adaptive Networking, Advanced Diagnostic Tools
Optional features:Enterprise Bundle (ISL Trunking, Fabric Vision, Extended Fabric)
Performance:Non-blocking architecture with wire-speed forwarding of traffic:
4GFC: 4.25 Gbit/sec line speed, full duplex
8GFC: 8.5 Gbit/sec line speed, full duplex
16GFC: 14.025 Gbit/sec line speed, full duplex
32GFC: 28.05 Gbit/sec line speed, full duplex
Aggregated throughput: 768 Gbps
Up to 0.9 µs local switching latency
Scalability:
Maximum number of switches in the fabric: 239
Maximum frame size: 2,112-byte payload
Maximum number of frame buffers per switch: 2,000
Maximum number of ports per ISL trunk: 8x SFP+ (ISL Trunking license is included in the Enterprise Bundle)
Cooling:Four fixed fans with N+1 cooling redundancy. Non-port to port side airflow
Power supply:One fixed 150 W AC (100 - 240 V) power supply (IEC 320-C14 connector)
Hot-swap parts:SFP+ transceivers
Management ports:One 10/100/1000 Mb Ethernet port (UTP, RJ-45); one RS-232 port (RJ-45); one USB port (for additional firmware/log/configuration files storage)
Management interfaces:Web-based GUI (Web Tools); Command Line Interface (CLI); SMI-S; SNMP; REST API. Optional Brocade SANnav Management Portal and SANnav Global View
Security features:Secure Socket Layer (SSL); Secure Shell (SSH); Secure Copy (SCP); Secure FTP (SFTP); user level security, Role-based Access Control (RBAC); LDAP, RADIUS, and TACACS+ authentication; access control lists (ACLs)
Hardware warranty:
Machine type 7D8P: Lifetime non-transferrable warranty, customer-replaceable unit with 9x5 next business day parts delivered
Service and support:Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services
Firmware entitlement:
Machine type 7D8P: Lifetime firmware entitlement and support license are standard.
Dimensions:Height: 43 mm (1.7 in.); width: 429 mm (16.9 in.); depth: 307 mm (12.1 in.)
Weight: Empty: 4.2 kg (9.3 lb); Fully configured: 5.8 kg (12.7 lb)
