Brand: iXsystems

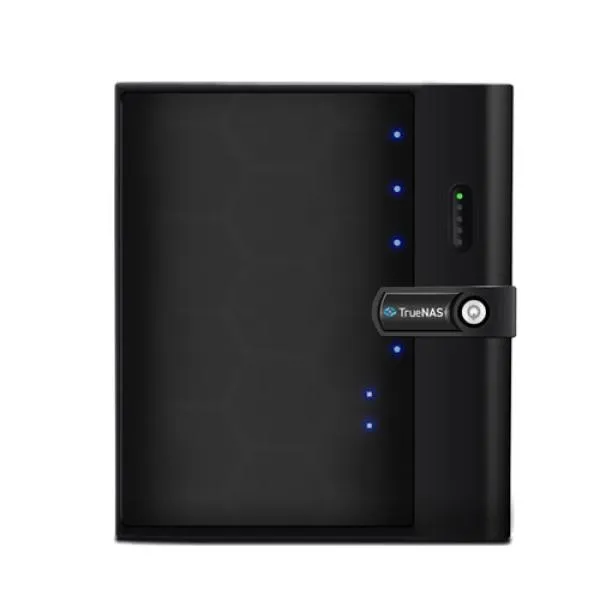

Model No: iXsystems TrueNAS Mini X Storage
Chassis: 5+2 Bay Enclosure – Super Quiet Design
Drive Bays: 5 x SATA 3.5” Hot-Swappable Drive Bays(Optional 3.5? to 2.5? adaptors available), 2 x SATA 2.5” Hot-Swappable SSD Bays
Maximum Raw Capacity: Up to 90 TB
CPU: Quad-core C3558 Intel CPU
Memory: 16 GB DDR4 with ECC (Upgradeable to 32GB)
RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
Network: Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000), Dedicated RJ45 IPMI Port (Remote Hardware Management)
USB Ports: 2 x USB 2.0 Ports (Front), 1 x USB 3.0 Port (Rear)
Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
PCIe Expansion: N/A
Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
Power Consumption (Maximum): Diskless-24W With drives: 84W
Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
User Control Interface: Web Browser and Remote Hardware Management (IPMI)
Accessories: Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable
Dimensions(W x D x H): 8.25? x 10.5? x 9.5? / 210 x 267 x 241mm
Weight: 13lbs / 5.9Kg
Warranty: 1 Year Warranty
