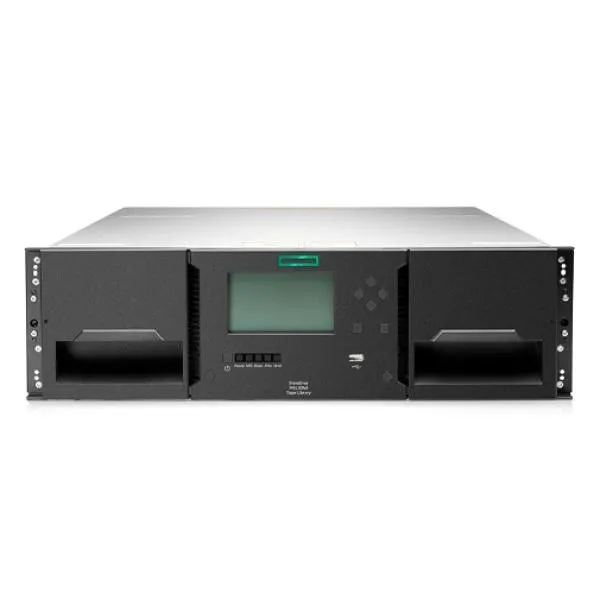

HPE Storage MSL3040 Scalable Base Module

Drive type:

LTO-9 Ultrium 45000

LTO-8 Ultrium 30750

LTO-7 Ultrium 15000

Available with SAS and Fibre Channel interfaces

Capacity: Up to 28.8 PB, maximum assuming 640 slots with LTO-9 compressed 2.5:1

Transfer rate: 300 MB/s

Number of cartridge slots: Scale from 40 to 640 slots

40 slots for the base module

40 slots per each expansion module

Maximum drives per enclosure: 3 drives per module to a total of 48 drives

Host interface: 8 GB/s Fibre Channel

6 GB/s SAS (LTO-7, LTO-8)

12 GB/s SAS (LTO-9)

Encryption capability: AES 256-bit

Form factor: 3U per module to a maximum of 48U

Warranty: Hewlett Packard Enterprise provides a 1-year, next business day on-site, part exchange, limited warranty for the MSL3040 Tape Library and its components including drives, plus 9x5 phone support for the duration of the warranty.

Weight: The weight of each library varies based on the type and number of LTO tape drives and LTO media contained in the configuration (The weight of each library varies based on the type and number of LTO tape drives and LTO media contained in the configuration)

Dimensions: 13.3 x 48.2 x 87.3 cm (HxWxD) (5.24 x 18.98 x 34.27 in (HxWxD))
