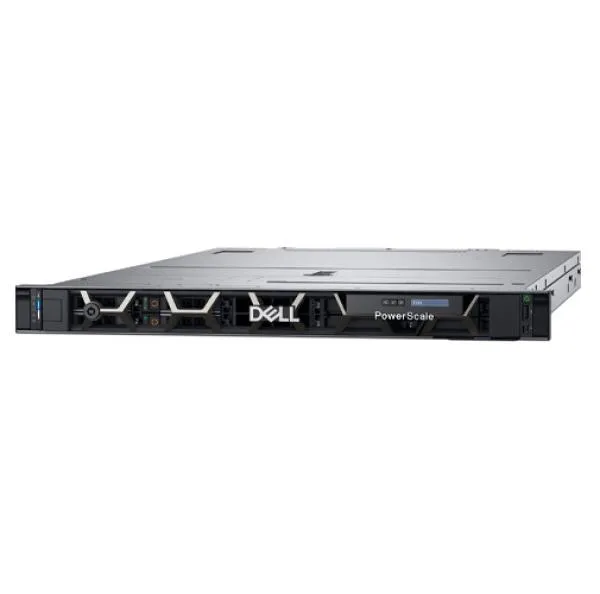

Dell PowerScale F210 All Flash NAS Platforms

Processor:

2 Intel Xeon CPUs, 2GHz/10C

Raw node capacity:7.7 TB - 61 TB

Nodes per cluster:3 up to 252

Raw cluster capacity:23 TB to 15 PB

Functional:

All-flash, all-NVMe NAS

Scale-out storage

Memory:

128 GB DRAM DDR5 ECC

System Overview:

Base enclosure

1U Form Factor

4x2.5” NVMe SSD drives

Expansion Capacity:

Scale-out architecture

Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.

Expansion enclosures:

Minimum cluster size: 3 nodes

Maximum cluster size: 252 nodes

Connectivity:

Front End Networking (per node):

Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)

Dual port 100G NIC supporting 40G or 100G connections

Infrastructure Networking (per node):

Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28)

Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)

Software:

OneFS 9.2.1 or later. Upgrades are non-disruptive

PowerScale OneFS distributed file system creates a cluster with a single file system and

Physical:

Base unit:1U Form Factor

Height: 42.8 mm / 1.68 in.

Width: 482 mm / 18.97 in.

Depth: 822.88 mm / 32.39 in. (with bezel)

Weight: 20.3 kg / 44.8 lb

Power:800 W

Dual redundant power supplies

Max Power consumption

(200-240V per node)

@25°C – 286 Watts

@35°C – 309 Watts

Typical Thermal rating:

@25°C – 975 BTU/hr

@35°C – 1054 BTU/hr
