Brand: Aadona

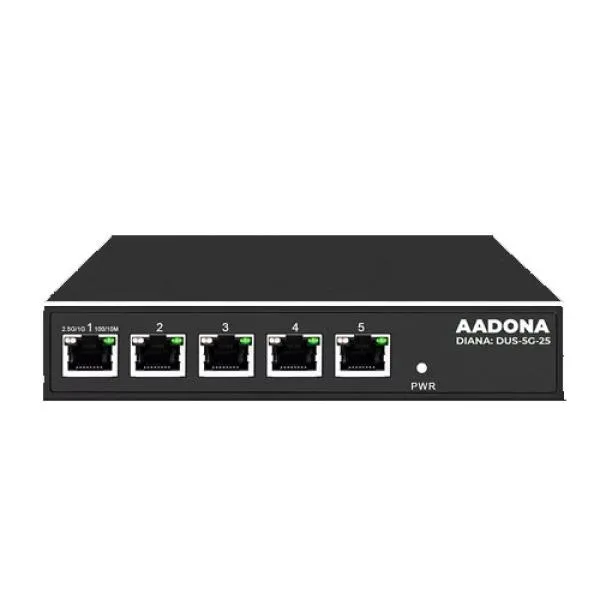

Product: DIANA DUS-5G-25 Unmanaged Non PoE Switch
Model Name: DUS-5G
Product Family: Diana
Port: 5 Port 10/100/1000M Unmanaged Switch
10M/100M/1000M RJ45 Port: 5
10M/100M/1000 Uplink RJ45 Port: NA
10M/100M/1000M SFP Uplink Port: NA
Total Ports: 5
Switching Bandwidth: 10 Gbps
Packet Forwarding: 7.4 Mpps
Exchange Mechanism: Store & Forward
MAC Address: 2K
System Buffer: 2.5M
Jumbo Frames: 9K
Operating Temperature: -10-55?
Operating Humidity: 10%?90% RH Non-condensing
Storage Temperature: -40??75?
Storage Humidity: 5%?90% RH Non-condensing
Product Dimensions (H) x (W) x (D) mm: 160mm*112mm*31mm
Weight: 0.4kg
FAN Less: Yes
Power Input: External Power Supply DC 12V, 0.5A
Power Consumption: ?6W
IEEE 802.3X: Yes
IEEE 802.3i 10BASE-TX: Yes
IEEE 802.3u 100BASE-TX: Yes
IEEE 802.3x Flow control: Yes
Normal Mode: Up to 100 meters
Ethernet 10Mbps half-duplex: Yes
Fast Ethernet 100Mbps half-duplex: Yes
Gigabit Ethernet 1000Mbps half-duplex: Yes
Gigabit Ethernet 2000Mbps full-duplex: Yes
10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
Lightning Protection Level: 3KV 8/20us; IP30
Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)
